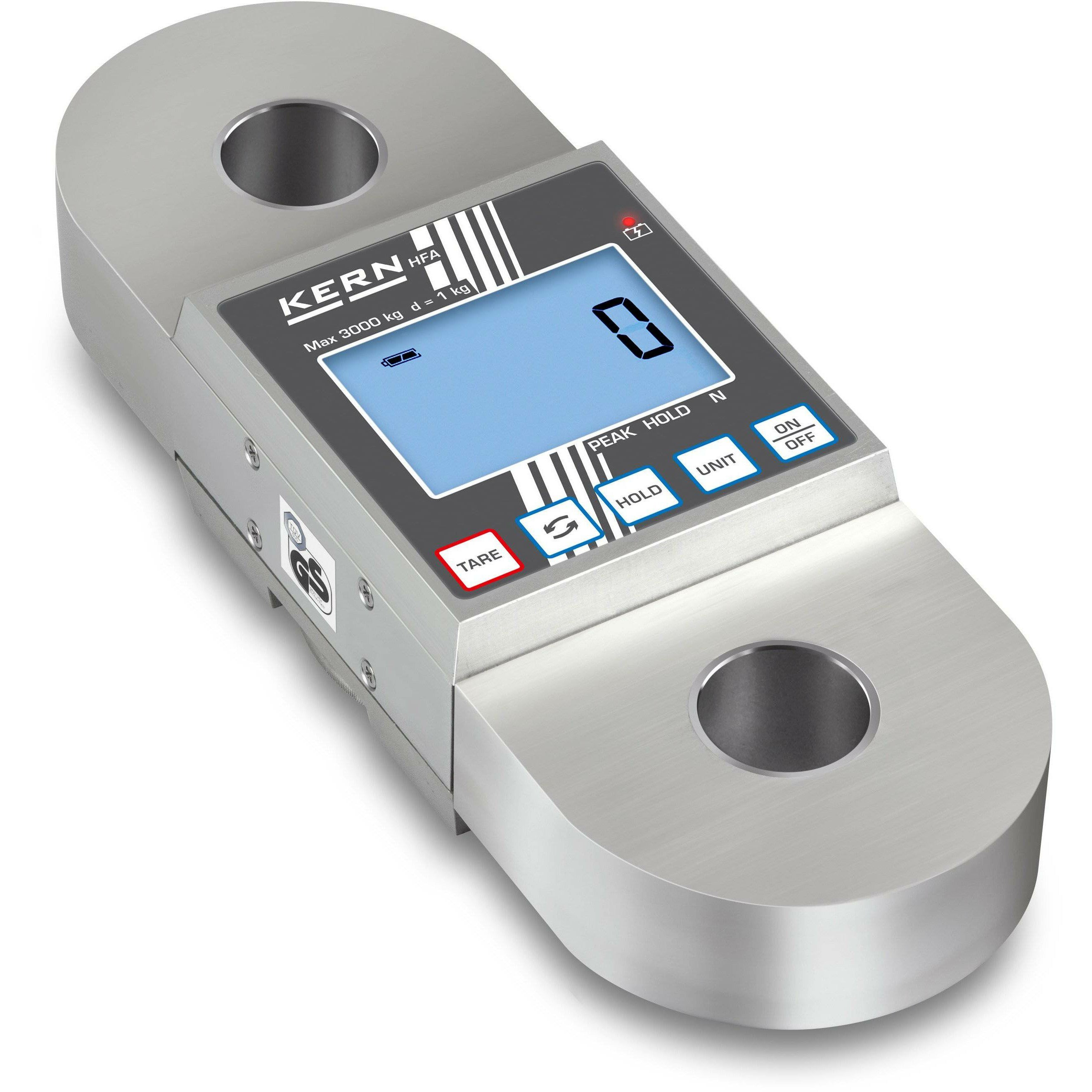

Kern HFA hanging scales, with capacities from 600 kg to 10000 kg. The Kern HFA hanging scales, are a compact crane scale with integrated display can also be used for tensile force measurement. They are available with an optional calibration certificate and other accessories.

  • With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments/Breakage resistance) and EN 61010-1 (Electrical safety)
  • With its high-quality finish, low weight and compact dimensions, this crane scale (tensile force gauge) is an essential device for industrial use, on building sites, in freight centres, ports etc.
  • Because of its compact design it is also ideally suited for installation in systems where space is limited, etc.
  • Ideally suited for determining weight quickly while loading and unloading
  • Peak load display (peak hold)
  • Hold function: For easy reading of the weighing result, the display can be "frozen" in different ways. Either automatically when the weighing value remains unchanged or manually by pressing the Hold key
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Material and design of housing/load support, models with
    [Max] ≤ 3 t: aluminium/stainless steel bearing
    [Max] > 3 t: steel/steel

Click here for accessories

Model Weighing capacity Readability
[Max] [d]
HFA 10T-3 10000 kg 5000 g
HFA 1T-4 1000 kg 500 g
HFA 3T-3 3000 kg 1000 g
HFA 5T-3 5000 kg 2000 g
HFA 600K-1 600 kg 200 g



Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Weighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Battery operation: The battery type is specified for each device.Rechargeable battery pack: rechargeable setUniversal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Kern HFA Hanging Scales
