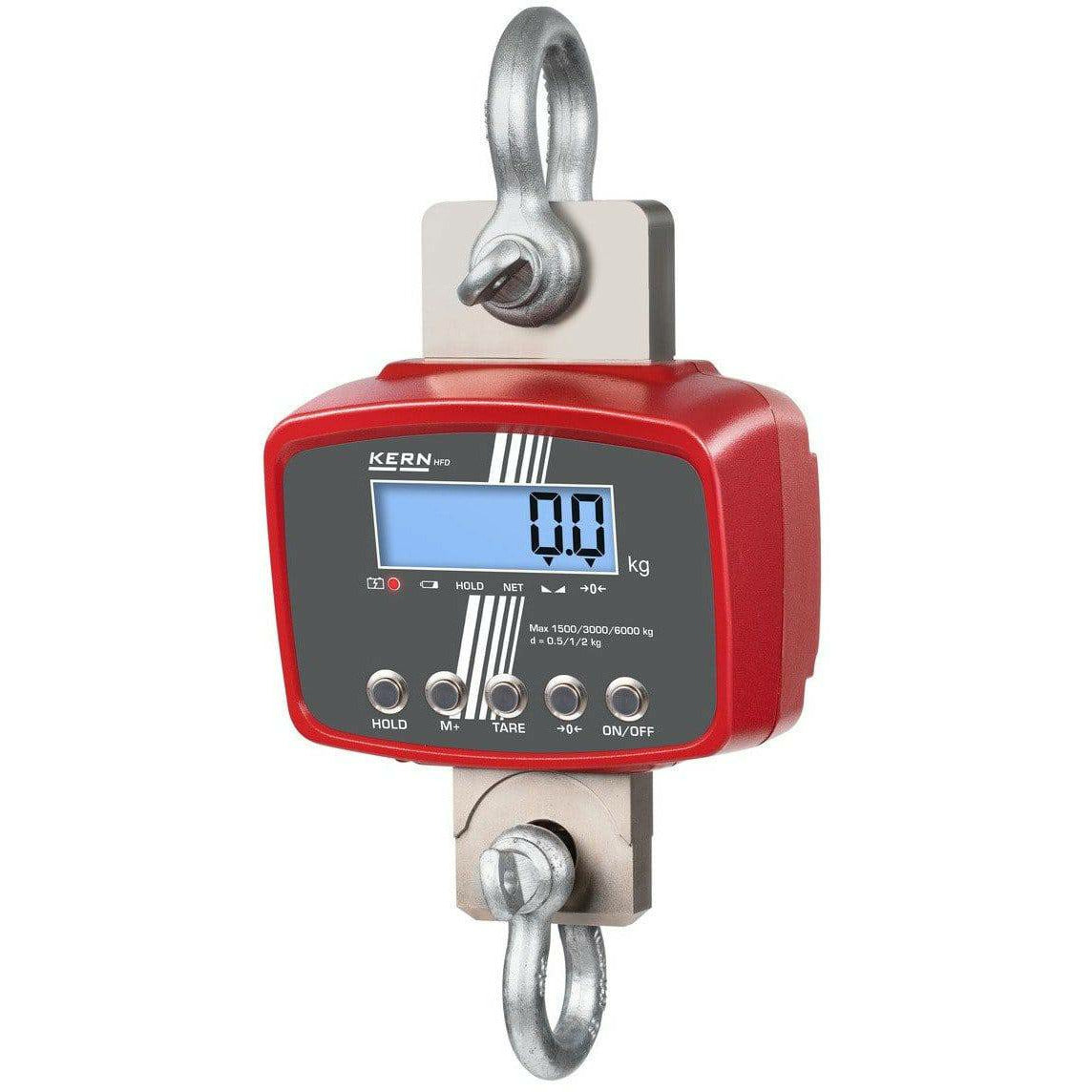

Kern HFD hanging scales, with capacities from 150 kg to 12000 kg. The Kern HFD hanging scales, are a robust, high-resolution crane scale with EC type approval. They are available with an optional calibration certificate and other accessories such as printers, software and communications.

  • The models with M add-on have EC type approval and because of this they are ideal for use in verified applications such as, for example, calculation of a total price, based on weight
  • With the TÜV certification mark, the scale meets the requirements of the standard EN 13155 (Non-fixed load lifting attachments) and EN 61010-1 (Electrical safety)
  • Radio remote control standard. Radio range up to 20 m. All functions can be selected. Batteries included
  • The models with IP67 add-on have special spray and dust protection to IP67 and because of this they are ideal for use in harsh environments
  • Because of its stable construction and robust design, it is ideal for continuous use in industrial environment
  • High mobility: thanks to battery operation and compact construction, it is suitable for use in several locations
  • Hold function: When the weighing value remains unchanged the weight indicated on the display is automatically ''frozen'' until the HOLD key is pressed
  • Tare: Resets the display to "0" when there is a load on the scale. Now removed or added loads are directly displayed
  • Solid shackles, non-revolving
  • Watch the product film

Technical data

  • Superior display size: digit height 30 mm, bright backlight for easy reading of weighing results, even in poor lighting conditions
  • Rechargeable battery pack internal, standard, operating time up to 70 h without backlight. Battery pack accessible from the outside, which means it is easy to replace
  • Precision: 0.2 % from [Max]
  • Permissible ambient temperature -10 °C/40 °C

Click here for accessories

Model Weighing capacity Readability
[Max] [d]
HFD 10T-3 3000 kg; 6000 kg; 12000 kg 1000 g; 2000 g; 5000 g
HFD 10T-3IP 3000 kg; 6000 kg; 12000 kg 1000 g; 2000 g; 5000 g
HFD 10T-3M 12000 kg 5000 g
HFD 1T-4 300 kg; 600 kg; 1500 kg 100 g; 200 g; 500 g
HFD 1T-4IP 300 kg; 600 kg; 1500 kg 100 g; 200 g; 500 g
HFD 1T-4M 1500 kg 500 g
HFD 3T-3 600 kg; 1500 kg; 3000 kg 200 g; 500 g; 1000 g
HFD 3T-3IP 600 kg; 1500 kg; 3000 kg 200 g; 500 g; 1000 g
HFD 3T-3M 3000 kg 1000 g
HFD 600K-1 150 kg; 300 kg; 600 kg 50 g; 100 g; 200 g
HFD 600K-1IP 150 kg; 300 kg; 600 kg 50 g; 100 g; 200 g
HFD 600K-1M 600 kg 200 g
HFD 6T-3 1500 kg; 3000 kg; 6000 kg 500 g; 1000 g; 2000 g
HFD 6T-3IP 1500 kg; 3000 kg; 6000 kg 500 g; 1000 g; 2000 g
HFD 6T-3M 6000 kg 2000 g



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Rechargeable battery pack: rechargeable setUniversal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing

Optional

Verification possible. The time required for verification is specified in the pictogram.
