Including a free test certificate

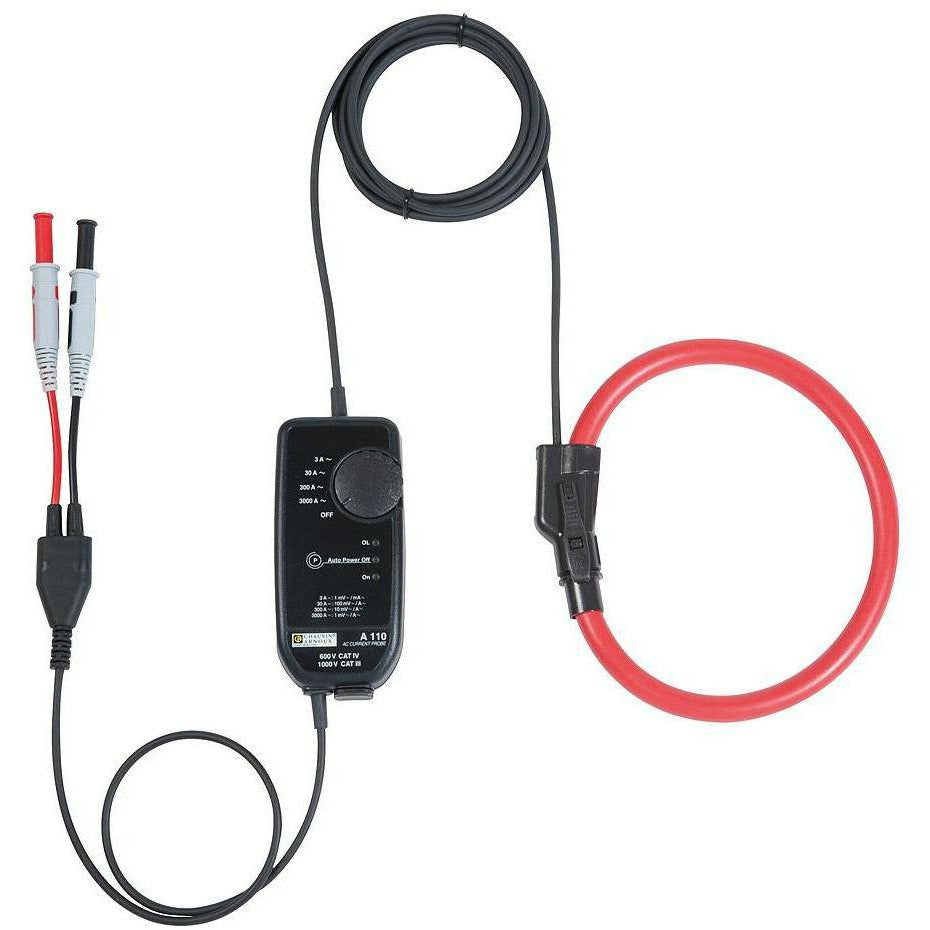

The AmpFlex® A110 Flexible Current Sensor allows for direct connection to any multimeter, wattmeter, logger, etc.

These flexible coils offer the following major advantages:
Their flexible, lightweight design means they can encircle one or more conductors, whatever their shape (cable, busbar, strand, etc.)
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for wattmetric measurements

A110 Flexible Current Sensor Main Specifications:
Measurement range: 80 mA to 30 kA
4 calibres
Sensor length (clamping diameter): 45 cm, 80 cm or 1.20 m (14 cm, 25 cm, 38 cm)
Ingress protection of sensor/processing unit: IP67 / IP54
Output signal: AC voltage
Output via two-wire lead terminated by 2 x 4 mm straight male banana safety connectors
Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
Battery life: 300 hours
1,000 V CAT IV

Chauvin Arnoux A110 Flexible Current Sensor
38900
