Digital Bottle Cap Torque Measurement • ±0.5% Accuracy • USB & RS-232

Fast and Precise Torque Testing for Bottles, Jars, and Packaging

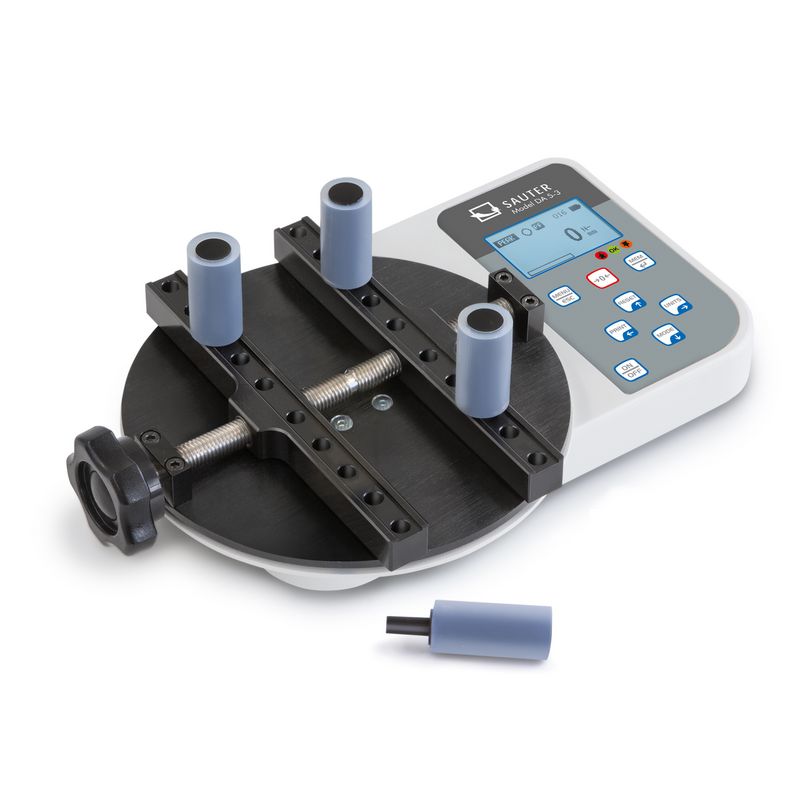

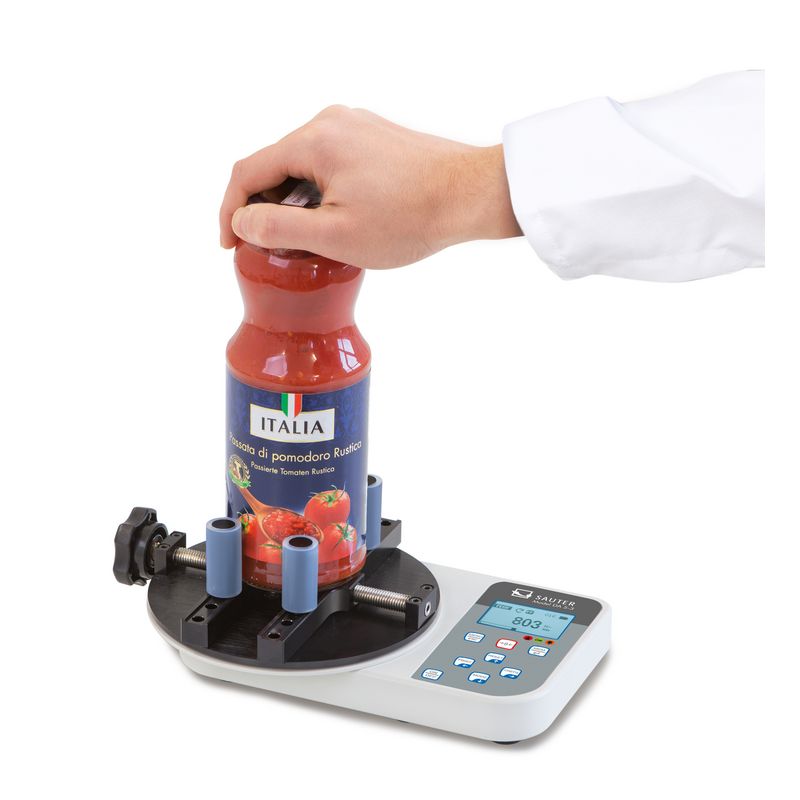

The Sauter DA Digital Torque Tester is purpose-built for precise torque measurements on screw-top packaging, such as bottles, jars, and cosmetic containers. With a quick-change bottle mounting system, ±0.5% accuracy, and both USB and RS-232 connectivity, it’s the go-to solution for laboratories and production lines in the food, pharmaceutical, and cosmetic industries.

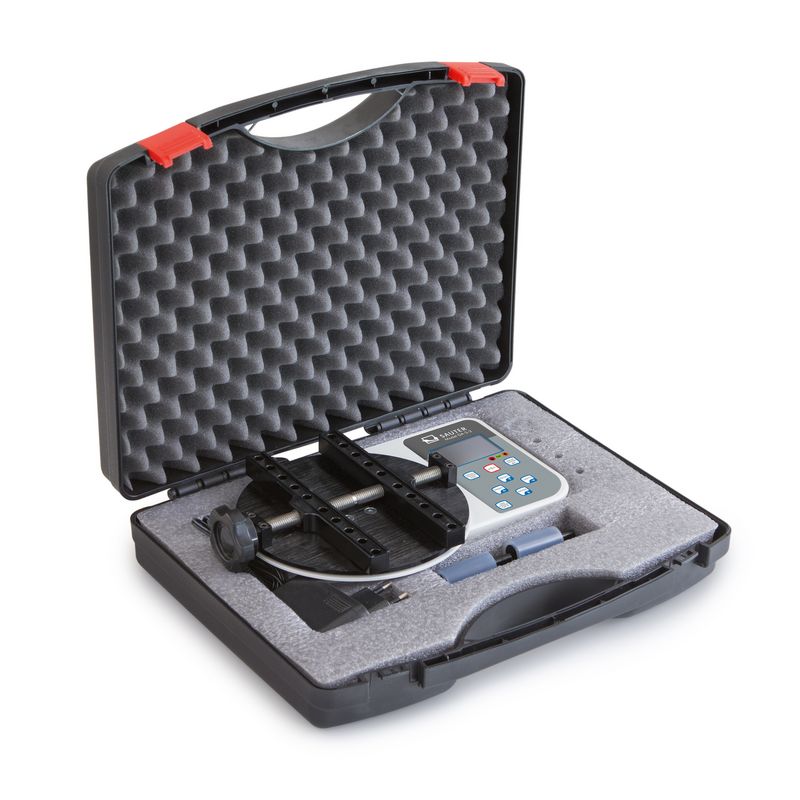

Each unit features a robust metal housing, an internal memory for up to 500 results, and intuitive functions like peak hold, tolerance limits, and a bar graph load indicator. Designed for convenience, the DA series also includes a rechargeable battery and comes with four rubber-coated bottle holders and a carry case.

Key Features

• Precision Testing: ±0.5% of max measuring range; available in 1 Nm, 5 Nm, and 10 Nm capacities
• Dual Measurement Modes: Peak-Hold and Track for capturing both transient and stable readings

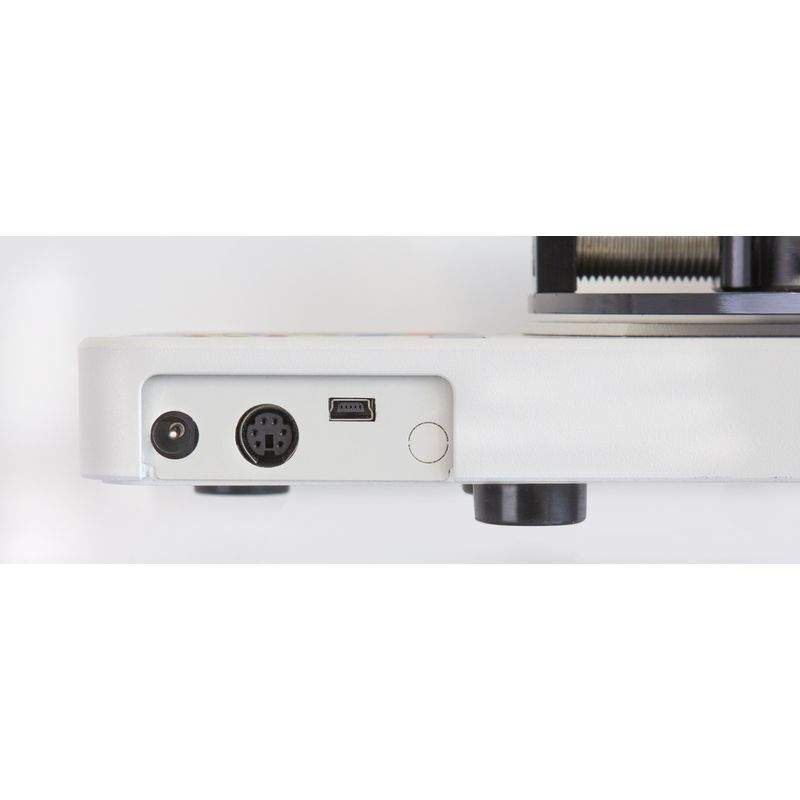

• USB & RS-232 Interfaces: Data transfer ready for easy export to PC or software analysis
• Smart Limit Setting: Programmable upper/lower torque thresholds with visual and audible alarms
• Quick Pin Mount System: Push-in holders for fast repositioning across bottle sizes (15–160 mm diameter)
• Rechargeable Operation: Built-in battery with 18-hour runtime and 14-hour recharge time
• Memory Function: Internal storage for up to 500 readings, exportable via optional software

Model Comparison

Additional Information

• Selectable Units: Nm, kgf/cm, kgf/m, in/lbs, ft/lbs
• Usable Range: 5%–100% of maximum rated capacity
• Overload Protection: 120% of maximum rated torque

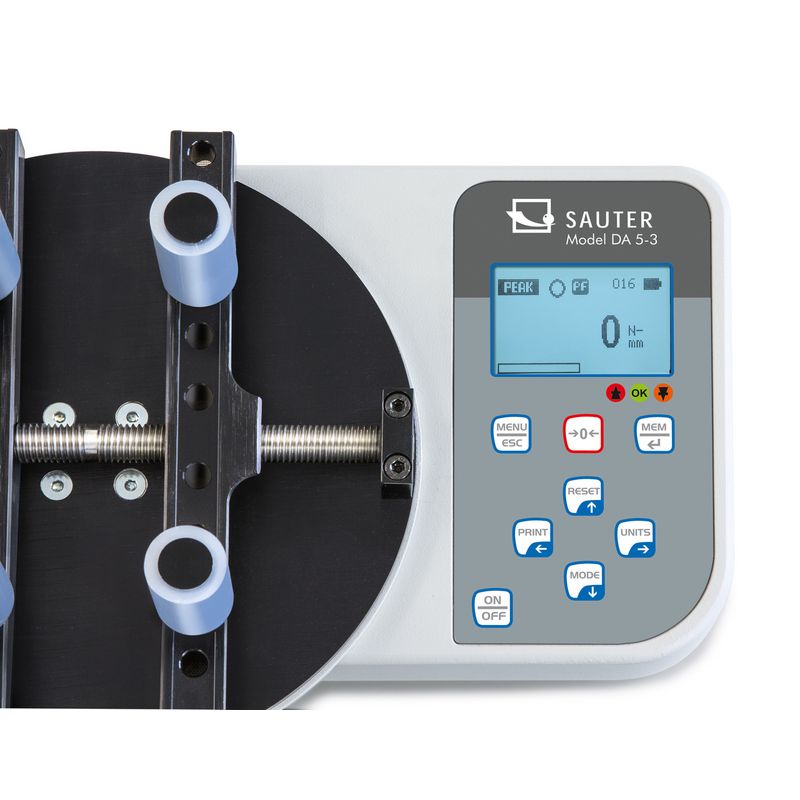

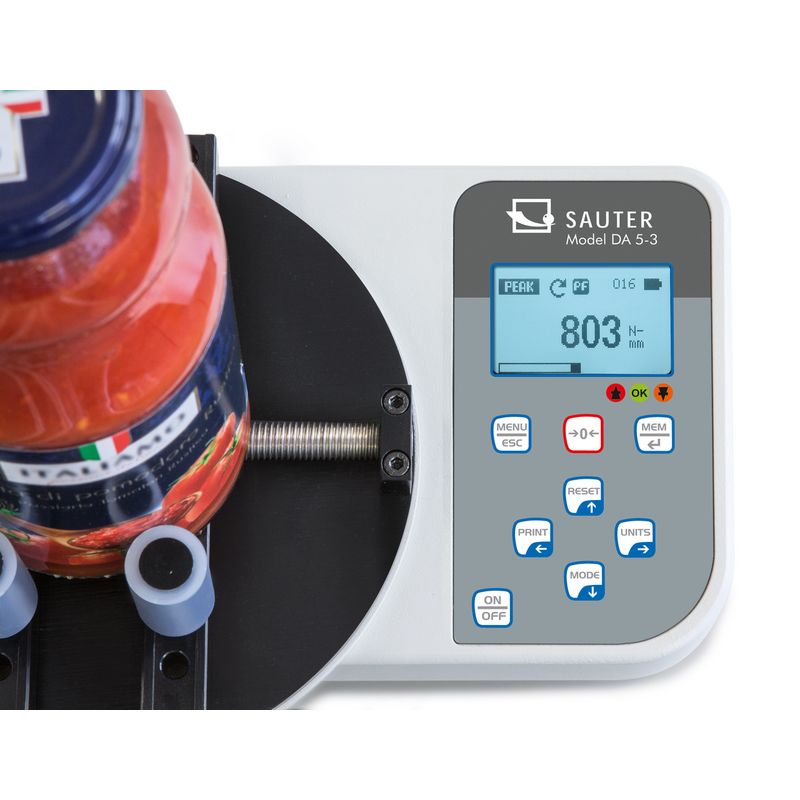

• Display: Graphic LCD with backlight and bar capacity indicator
• Software Compatibility: Works with SAUTER AFI-2.0 or AFH FAST (sold separately)
• Housing: Durable metal body with anti-slip rubber feet
• Dimensions (W×D×H): 260 × 160 × 60 mm
• Weight: Approx. 3.0 kg
