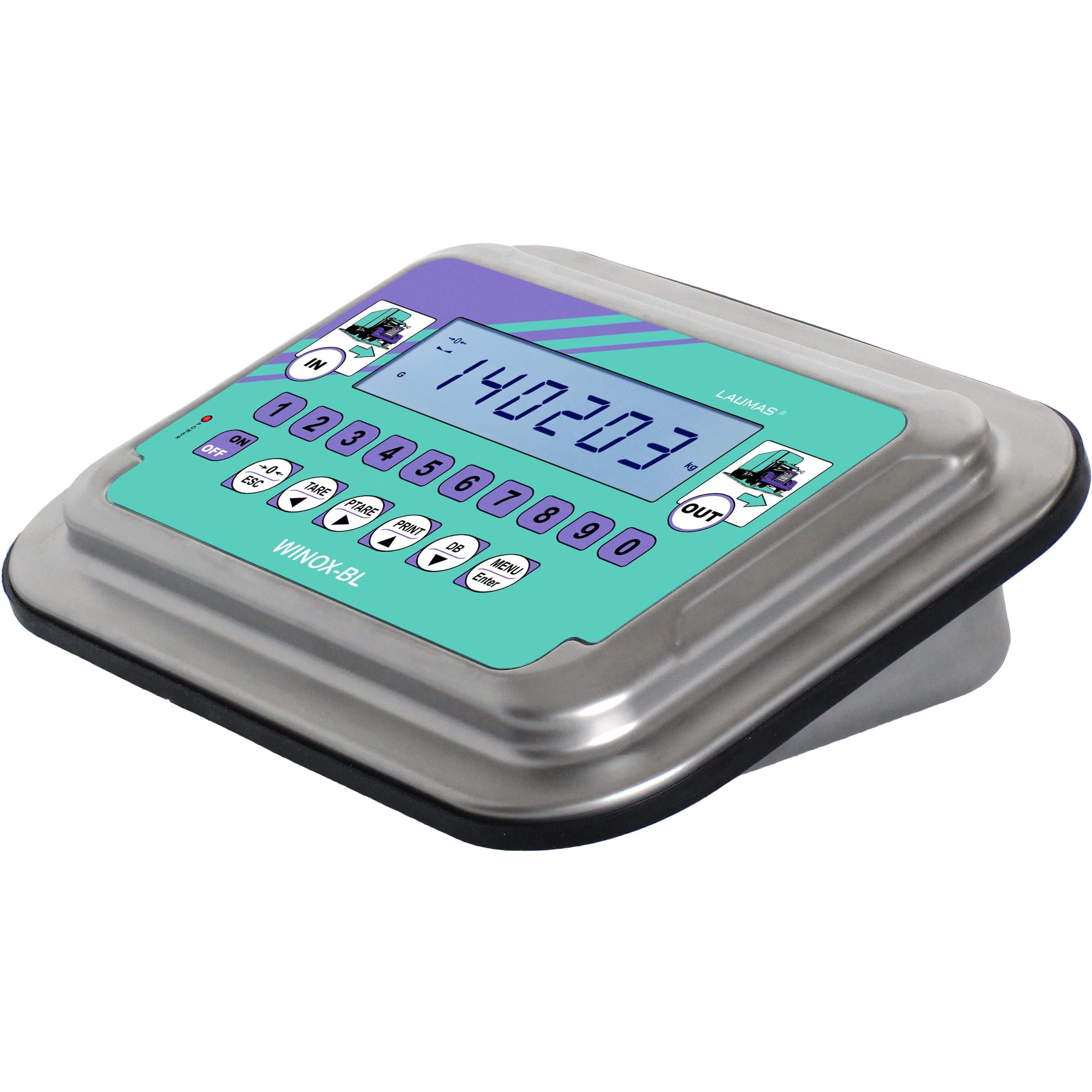

Laumas WINOX-BL weight indicator is suitable for desk mounting and has a six-digit backlit LCD display, 20 mm tall. It is suitable for vehicle weighing: Double weighing (entry and exit) and single weighing (entry or exit) functions. The Laumas WINOX-BL weight indicator has RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) for communication with other equipment. It is fitted with 2 logic inputs, 4 relay outputs.
- AISI 304 stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm. IP40 protection rating (D-SUB connectors). 19-key membrane keyboard. 46 indicator symbols. Real time clock/calendar.
- Ideal for desk mounting
- Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, multiple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
- Six-digit backlit LCD display, 20 mm height
- RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 4 relay outputs
- OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
- Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request
- A/D converter 24bit (16000000 points) 4.8 kHz
- Display range 999999
Some optional features:
- Alibi memory (up to 10000 weighed values storable)
- Two-way radio transmission
Click here for full specification
