40000

incl. VAT

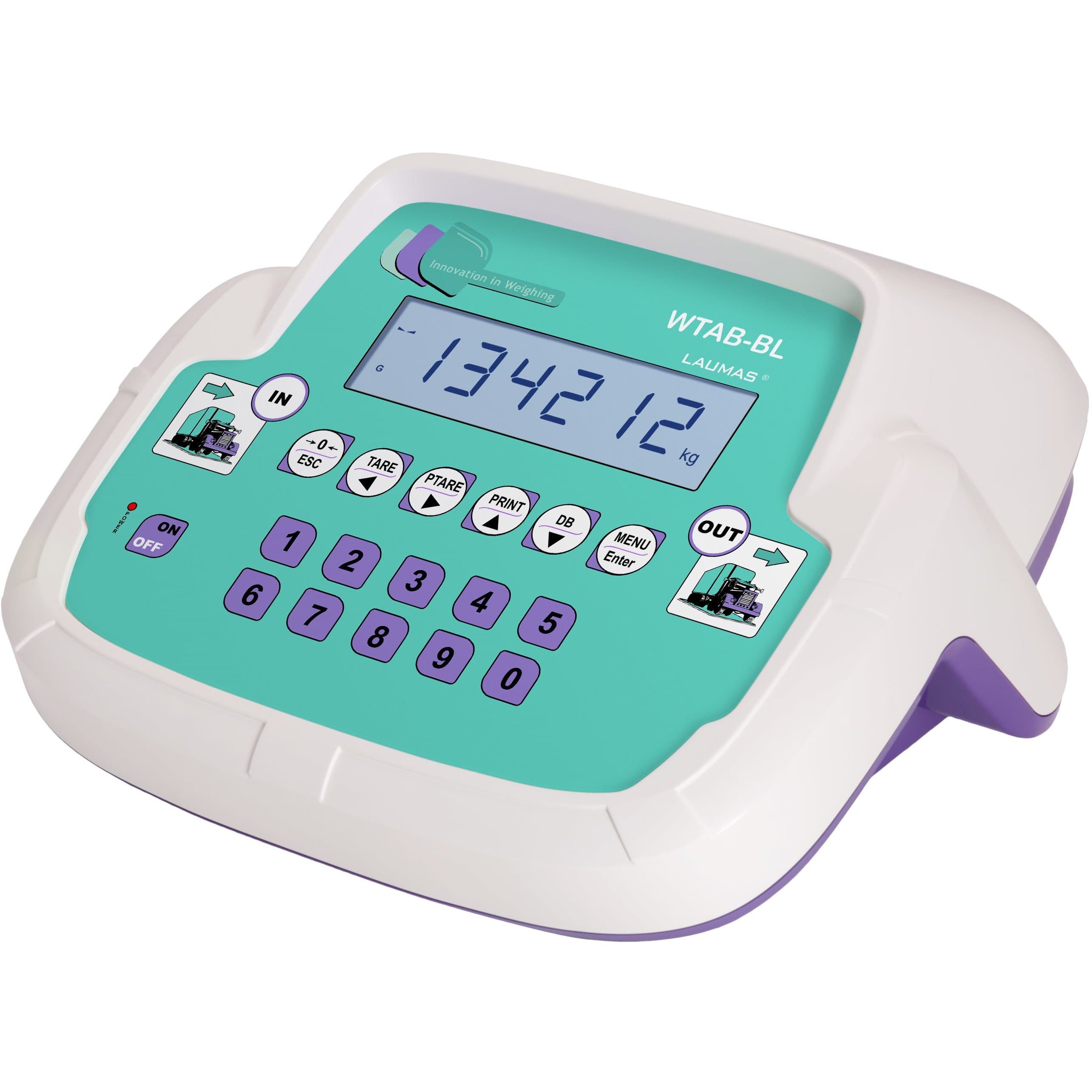

Laumas WTAB-BL weight indicator is suitable for desk mounting and has a six-digit backlit LCD display, 20 mm tall. It is suitable for vehicle weighing: Double weighing (entry and exit) and single weighing (entry or exit) functions. The Laumas WTAB-BL weight indicator has RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol) for communication with other equipment. It is fitted with 2 logic inputs, 4 relay outputs.

  • ABS Weight Indicator, dimensions 315 x 315 x 170 mm. IP40 protection rating (D-SUB connectors). 19-key membrane keyboard. 46 indicator symbols. Real time clock/calendar.
  • Ideal for desk mounting, ergonomic design
  • Vehicle weighing: Double weighing (entry and exit), single weighing (entry or exit), double/single weighing with trailer, multiple weighing (weighing of multi-compartment trucks). Trucks database with password, max 999 preset tare that can be stored and recalled. Open input weighs archive (max 254). Totals management and traffic light function.
  • Six-digit backlit LCD display, 20 mm height
  • RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
  • 2 logic inputs, 4 relay outputs
  • OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
  • Integrated thermal printer (optional). Supported printers: Epson TM-U295, Epson LX300, Custom Kube II, Laumas STAVT II. Other models on request
  • A/D converter 24bit (16000000 points) 4.8 kHz
  • Display range 999999

Some optional features:

  • Alibi memory (up to 10000 weighed values storable)
  • Integrated thermal printer

Click here for full specification

Laumas WTAB-BL Weight Indicator
