34600

Supplied with free test certificate

Description

The MiniFlex® MA110 Series comprises 3 flexible sensors which can be connected directly to any multimeter, wattmeter, logger, etc.
These flexible coils offer the following major advantages:
Current measurement even in places where access is difficult
Large measurement range
Bandwidth suitable for industrial frequencies and harmonic analysis
No saturation effect, so no overheating
Constant low phase shift appropriate for wattmetric measurements

Main specifications:
Measurement range: 80 mA to 3 kA
4 calibres
Sensor length (clamping : 17 cm, 25 cm or 35 cm (4.5 cm, 7 cm, 10 cm)
Ingress protection of sensor/processing unit: IP67 / IP54
Output signal: AC voltage
Output via two-wire lead terminated by 2 x 4 mm straight male banana safety connectors
Power supply: 2 x 1.5V AA batteries or external µUSB type B 5V
Battery life: 300 hours
600 V CAT IV

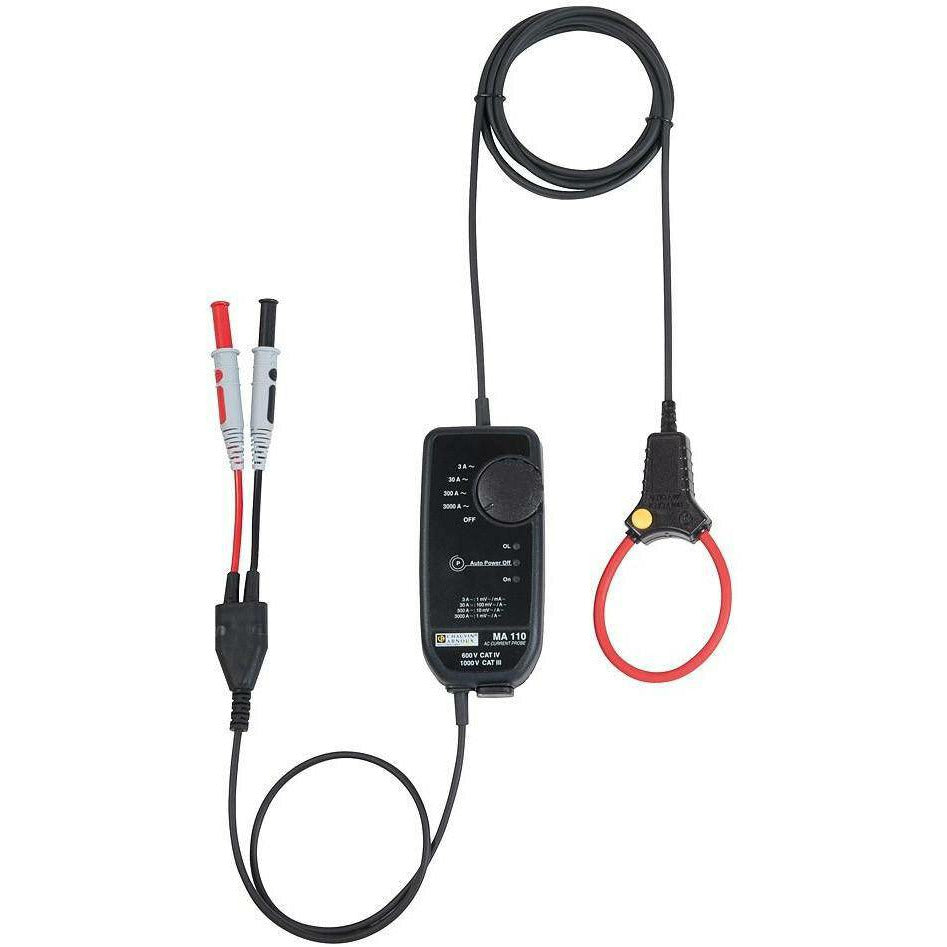

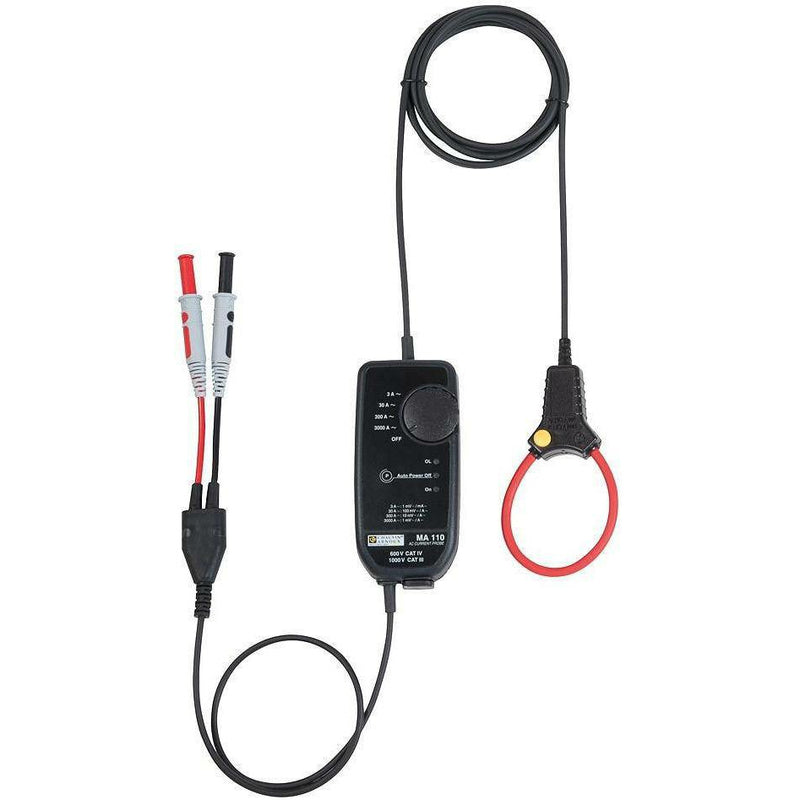

Chauvin Arnoux MA110 Flexible Current Sensor
34600
