Our glycerine filled pressure gauges (also known as liquid-filled pressure gauges) are designed to deliver stable, easy-to-read pressure indication in applications where vibration, pulsation or shock can cause pointer flutter on dry gauges. Select your required dial diameter below to view available pressure ranges and connection options.

---

---

Our glycerine filled pressure gauges are designed to provide stable, easy-to-read pressure measurement in applications subject to vibration, pulsation or pressure cycling. The liquid fill helps dampen pointer movement, improving readability and helping protect the gauge mechanism in demanding service.

Ideal for pumps, compressors, hydraulic power units and plant installations where dry gauges can suffer from pointer flutter, glycerine filled gauges are a practical choice for improving readability and extending service life in harsh operating conditions.

---

Why Choose a Glycerine Filled Pressure Gauge?

Glycerine filled pressure gauges provide:

• More stable readings in vibrating environments
• Improved readability where pressure fluctuates or pulses
• Reduced wear on the movement compared with dry gauges in harsh service
• Better suitability for mobile equipment and machinery

These gauges are ideal where stable indication and durability under vibration are key considerations.

Need a standard dry gauge? View our General Purpose Pressure Gauges. For corrosive or hygienic environments, consider All Stainless Steel Pressure Gauges.

---

Dial Sizes & Configurations Available

We supply glycerine filled pressure gauges in the following standard dial diameters:

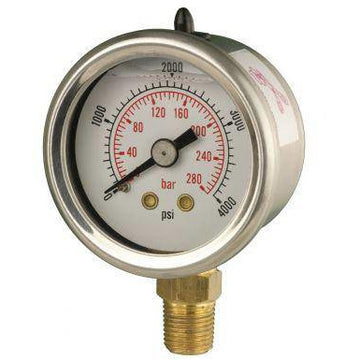

• 40mm Glycerine Filled Pressure Gauges

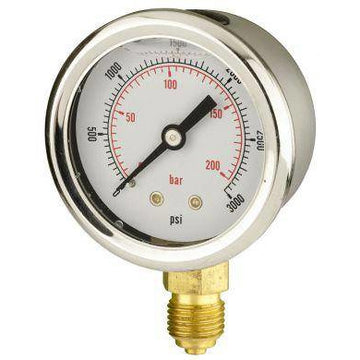

• 50mm Glycerine Filled Pressure Gauges

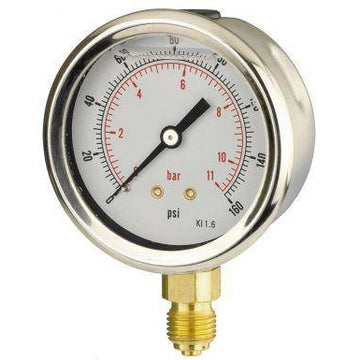

• 63mm Glycerine Filled Pressure Gauges

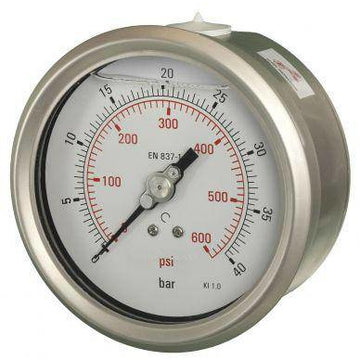

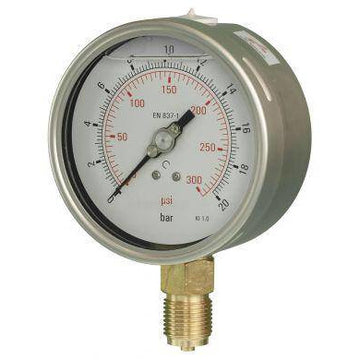

• 100mm Glycerine Filled Pressure Gauges

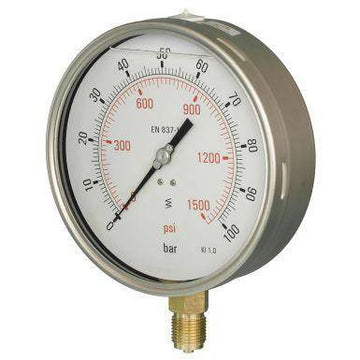

• 160mm Glycerine Filled Pressure Gauges

Options across the range typically include:

• Bottom entry (radial) and back entry (axial) configurations
• Dual scale dials (bar/psi) on many models
• BSP and NPT thread configurations

---

Pressure Ranges & Connections

Our glycerine filled gauges are available in a wide range of pressure scales including:

• Vacuum ranges
• Compound gauges
• Standard industrial ranges (e.g. 0–6 bar, 0–10 bar, 0–16 bar, 0–25 bar, 0–40 bar and higher)
• Higher pressure ranges on selected models

Connection options include common sizes such as 1/8", 1/4", 3/8" and 1/2" BSP, plus NPT options on selected models. Adapters are available if you need to match existing pipework.

---

Suitable Media & Operating Conditions

Glycerine filled pressure gauges are typically best suited to media that is not highly viscous and for applications where process temperature is within normal operating limits. As a general guide, liquid-filled gauges are commonly specified for systems below approximately 60 °C, and for media compatible with standard brass/alloy wetted parts. If you require improved chemical compatibility, higher temperature performance, or hygienic suitability, we can advise on alternative constructions (including all stainless steel options).

---

Typical Applications

Glycerine filled pressure gauges are commonly used in:

• Hydraulic systems subject to pulsation
• Pumps and compressors
• Pneumatic equipment and plant air systems
• Mobile machinery and vibrating installations
• General industrial process equipment

---

Selecting the Right Glycerine Filled Gauge

When choosing a gauge, consider:

• Dial size (visibility requirements)
• Pressure range
• Media compatibility
• Mounting orientation (bottom vs back entry)
• Vibration severity (confirm filled specification is required)

If you're unsure which specification is suitable, our technical team can advise.

---

Need Help or Bulk Supply?

We can supply:

• OEM quantities for equipment manufacturers
• Special pressure ranges
• Alternative case materials and specifications
• Calibration services on request

Contact GNW Instrumentation for expert advice and assistance selecting the right glycerine filled pressure gauge solution.

Fast UK dispatch available.
