Load Cell Mounting Kits & Dummy Load Cells

Load-cell mounting kits help transfer force into the sensor correctly while allowing a tank, hopper or platform to move as intended. The range also includes dummy load cells and associated hardware for supported weighing structures.

Choose the assembly specified for the load-cell model, capacity and installation conditions. Mounting parts should be considered at the start of the mechanical design, not added after the structure has been built.

43 products

Laumas PPV Load Cell Mounting Kit

From £18.00

Laumas EM Load Cell Mounting Kit

From £18.00

Laumas BASESUP and BASEINF load cell mounting plates

Laumas BASESUP - BASEINF Load Cell Mounting Kit

From £22.00

Laumas SNODOGE Load Cell Mounting Kit

From £22.00

Laumas ANTIV Load Cell Mounting Kit

From £29.00

Laumas SB2 - PXC Load Cell Mounting Kit

From £33.00

Laumas ACCSFER Load Cell Mounting Kit

From £36.00

Laumas ML Dummy Load Cell

From £37.00

Laumas TENDITORE300 - PTEND Load Cell Mounting Kit

From £44.00

Laumas BASESUPFIL and BINF load cell mounting plates

Laumas BASESUPFIL - BINF Load Cell Mounting Kit

From £44.00

Laumas P10000 Load Cell Mounting Kit

£50.00

Laumas PVCLS Load Cell Mounting Kit

£57.00

Laumas PSCLS Load Cell Mounting Kit

From £57.00

Laumas TFCFSB Load Cell Mounting Kit

£66.00

Laumas STR Load Cell Mounting Kit

From £68.00

Laumas T8 Load Cell Mounting Kit

£74.00

Laumas TFCPV Load Cell Mounting Kit

From £77.00

Laumas TFFSB Load Cell Mounting Kit

£77.00

Laumas PV Load Cell Mounting Kit

From £77.00

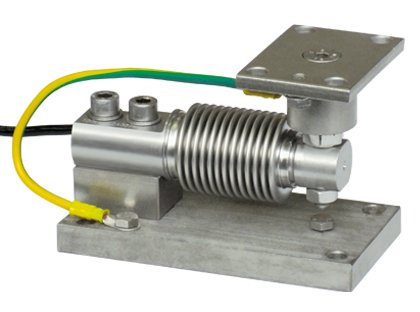

Laumas TFCGP Load Cell Mounting Kit

£88.00

Laumas TFPV Load Cell Mounting Kit

From £94.00

Laumas TF Load Cell Mounting Kit

From £94.00

Laumas TFPS Load Cell Mounting Kit

From £94.00

Laumas TFAST Load Cell Mounting Kit

£99.00

Mounting hardware for reliable load-cell installation

The mounting assembly has a direct effect on how well a load cell can measure. It introduces force into the sensor, helps control side loading and allows for movement caused by filling, discharge or temperature changes.

Use the compatibility filter to find kits for the relevant shear beam or compression load cell. For sensors and other mechanical formats, browse the complete load cell collection.

A mounting kit must suit the exact model, rated load and structure. Check the manufacturer’s installation drawing and consider restraints, uplift protection, material, fixing details and future access before ordering.

Understanding Load Cell Mounting Kits & Dummy Load Cells

A load cell can only measure accurately when force reaches it through the intended path. Mounting kits provide the interfaces, joints and restraints needed to install the sensor beneath a tank, hopper, vessel or platform.

The assembly may need to accommodate thermal expansion, vibration, small alignment changes and forces created during filling or discharge. Depending on the design, it can also provide uplift or anti-tilt protection.

Dummy load cells are non-measuring supports used in particular structural arrangements or during installation. They should only be selected where the system design specifically calls for them.

Mechanical stability in weighing systems

A suitable assembly keeps the weighing point aligned while allowing the structure to settle and move normally without binding the sensor.

Self-centring and anti-tilt protection

Self-centring joints, restraints and anti-tilt features help control unwanted movement. The required arrangement depends on the vessel and surrounding pipework.

Dummy load cells for structural support

A dummy load cell supports the structure without producing a signal. Its use and position should follow the mechanical design of the weighing system.

Learn more

Load cell mounting kit applications

Mounting hardware is used wherever a load cell supports a structure and needs protection from unwanted mechanical forces.

Tank and vessel weighing

Tank and vessel assemblies may need to allow thermal expansion while restraining lateral movement and uplift.

Hopper and batching systems

Hoppers used for batching or discharge can generate movement and vibration, making correct restraint and load introduction particularly important.

Platform scales and OEM machinery

Platforms and OEM machinery need rigid fixing, correct alignment and enough clearance to prevent the surrounding frame from bypassing the sensor.

How to choose load cell mounting kits

Start with the exact load-cell model and the structure it will support, then check capacity, movement, material and fixing details.

Match the mounting kit to the load cell type

Use the kit specified for the load-cell family and capacity. Similar-looking assemblies are not necessarily dimensionally or mechanically interchangeable.

Consider load capacity and movement

Allow for the maximum load at each support and consider thermal movement, vibration, side force, uplift and the effect of connected pipework.

Choose suitable materials

Choose plated or stainless-steel versions according to moisture, washdown, corrosion and hygiene requirements at the installation site.

Check installation and maintenance requirements

Check fixing dimensions, restraints, clearances and access for inspection. Follow the manufacturer’s installation drawing and tightening requirements.

Load cell mounting kit FAQs

These answers cover the practical points that determine whether a mounting assembly is suitable for the load cell and structure.

Which load cell mounting kit do I need?

Start with the exact load-cell model and capacity, then check the supported structure, required movement, restraints, material and installation drawing.

Can I replace an existing load cell mounting kit with a different model?

Only where it is confirmed as mechanically compatible with the load cell and structure. Dimensions, loading surfaces and restraint behaviour can differ between designs.

Why are load cell mounting kits important?

They control how force reaches the sensor, help prevent side loading and allow the supported structure to move without bypassing or damaging the weighing point.

Are stainless steel mounting kits better than galvanised versions?

Not always. Stainless steel is preferable in wet, corrosive or frequently cleaned areas, while a suitable plated or galvanised assembly may be appropriate in a dry industrial environment.
