Adam Equipment BTT Touch-Screen Label Printing Platform Scales
86000
Adam Equipment BTT Touch-Screen Label Printing Platform Scales
86000
Touchscreen Precision with Built-in Printing

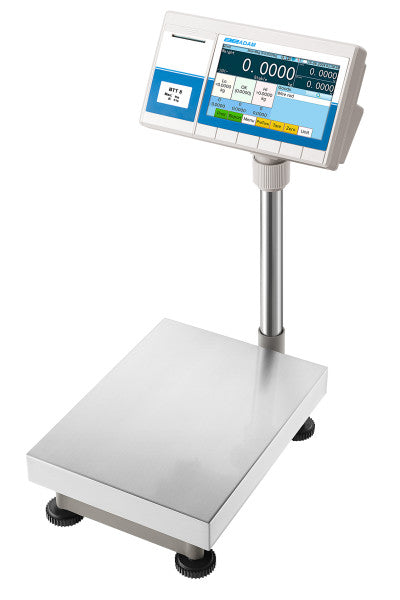

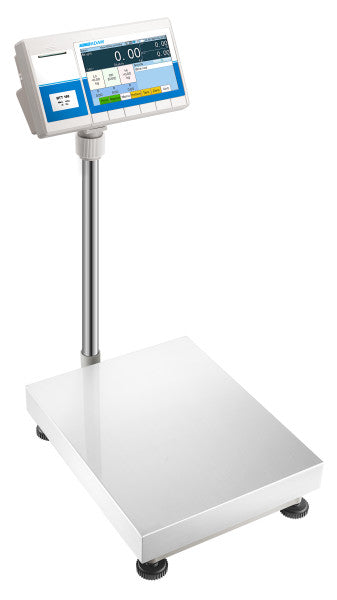

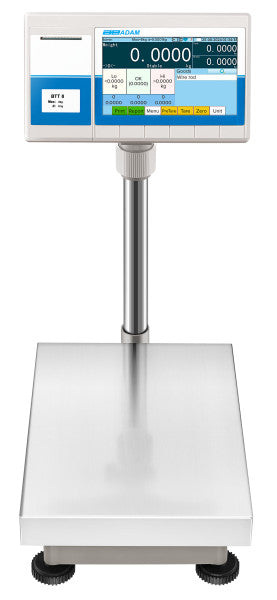

The Adam Equipment BTT Series combines durable construction with a high-resolution touchscreen and built-in label printer, making it ideal for manufacturing, packing, logistics, and warehouse applications. Designed for efficiency and accuracy, BTT offers user-friendly operation, quick stabilisation, and customisable label output in various languages and formats.
Each model is equipped with a stainless steel weighing pan, a rugged ABS indicator, and flexible connectivity options including RS-232, USB, and optional Ethernet, Wi-Fi, and Bluetooth. These scales streamline operations with advanced counting, accumulation, and barcode/QR code printing functionality.
Key Features
- Touchscreen Display: Large 8” intuitive interface for fast navigation and easy setup
- Built-in Printer: Customise and print labels including weight, QR codes, and logos
- Flexible Applications: Weighing, counting, checkweighing, accumulation, percentage weighing, label printing
- Sturdy Design: ABS indicator and stainless steel pan built for industrial durability
- Connectivity: RS-232, USB, with optional Ethernet, Wi-Fi, and Bluetooth
- Memory Functions: Save up to 10 label formats and PLU memory for item recall
- Rechargeable Battery: Internal battery supports mobile use with auto power-off
Model Comparison
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size (mm) |
|---|---|---|---|---|---|
| BTT 8 | 8 kg | 0.1 g | 0.2 g | 0.3 g | 400 × 300 |
| BTT 16 | 16 kg | 0.5 g | 1 g | 1 g | 400 × 300 |
| BTT 32 | 32 kg | 1 g | 2 g | 2 g | 400 × 300 |
| BTT 60 | 60 kg | 2 g | 4 g | 4 g | 400 × 300 |
| BTT 75 | 75 kg | 5 g | 5 g | 10 g | 400 × 300 |
| BTT 150 | 150 kg | 10 g | 0.01 kg | 0.02 kg | 500 × 400 |
| BTT 300 | 300 kg | 20 g | 0.02 kg | 0.04 kg | 500 × 400 |
Additional Information
- Display: 8” (200 mm) high-resolution touchscreen
- Calibration: External
- Power Supply: 12VDC 3A with rechargeable battery
- Interfaces: RS-232, USB (standard); Ethernet, Wi-Fi, Bluetooth (optional)
- Operating Temperature: 0°C to 40°C
- Housing: ABS plastic with stainless steel weighing platform
- Software: AdamDU data collection programme (optional)
