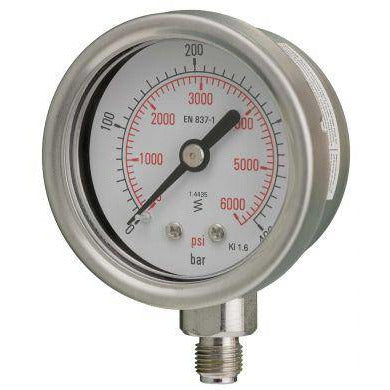

50mm bottom entry all stainless steel pressure gauge is suitable for heavy duty hydraulic and pneumatic applications with corrosive or hygienic media. Available in ranges from -1 bar to 414 bar (6000) psi. The 50mm bottom entry all stainless steel pressure gauge is available with a 1/8" BSP thread as standard and an optional calibration certificate.


Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Removable bayonet stainless steel
Window: Polycarbonate
Connection: 316 Stainless steel
Sensitive Element: 316 Stainless steel
Movement: 316 Stainless steel
Joints: Welded
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 1.6
Scale: Dual psi (outer) + bar (inner)

50mm Bottom Entry All Stainless Steel Pressure Gauge
