Kern CDS Counting Scales
51200
Kern CDS Counting Scales
51200
Up to 300,000 Points • IoT Connectivity • High-Capacity Design
Heavy-Duty Counting Scales for Industrial Applications with Industry 4.0 Integration
The Kern CDS Counting Scales are engineered for industrial-scale parts counting with impressive precision and connectivity. Offering counting resolutions up to 300,000 points and platform capacities up to 60 kg, these scales are ideal for warehouses, production environments, and inventory control systems aligned with Industry 4.0.
Each model features a backlit LCD, intuitive interface with guided 4-step counting process, and connectivity via USB, RS-232, WiFi, Bluetooth, or Ethernet using the KERN Universal Port (KUP). An internal rechargeable battery (optional) offers flexibility for mobile use, while the rugged build ensures long-term durability in tough environments.
Key Features
- High Counting Resolution: Up to 300,000 points for precision even with small part weights.
- Guided Operation: Intuitive 4-step counting process simplifies training and reduces errors.
- Industry 4.0 Ready: Multiple connectivity options including RS-232, USB, Ethernet, WiFi, and Bluetooth.
- Advanced Interface: Kern Communication Protocol (KCP) allows remote control and data retrieval.
- Flexible Display Mounting: Detachable display with stand options available for optimal setup.
- Power Options: Mains or optional internal battery with up to 48 h runtime.
Model Comparison
| Model | Capacity (kg) | Readability (g) | Smallest Part Weight (g/piece) | Counting Resolution | Weighing Plate Size (mm) |
|---|---|---|---|---|---|

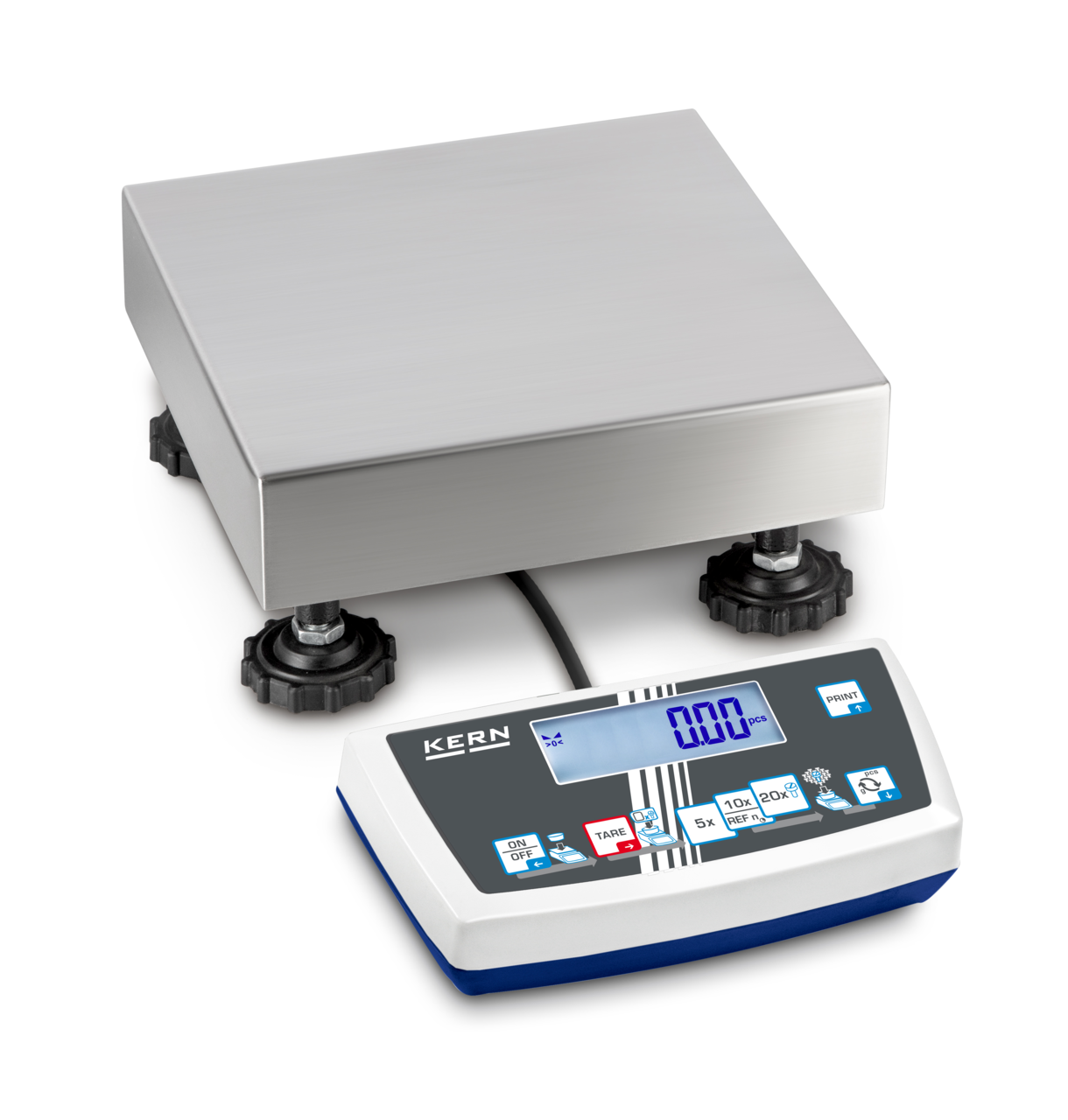

| CDS 4K0.02 | 4 | 0.02 | 0.2 | 200,000 | 230 × 230 |
| CDS 15K0.05 | 15 | 0.05 | 0.5 | 300,000 | 308 × 318 |

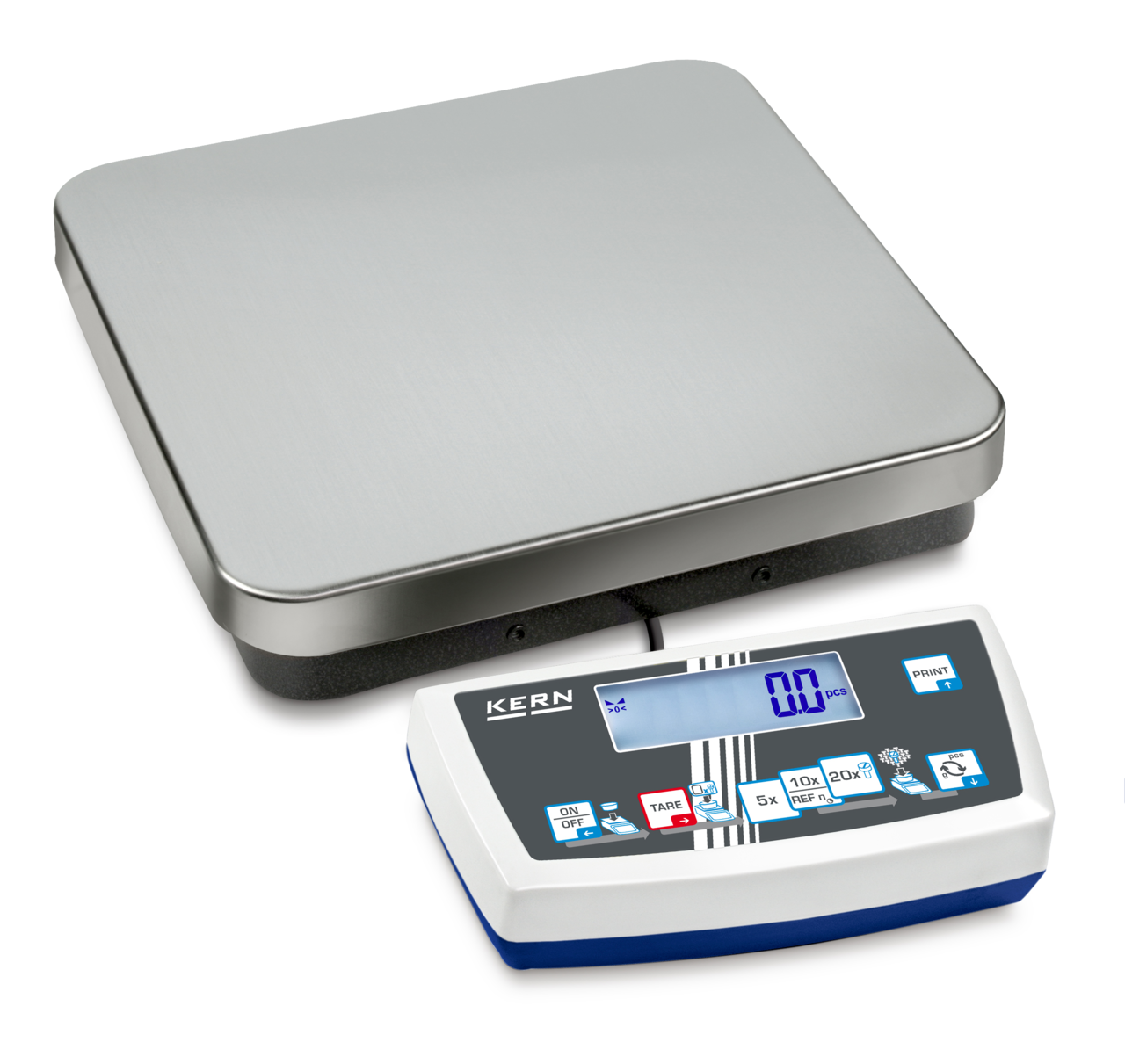

| CDS 16K0.1 | 16 | 0.1 | 1 | 160,000 | 308 × 318 |
| CDS 30K0.1 | 30 | 0.1 | 1 | 300,000 | 308 × 318 |
| CDS 30K0.1L | 30 | 0.1 | 1 | 300,000 | 500 × 400 |
| CDS 36K0.2L | 36 | 0.2 | 2 | 180,000 | 500 × 400 |
| CDS 60K0.2 | 60 | 0.2 | 2 | 300,000 | 500 × 400 |
Additional Information
- Display: Backlit LCD with 21 mm digits
- Power: Mains powered or optional rechargeable battery (48 h runtime)
- Temperature Range: -10°C to 40°C
- Construction: Stainless steel weighing platform and detachable display device
