Kern CFS Counting Scales
27200
High Resolution • 100 Item Memory • Dual Interface

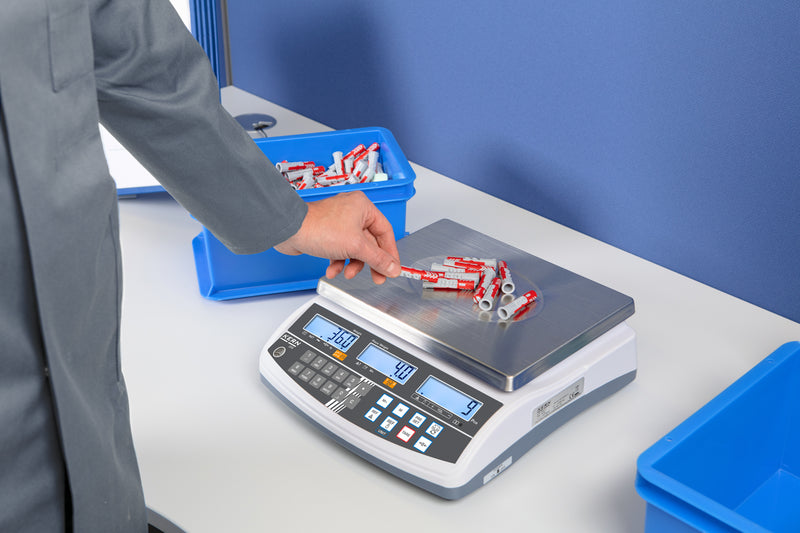

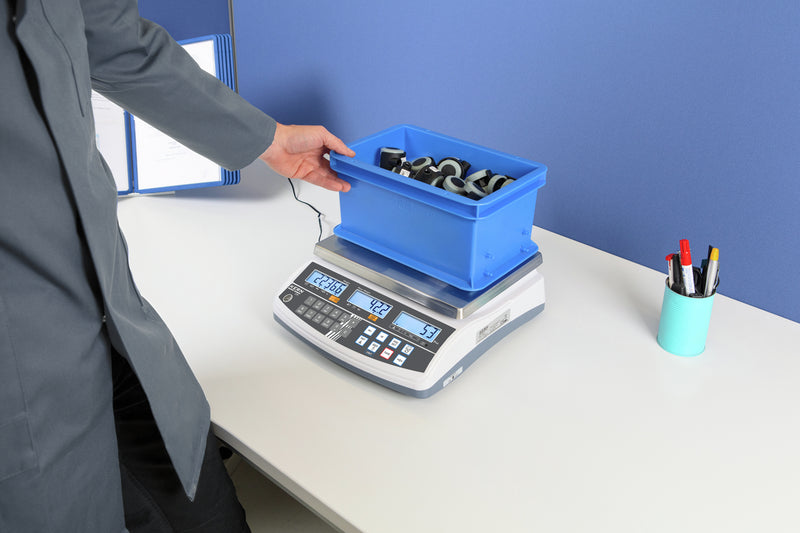

The KERN CFS Series Counting Scales deliver professional-level performance for accurate piece counting in industrial environments. Designed for high-resolution tasks, each model supports up to 75,000 counting points and features 100 item memories for quick recall of frequently used parts. With dual interfaces and the ability to integrate external balances, the CFS is ideal for flexible warehouse, inventory, and production workflows.

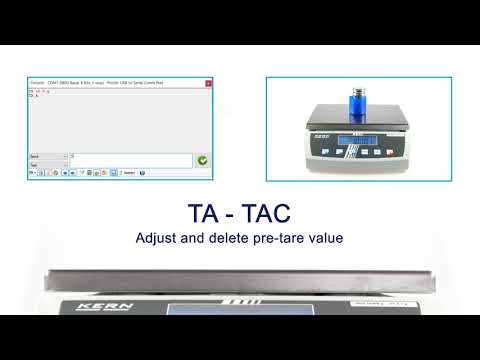

Standard features include a bright backlit LCD, draught shield (on smaller models), and programmable functions such as fill-to-target, tolerance checking, and PRE-TARE. Supplied with protective working covers, the CFS range ensures durability and precision in demanding settings.
Key Features
- Advanced Counting Performance: Up to 75,000-point counting resolution with automatic reference weight optimisation
- Memory Storage: 100 PLUs including reference weight, tare weight, and custom labelling

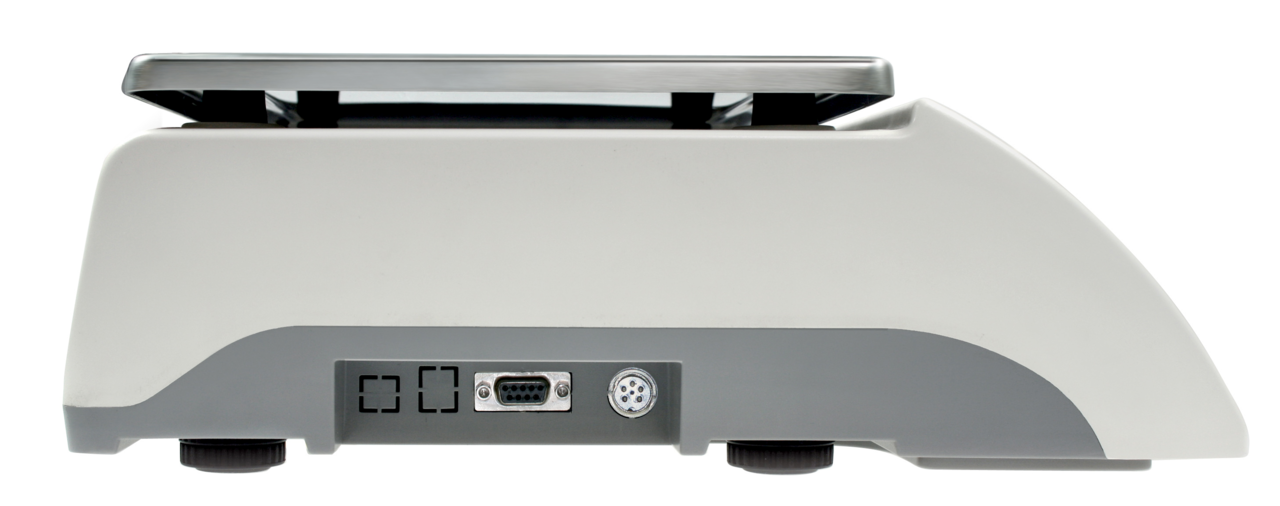

- Dual Interface Capability: Second balance interface for high-accuracy external weighing (e.g., with KERN KFP platforms)
- Visual and Audible Alerts: Built-in signals for tolerance checking, target fill, and grading

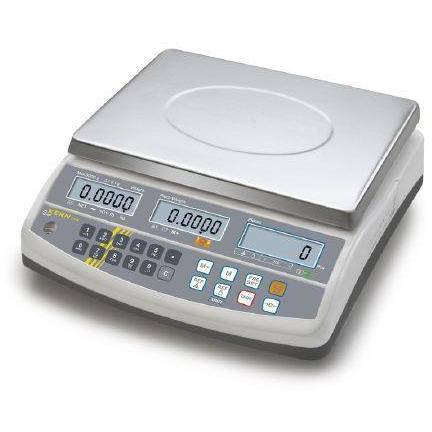

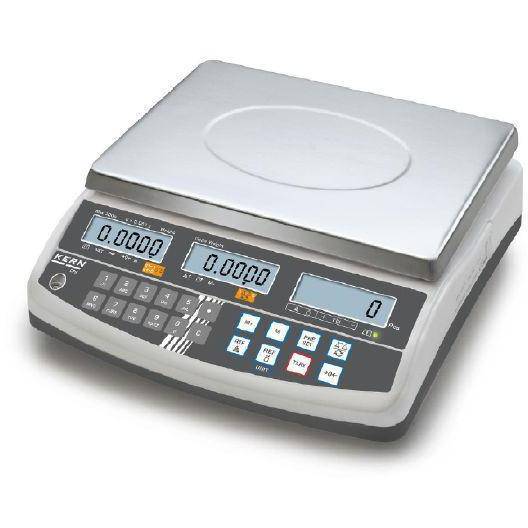

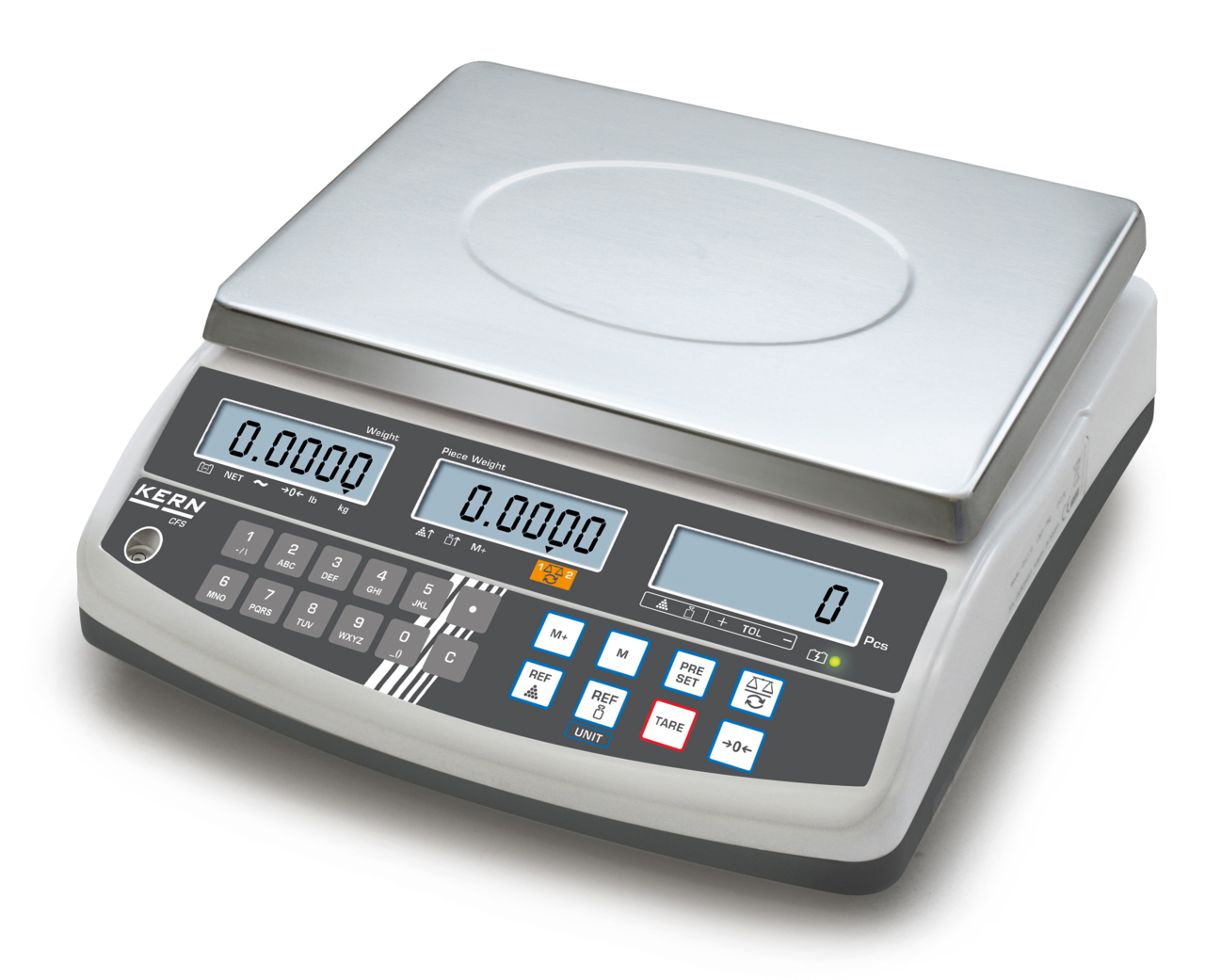

- Clear Display: Three backlit LCDs showing total weight, unit weight, and count

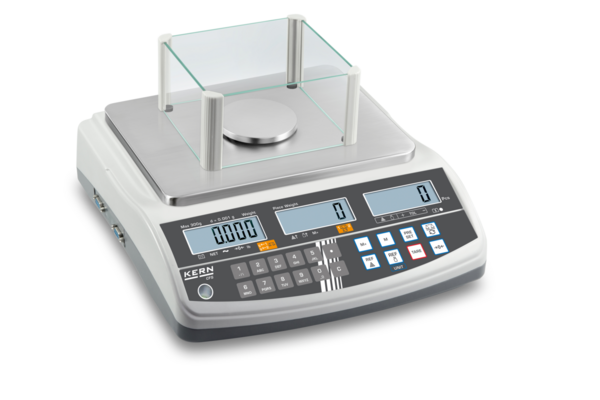

- Draught Shield: Supplied for models with Ø80 mm pan (CFS 300-3), enhancing stability
Model Comparison
| Model | Capacity (kg) | Readability (g) | Smallest Part Weight (g) | Counting Resolution | Weighing Plate (mm) |
|---|---|---|---|---|---|
| CFS 300-3 | 0.3 | 0.001 | 0.05 | 60,000 | Ø 80 |
| CFS 3K-5 | 3 | 0.01 | 0.5 | 60,000 | 295 × 225 |
| CFS 6K0.1 | 6 | 0.1 | 1 | 60,000 | 295 × 225 |
| CFS 15K0.2 | 15 | 0.2 | 2 | 75,000 | 295 × 225 |
| CFS 30K0.5 | 30 | 0.5 | 5 | 60,000 | 295 × 225 |

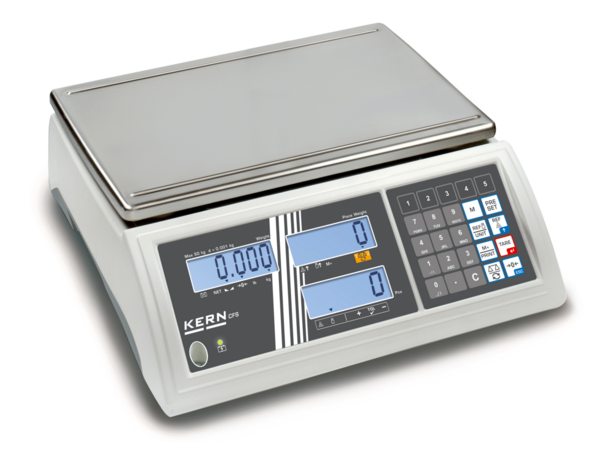

| CFS 50K-3 | 50 | 1 | 10 | 50,000 | 370 × 240 |
Additional Information
- Operating Temperature: 0°C to 40°C
- Power Options: Mains adapter (included) or optional internal rechargeable battery (up to 70 h operation)
- Construction: Includes protective cover; draught shield standard for smallest model
- Functions: Tolerance check, fill-to-target, programmable reference quantity or weight
