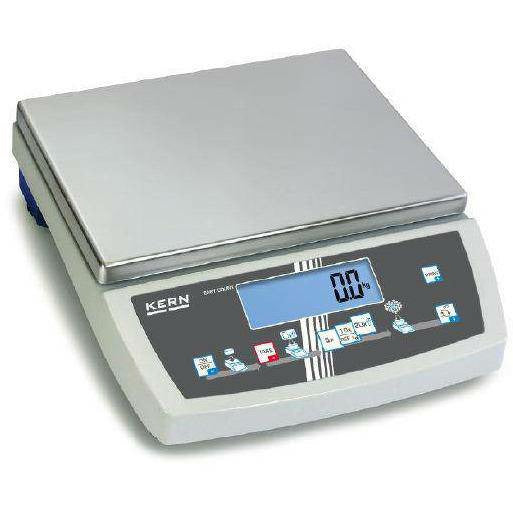

Kern CKE Counting Scales
48800
Kern CKE Counting Scales
48800
Industry 4.0 Ready • Up to 360,000 Points Resolution • IoT-Compatible
KERN CKE Counting Scales are designed for high-precision counting applications in industrial, production, and logistics settings. With resolutions up to 360,000 points and full Industry 4.0 compatibility, the CKE series delivers reliability and advanced communication for seamless integration into modern workflows.
Each model features intuitive graphic controls, automatic reference weight optimisation, and multi-function KERN Universal Ports (KUP) for optional connections via USB, Bluetooth, WiFi, RS-232, or Ethernet. Ideal for untrained users, the self-explanatory interface reduces errors and improves productivity.
Key Features
- High Counting Resolution: Models offer up to 360,000 points for maximum accuracy

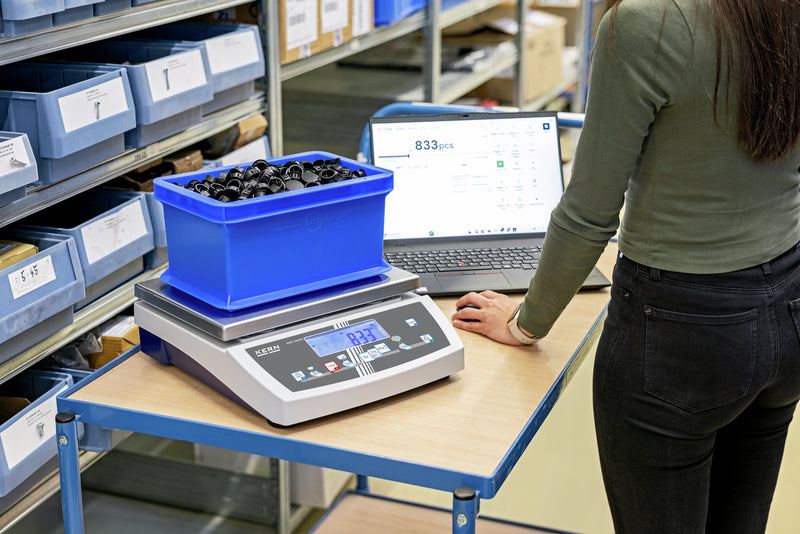

- Industry 4.0 Integration: Compatible with KUP for external connectivity (RS-232, USB, WiFi, Ethernet)
- Visual Interface: Step-by-step user guidance through intuitive graphical control panel

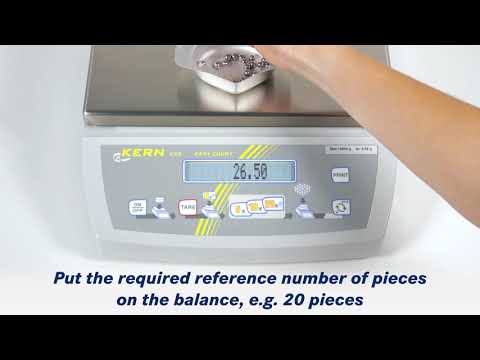

- Versatile Applications: Switch between weighing and counting modes with a single key
- Battery Option: Optional internal rechargeable battery available for mobile use
- Protective Design: Includes working cover and draught shield for sensitive measurements
Model Comparison
| Model | Capacity (kg) | Readability (g) | Min. Part Weight (g) | Counting Resolution | Plate Size (mm) |
|---|---|---|---|---|---|

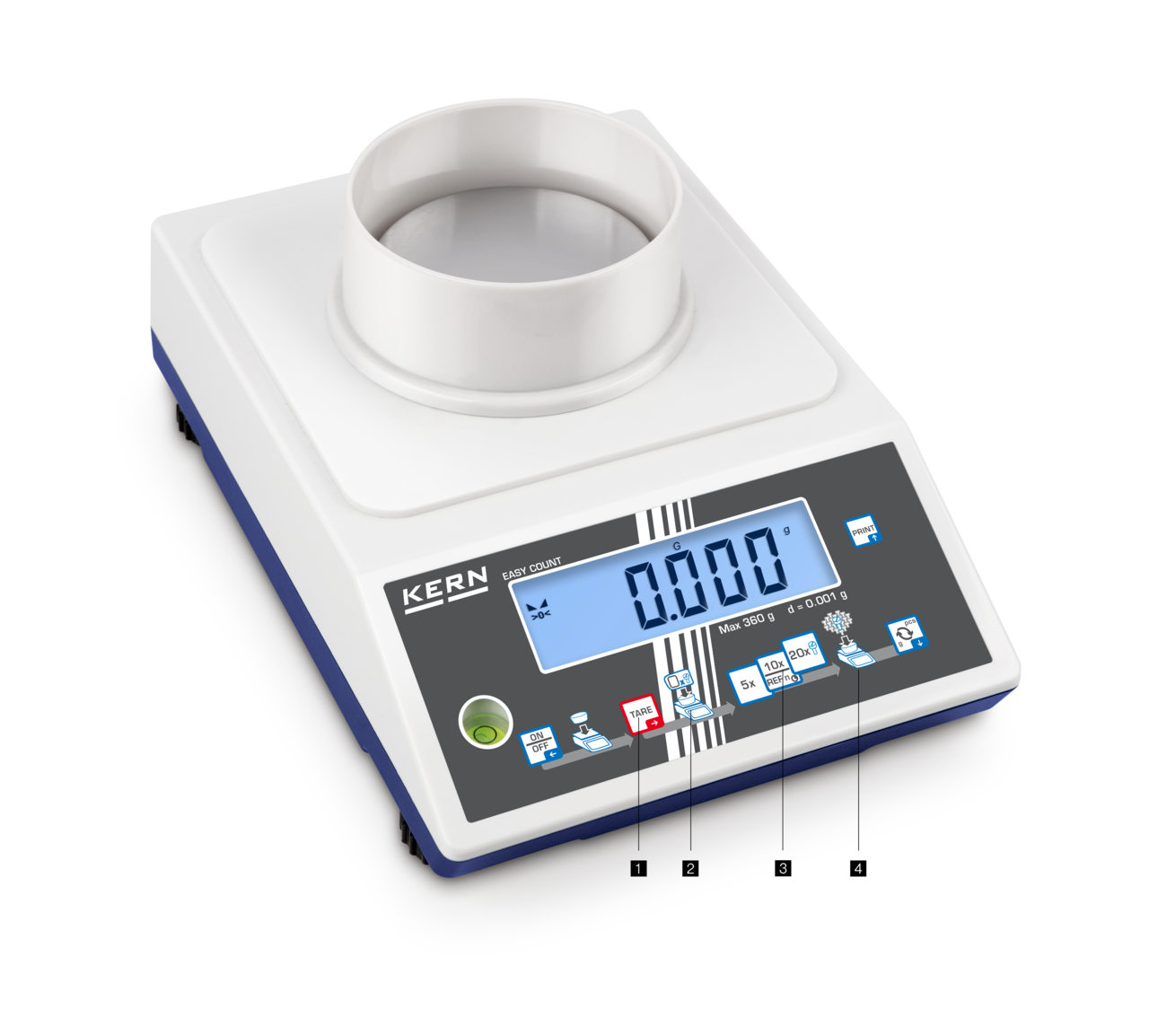

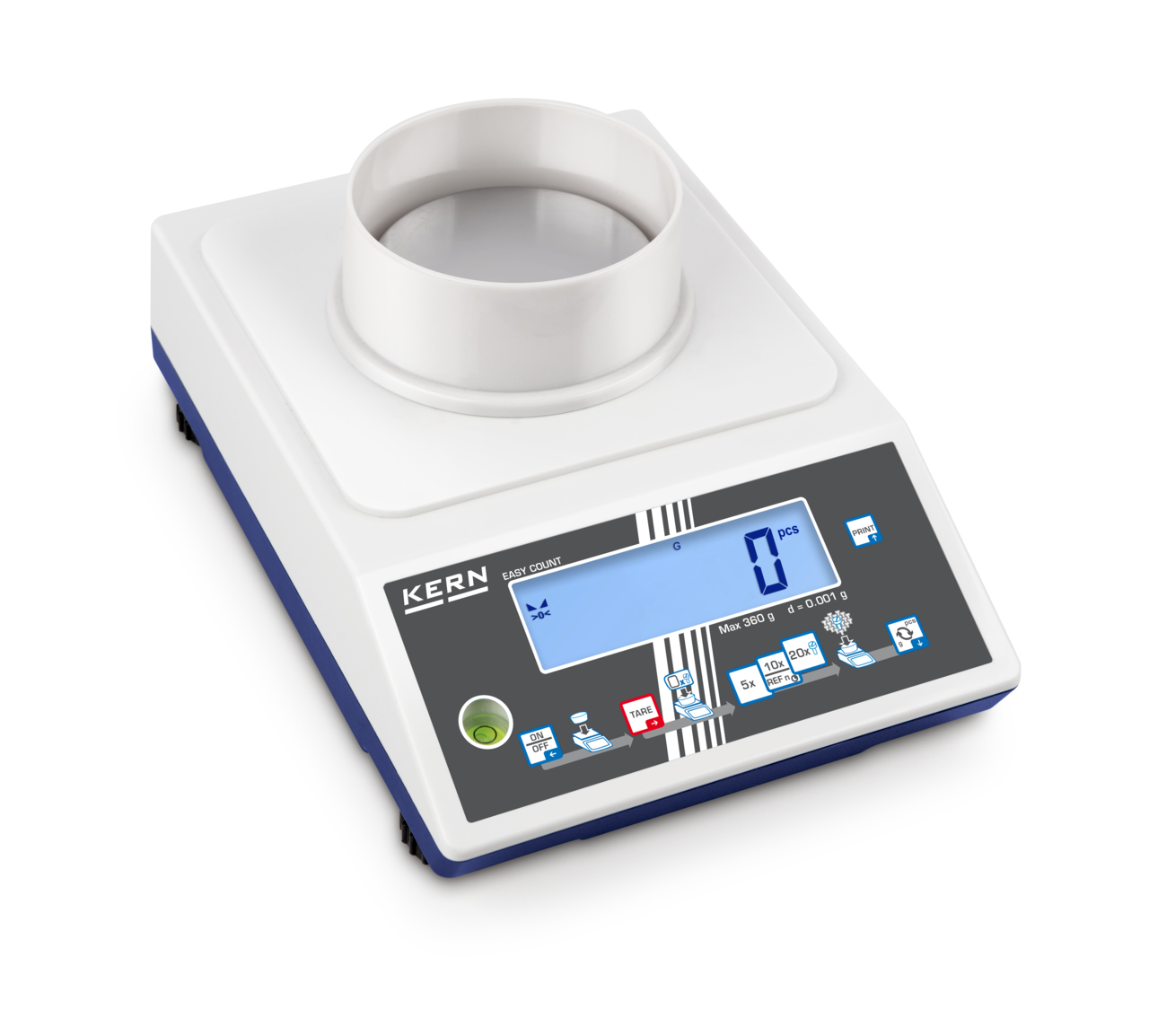

| CKE 360-3 | 0.36 | 0.001 | 0.02 | 180,000 | ⌀ 82 |

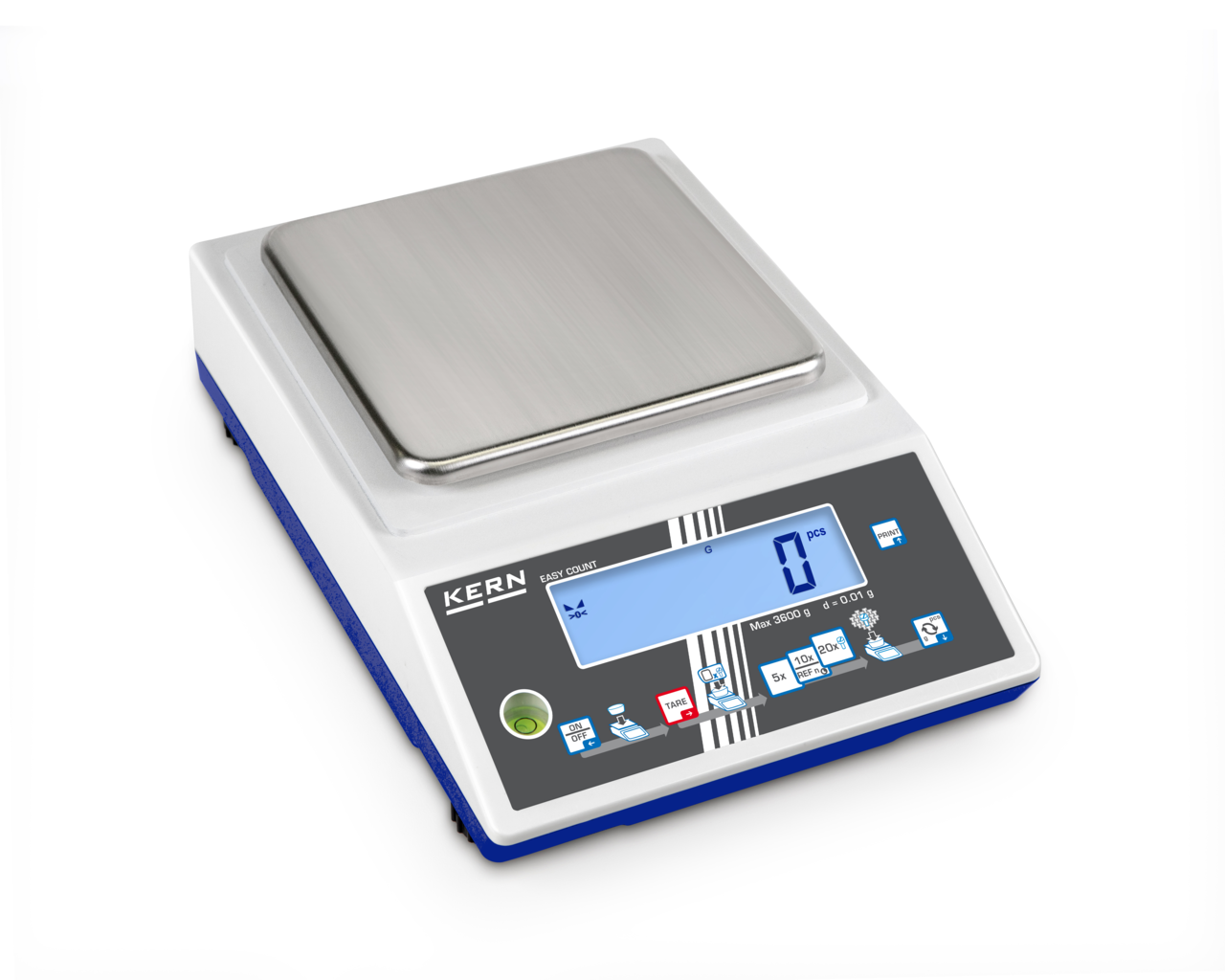

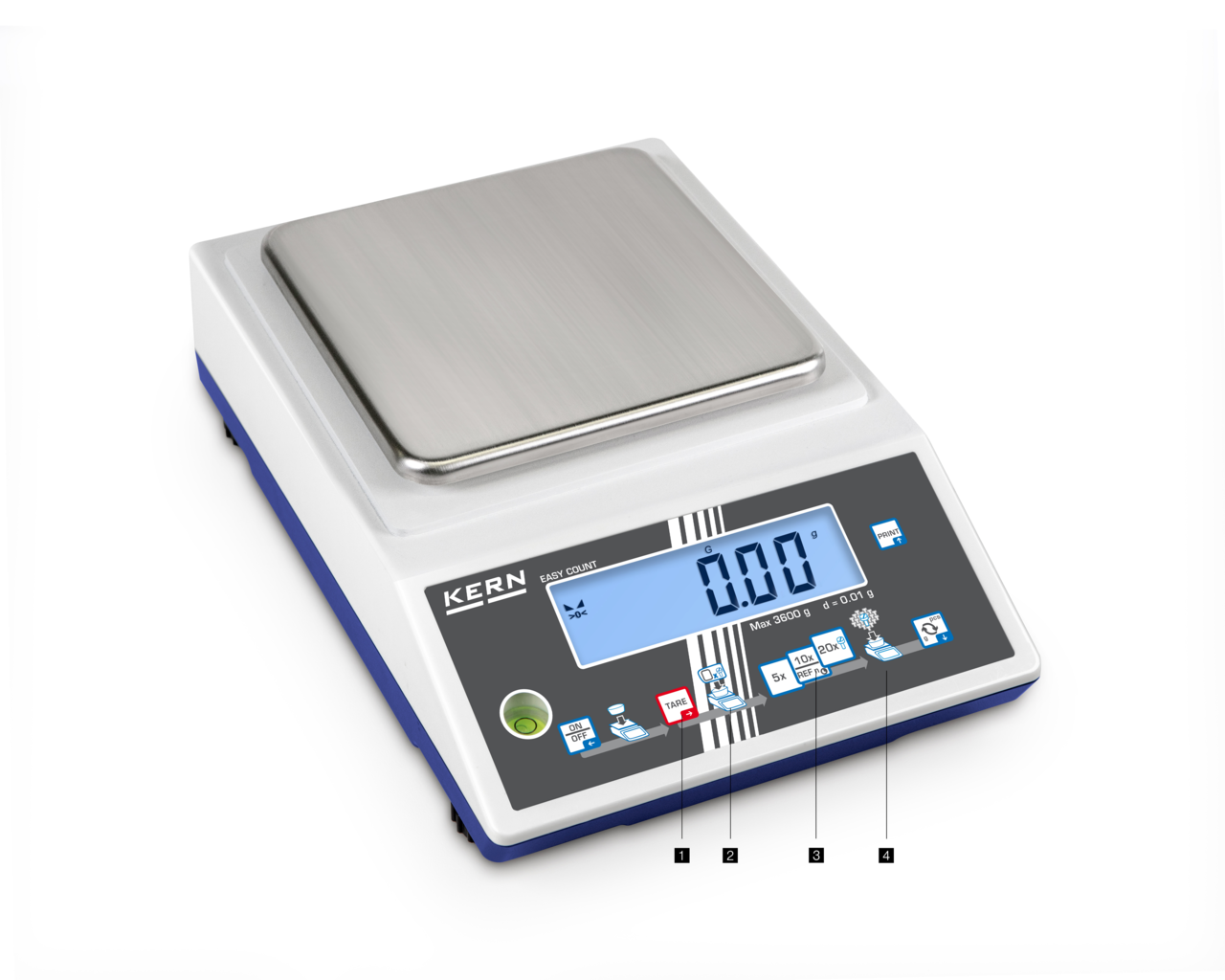

| CKE 3600-2 | 3.6 | 0.01 | 0.2 | 180,000 | 130 × 130 |
| CKE 6K0.02 | 6 | 0.02 | 0.2 | 300,000 | 340 × 240 |

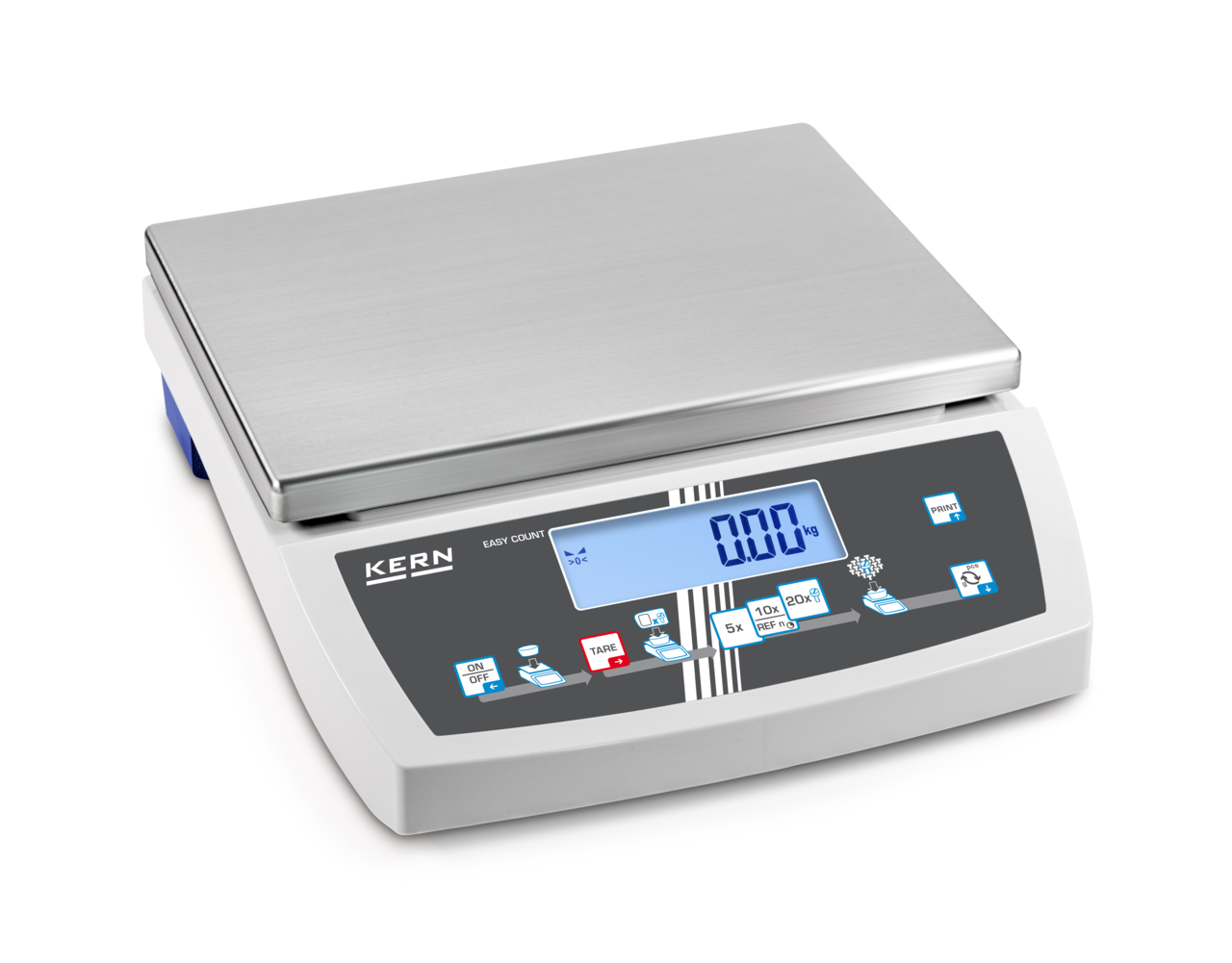

| CKE 8K0.05 | 8 | 0.05 | 0.5 | 160,000 | 340 × 240 |
| CKE 16K0.05 | 16 | 0.05 | 0.5 | 320,000 | 340 × 240 |
| CKE 16K0.1 | 16 | 0.1 | 1 | 160,000 | 340 × 240 |

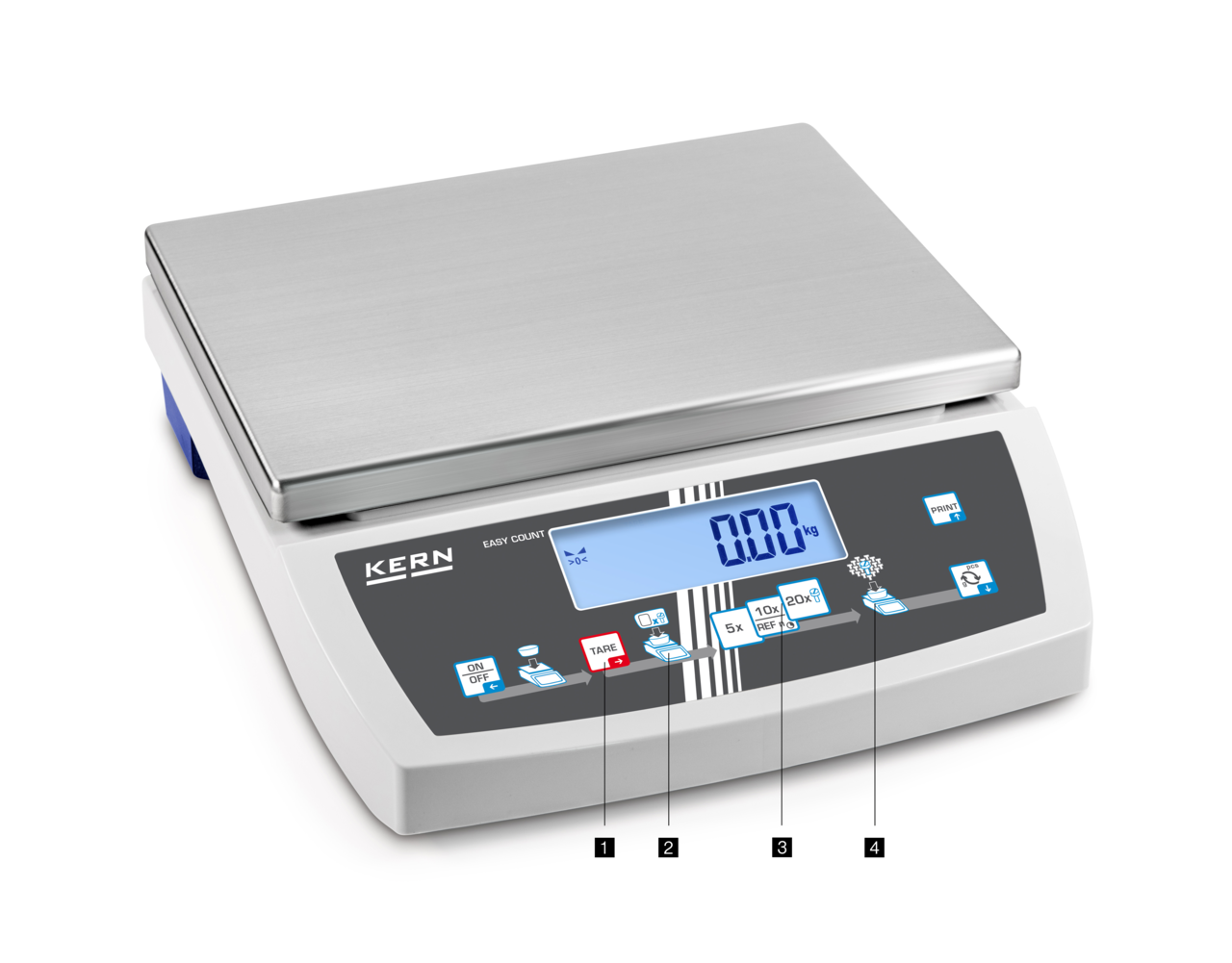

| CKE 36K0.1 | 36 | 0.1 | 1 | 360,000 | 340 × 240 |
| CKE 65K0.2 | 65 | 0.2 | 2 | 325,000 | 340 × 240 |
Additional Information
- Display: Backlit LCD, digit height 25 mm
- Power Supply: Mains powered; optional 4× AA battery or rechargeable battery pack
- KUP Compatibility: Connect RS-232, USB, Bluetooth, WiFi, or Ethernet interfaces
- Operating Temperature: -10 °C to 40 °C
- Construction: Durable housing with protective cover and optional draught shield (plate A)
