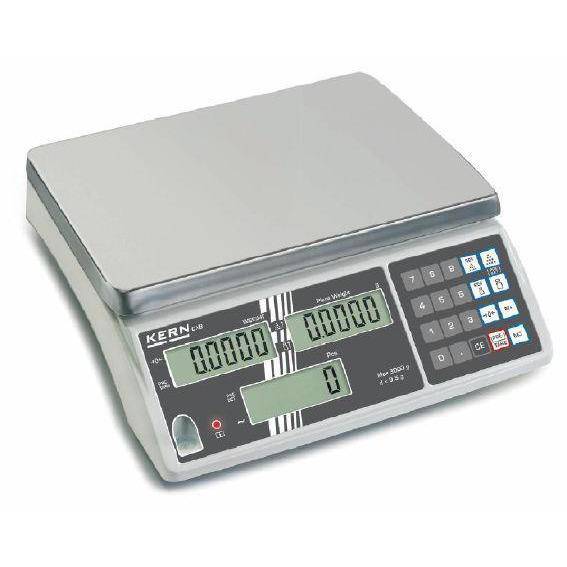

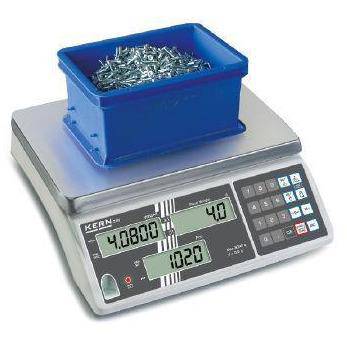

Kern CXB Counting Scales
28400
Kern CXB Counting Scales
28400
30,000-Point Resolution • Compact & Portable • Optional Verification
The Kern CXB Series offers an affordable entry into professional counting, combining portability, high-resolution precision, and optional verification for use in trade. Designed for industries requiring efficient, on-the-go part counting, these scales feature 30,000-point counting resolution and an integrated rechargeable battery for up to 200 hours of mobile operation.
With features like automatic reference weight optimisation, fill-to-target functions, and ESD protection, the CXB is especially suitable for counting small components such as plastic or electronic parts.
Key Features
- High Counting Precision: 30,000-point resolution for accurate piece counting of lightweight items
- Compact Design: Lightweight and robust, ideal for portable use with stainless steel pan
- Dual Modes: Easily switch between counting and weighing with the touch of a button
- Reference Memory: 10 programmable reference weights and running total of piece counts
- Fill-to-Target: Visual and audible alerts when pre-set count or weight is achieved
- Rechargeable Battery: Integrated battery allows up to 200 hours of operation without backlight
- Optional Verification: Models with “NM” suffix are EC type-approved and ready for trade use
- Accessories Included: Comes with a protective working cover
Model Comparison
| Model | Capacity (kg) | Readability (g) | Verification Value (e) | Min Load (g) | Smallest Part Weight (g/piece) | Counting Resolution | Verification |
|---|---|---|---|---|---|---|---|

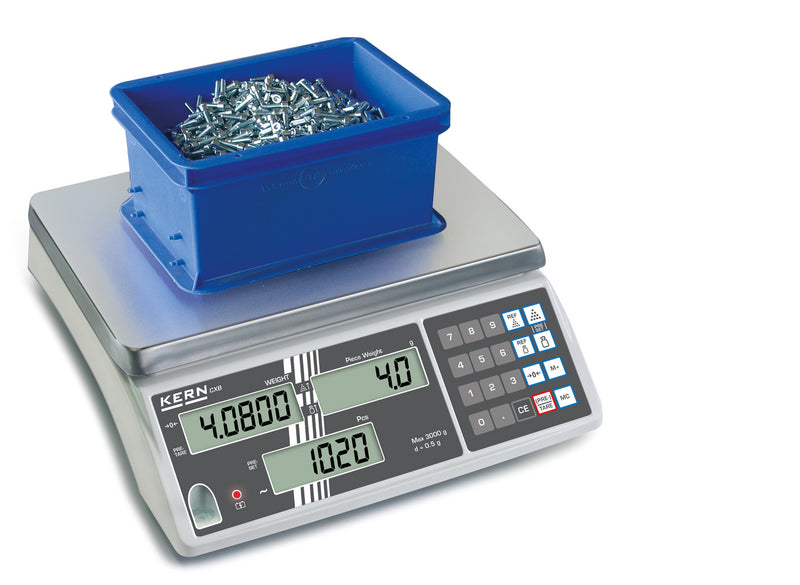

| CXB 3K0.2 | 3 | 0.2 | - | - | 1 | 30,000 | No |
| CXB 6K0.5 | 6 | 0.5 | - | - | 2 | 30,000 | No |
| CXB 15K1 | 15 | 1 | - | - | 5 | 30,000 | No |
| CXB 30K2 | 30 | 2 | - | - | 10 | 30,000 | No |
| CXB 3K1NM | 3 | 1 | 1 | 20 | 1 | 30,000 | Yes |

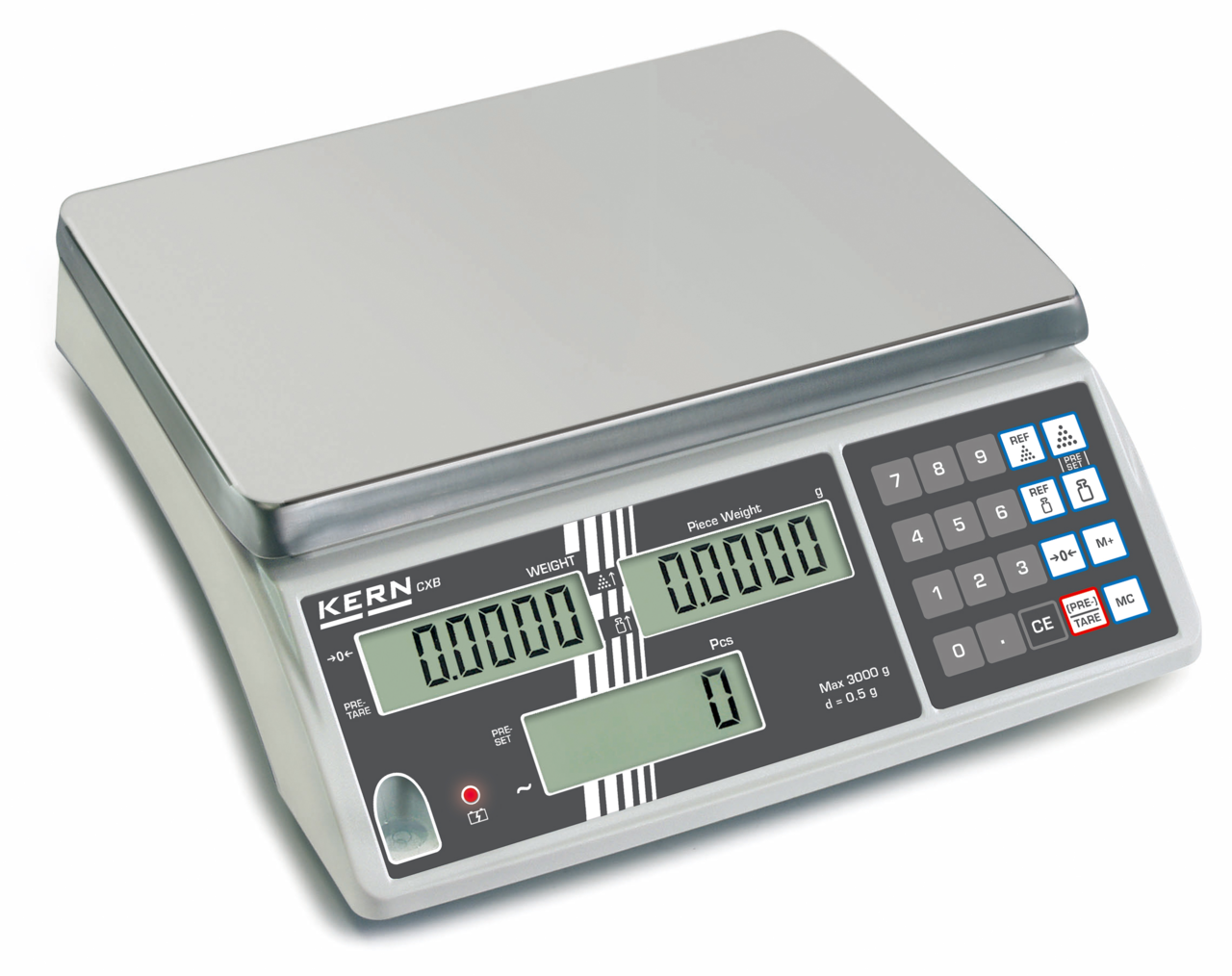

| CXB 6K2NM | 6 | 2 | 2 | 40 | 2 | 30,000 | Yes |
| CXB 15K5NM | 15 | 5 | 5 | 100 | 5 | 30,000 | Yes |
| CXB 30K10NM | 30 | 10 | 10 | 200 | 10 | 30,000 | Yes |
Additional Information
- Display: Large backlit LCD, digit height 18 mm
- Weighing Pan: Stainless steel, 300 × 225 mm
- Power: Integrated rechargeable battery or mains power
- Battery Life: Up to 200 hours without backlight
- Operating Temperature: –10°C to +40°C
- Net Weight: Approx. 4 kg
