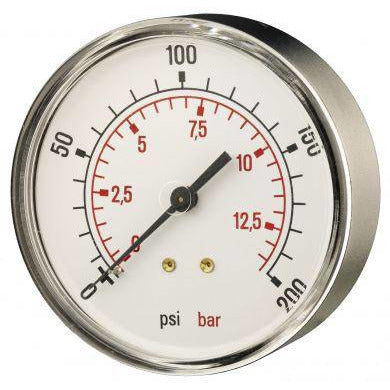

80mm back entry general purpose pressure gauge is suitable for light duty hydraulic and pneumatic applications. Available in ranges from -1 bar to 414 bar (6000) psi. The 80mm back entry general purpose pressure gauge is available with a 1/4" BSP thread as standard and an optional calibration certificate.

Click here to add a connection adapter

Case: Black enamelled steel
Bezel: Push fit window
Window: Acrylic
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 2.5
Scale: Dual psi (outer) + bar (inner).

80mm Back Entry General Purpose Pressure Gauge
3695
