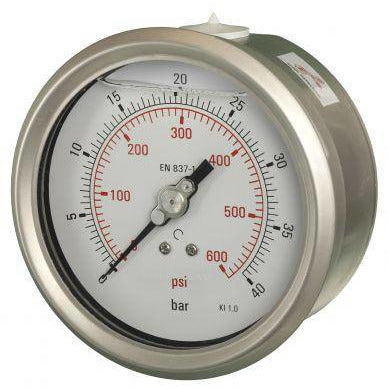

The 100mm back entry glycerine filled pressure gauge is designed for heavy-duty hydraulic and pneumatic applications. Suitable for use in demanding environments, it provides reliable performance and vibration dampening thanks to its glycerine filling.

Available in pressure ranges from -1 bar to 1000 bar (15,000 psi), with a 3/8" BSP thread supplied as standard. An optional calibration certificate can also be provided.

Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Removable bayonet stainless steel
Window: Safety glass
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 1.0
Scale: Dual psi (outer) + bar (inner)
Fill: Bi-distilled glycerine
