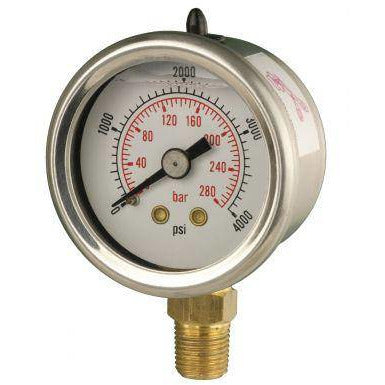

The 40mm bottom entry glycerine filled pressure gauge is built for heavy-duty hydraulic and pneumatic applications. The glycerine filling reduces vibration effects, ensuring reliable and accurate readings in demanding conditions.

Available in ranges from -1 bar to 275 bar (4,000 psi), with a 1/8" BSPT thread supplied as standard. An optional calibration certificate is also available.

Click here to add a connection adapter

Case: 304 Stainless steel
Bezel: Crimped stainless steel
Window: Polycarbonate
Connection: Brass
Sensitive Element: Brass
Movement: Brass
Joints: Soldered silver alloy
Pointer: Black aluminium
Dial: Stoved enamel on aluminium
Accuracy: Class 2.5
Scale: Dual psi (outer) + bar (inner)
Fill: Bi-distilled glycerine
