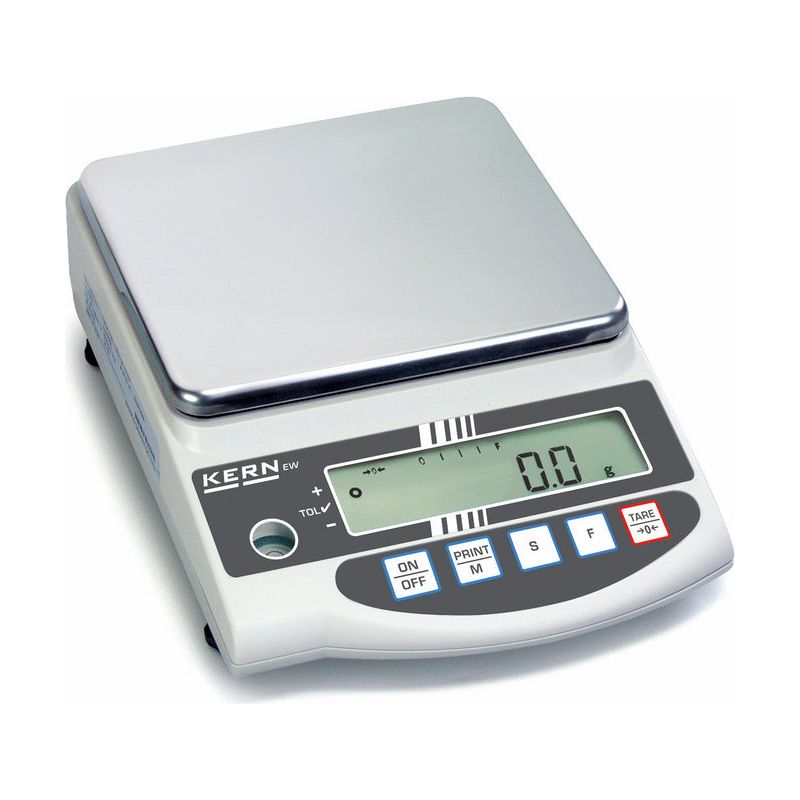

Kern EW-N / EG-N Precision Scales
78089
Kern EW-N / EG-N Precision Scales
78089
Fast, stable weighing with tuning fork sensor
The Kern EW and EG Series precision balances are designed for dependable, high-accuracy weighing in laboratory and industrial environments. They feature a robust tuning fork measuring system for rapid stabilization and reliable results, making them ideal for repetitive and time-sensitive tasks.
The EG series includes internal adjustment, ensuring precision regardless of location or environmental changes. The EW series requires external calibration and is optimized for budget-conscious users who still need professional-grade performance. Both series come with compact, durable housing, a large LCD display, and optional accessories including draft shields and rechargeable batteries.
Key Features
- Weighing capacities: From 220 g to 12,000 g, with readabilities as fine as 0.001 g
- Tuning fork technology: Stable, fast, and shock-resistant with excellent corner load performance
- Display: Large LCD with 17 mm digit height and bar graph capacity indicator
- Applications: Includes counting, percent weighing, totalizing, and underfloor weighing (accessory)
- Connectivity: RS-232 port for data transmission and printer output
- Adjustable models: EG series with internal temperature/time-controlled calibration
- Accessories: Optional draft shields, rechargeable batteries, working covers, and qualification packages
Model Comparison
| Model | Capacity (g) | Readability (g) | Linearity (g) | Plate Size (mm) | Calibration |
|---|---|---|---|---|---|
| EW 220-3NM | 220 | 0.001 | ±0.002 | Ø118 (A) | External |
| EW 420-3NM | 420 | 0.001 | ±0.003 | Ø118 (A) | External |
| EW 620-3NM | 620 | 0.001 | ±0.003 | Ø118 (A) | External |
| EW 820-2NM | 820 | 0.01 | ±0.01 | 170×140 (B) | External |
| EW 2200-2NM | 2200 | 0.01 | ±0.01 | 180×160 (C) | External |
| EW 4200-2NM | 4200 | 0.01 | ±0.02 | 180×160 (C) | External |
| EW 6200-2NM | 6200 | 0.01 | ±0.03 | 180×160 (C) | External |
| EW 12000-1NM | 12000 | 0.1 | ±0.2 | 180×160 (C) | External |
| EG 220-3NM | 220 | 0.001 | ±0.002 | Ø118 (A) | Internal |
| EG 420-3NM | 420 | 0.001 | ±0.003 | Ø118 (A) | Internal |
| EG 620-3NM | 620 | 0.001 | ±0.004 | Ø118 (A) | Internal |
| EG 2200-2NM | 2200 | 0.01 | ±0.01 | 180×160 (C) | Internal |
| EG 4200-2NM | 4200 | 0.01 | ±0.02 | 180×160 (C) | Internal |
Additional Information
-
Calibration types:
- EW models: External calibration using test weights (not included)
- EG models: Internal motor-driven calibration activated by temperature/time change
-
Plate size codes:
- A: Ø118 mm round plate
- B: 170×140 mm rectangular
- C: 180×160 mm rectangular

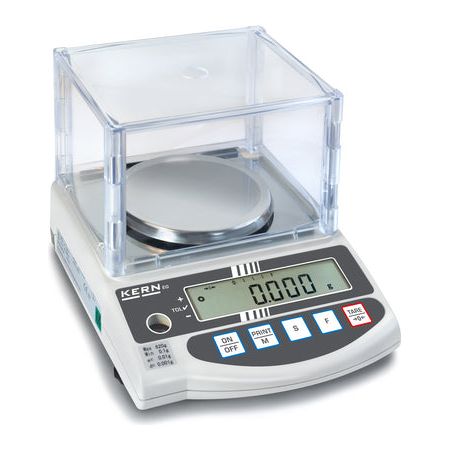

- Draftshield: Supplied standard with A-plate models
- Use case: Ideal for precise lab work, piece counting, and quality control workflows
