Kern PCB Precision Scales
29960
Kern PCB Precision Scales
29960
Compact, accurate, and ideal for labs
The Kern PCB Series precision balances are designed to deliver accurate and repeatable measurements for a variety of applications in laboratory, industrial, and educational settings. With capacities ranging from 100 g to 10,000 g and readabilities from 0.001 g to 1 g, these balances offer a combination of performance and value.
Featuring a compact design, intuitive user interface, and external calibration, the PCB series ensures ease of operation and reliable performance. The balances are constructed with a durable plastic housing and stainless steel weighing pan for long-term durability.
Key Features
- High accuracy: Readabilities from 0.001 g to 1 g for precise measurements
- Calibration: External calibration using standard weights for verification and adjustment
- Comprehensive applications: Supports weighing, parts counting, percentage weighing, and net-total formulation

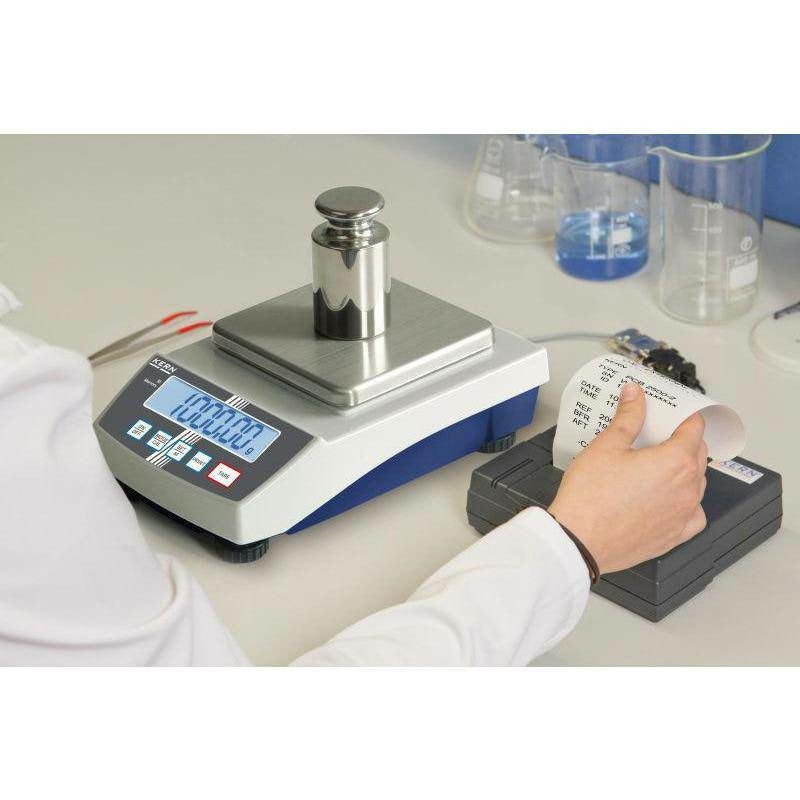

- GLP/ISO compliance: Printouts include date and time for data tracking
- Connectivity: RS-232 interface for quick connection to computers and printers
- Power options: Operates on mains power or 9V battery for portable use
Model Comparison
| Model | Capacity (g) | Readability (g) | Repeatability (g) | Linearity (g) | Weighing Pan (mm) |
|---|---|---|---|---|---|

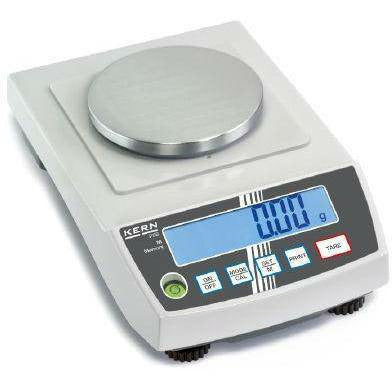

| PCB 100-3 | 100 | 0.001 | 0.001 | ±0.003 | Ø 81 |
| PCB 250-3 | 250 | 0.001 | 0.001 | ±0.005 | Ø 81 |

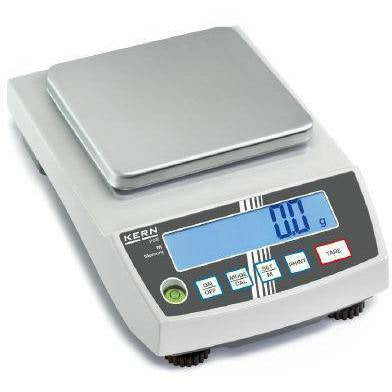

| PCB 1000-2 | 1000 | 0.01 | 0.01 | ±0.03 | 130 × 130 |
| PCB 2500-2 | 2500 | 0.01 | 0.01 | ±0.03 | 130 × 130 |
| PCB 3500-2 | 3500 | 0.01 | 0.01 | ±0.03 | 130 × 130 |

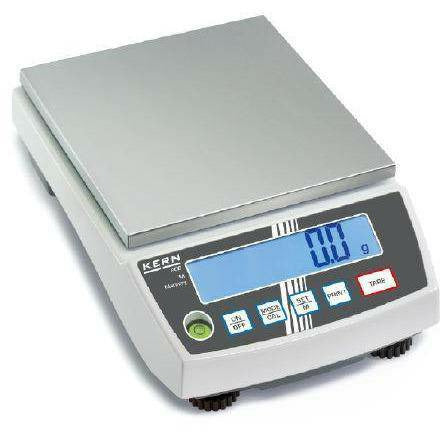

| PCB 6000-1 | 6000 | 0.1 | 0.1 | ±0.3 | 150 × 170 |
| PCB 10000-1 | 10000 | 0.1 | 0.1 | ±0.3 | 150 × 170 |
Additional Information
- Calibration: All models require external calibration using standard weights (sold separately)

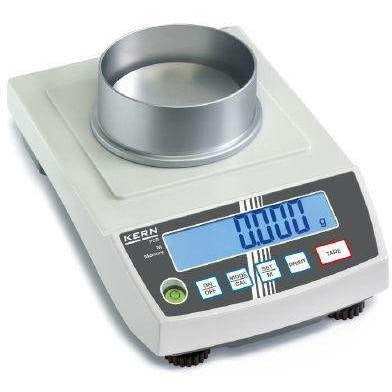

- Draftshield: Models with Ø 81 mm pans include a ring-shaped draftshield for protection from air currents
- Construction: Durable plastic housing with stainless steel weighing pan
- Connectivity: RS-232 interface for efficient data transfer
- Power supply: Operates on mains power or 9V battery for flexible use
Accessories (Optional)
- Standard weights: For external calibration
- RS-232 cables: For PC or printer connection
- Replacement draftshields: For Ø 81 mm models
