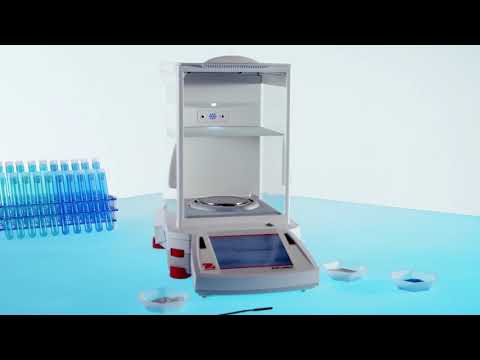

Ohaus Explorer EX Analytical Balances
423340
Analytical, AutoCal™ calibration, and modular touchscreen control

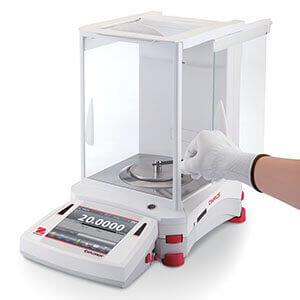

The OHAUS Explorer™ Analytical Balances are designed to provide accurate and reliable measurements for a wide range of applications in laboratory, industrial, and educational settings. With capacities ranging from 120 g to 320 g and a readability of 0.1 mg, these balances combine cutting-edge technology with user-friendly features to enhance productivity and ensure compliance with GLP/GMP standards.
Key Features
- High Accuracy: Readability of 0.1 mg ensures precise measurements for analytical tasks.
- AutoCal™: Automatic internal calibration triggered by temperature or time changes to maintain consistent accuracy.

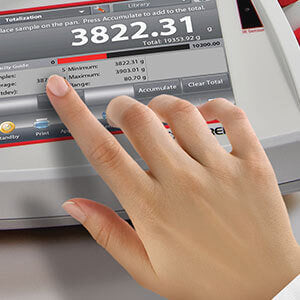

- Colour Touchscreen: 5.7-inch full-colour VGA touchscreen with user-controlled brightness for easy operation.
- Modular Design: Detachable terminal with a 1.5 m cable allows flexible positioning and reduces vibration interference.

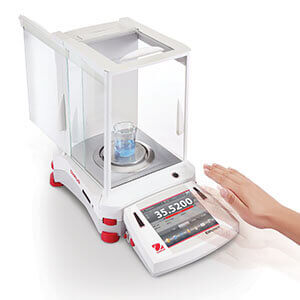

- Touchless Sensors: Up to four programmable IR sensors enable hands-free operation to minimize contamination.
- Connectivity: Standard RS232 and USB ports; optional second RS232 or Ethernet interface available.
- GLP/GMP Compliance: Real-time clock, user management with password protection, and data output capabilities.

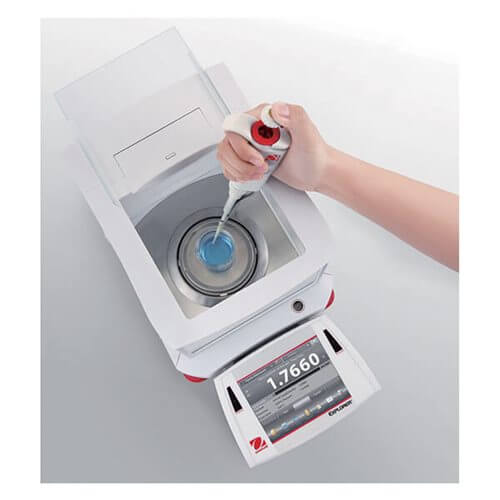

- Advanced Applications: Supports weighing, parts counting, percent weighing, checkweighing, dynamic weighing, formulation, density determination, peak hold, ingredient costing, pipette adjustment, and statistical quality control.
Model Suffixes Explained
- Models ending in ‘M’: Certified for legal-for-trade use (NTEP approved).

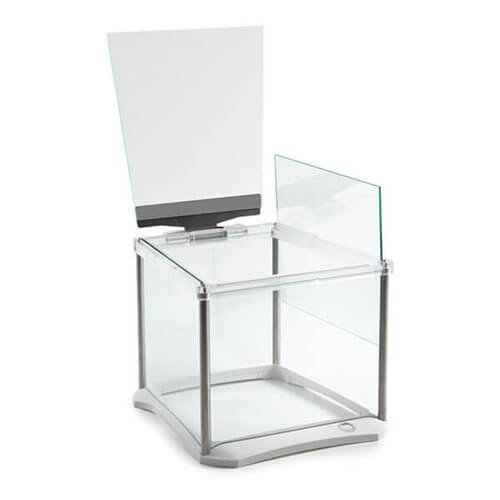

- Models ending in ‘/AD’: Include motorized automatic doors for touch-free draftshield operation.
OHAUS Explorer Analytical Series – Model Comparison
| Model | Capacity (g) | Readability (mg) | Certified Readability (mg) | Pan Size (mm) | Calibration | Auto Door | Legal for Trade |
|---|---|---|---|---|---|---|---|
| EX124 | 120 | 0.1 | – | 90 | AutoCal™ | No | No |
| EX124/AD | 120 | 0.1 | – | 90 | AutoCal™ | Yes | No |
| EX224 | 220 | 0.1 | – | 90 | AutoCal™ | No | No |
| EX224M | 220 | 0.1 | 1 | 90 | AutoCal™ | No | Yes |
| EX224/AD | 220 | 0.1 | – | 90 | AutoCal™ | Yes | No |
| EX224M/AD | 220 | 0.1 | 1 | 90 | AutoCal™ | Yes | Yes |
| EX324 | 320 | 0.1 | – | 90 | AutoCal™ | No | No |
| EX324M | 320 | 0.1 | 1 | 90 | AutoCal™ | No | Yes |
| EX324/AD | 320 | 0.1 | – | 90 | AutoCal™ | Yes | No |
| EX324M/AD | 320 | 0.1 | 1 | 90 | AutoCal™ | Yes | Yes |
Additional Information
- Calibration: All models feature AutoCal™ automatic internal calibration.
- Auto Door: Models with the '/AD' suffix include motorized automatic doors for hands-free draftshield operation.
- Legal for Trade: Models ending with ‘M’ are certified for commercial use (NTEP approved).
