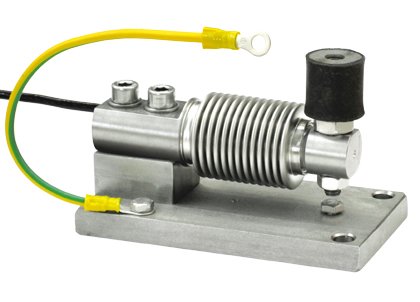

Laumas TFCFSB Load Cell Mounting Kit
6600
Laumas TFCFSB Load Cell Mounting Kit
6600
Mounting Kit for Bending Beam Load Cells
The Laumas TFCFSB Mounting Kit is designed for use with FCK and FCOL series load cells in applications up to 300 kg. Featuring a stainless steel and rubber compression joint, it provides stable, safe, and accurate load cell installation.
Its compact, durable build simplifies setup, protects the load cell during transport and installation, and compensates for misalignment of support plates.
Key Features
- Max Load Capacity: Handles static loads up to 300 kg.
- Compatible Load Cells: Designed for FCK and FCOL bending beam load cells.
- Durable Build: Lower plate and block in AISI 304 stainless steel for longevity.
- Compression Joint: Stainless steel and rubber joint ensures stability and safety.
- Damage Protection: Locking screw avoids strain during transport and setup.
- Flexible Use: Supports systems with at least 3 supports.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TFCFSB |
| Max Static Load | 300 kg |
| Compatible Load Cells | FCK, FCOL |
| Net Weight | 1.2 kg |
| Material | AISI 304 stainless steel + rubber joint |
| Locking Screw | Prevents damage during transport & installation |
| Mounting Requirement | Suitable for systems with at least 3 supports |
Ideal Applications
- Industrial weighing systems up to 300 kg capacity.
- Precision weighing platforms using bending beam load cells.
- Systems requiring robust, stainless steel mounting solutions.
Frequently Asked Questions
Which load cells are compatible?
The TFCFSB kit is compatible with FCK and FCOL bending beam load cells.
What is the maximum supported load?
It supports up to 300 kg static load.
Does the kit include the load cell?
No. The load cell must be purchased separately.
What materials are used?
AISI 304 stainless steel for the plates and block, plus a rubber compression joint.
What is the function of the locking screw?
It prevents damage during transport and installation.
Downloads & Resources
Included: Mounting kit only (load cell not included). | Warranty: Standard Laumas warranty applies. | Compliance: CE marked.
