Laumas TFCGP Load Cell Mounting Kit
8800
Laumas TFCGP Load Cell Mounting Kit
8800

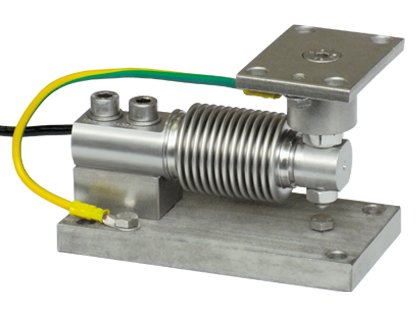

Laumas TFCGP Mounting Kit for Bending Beam Load Cells
The Laumas TFCGP Mounting Kit is designed for FCK and FCOL series load cells in applications up to 300 kg. Featuring an upper plate with stainless steel and rubber compression joint, it ensures secure and stable load cell installation.
Built with AISI 304 stainless steel lower plate and block, the kit provides durability, compensates for support plate misalignments, and protects the load cell during transport and setup.
Key Features
- Max Load Capacity: Supports static loads up to 300 kg.
- Compatible Load Cells: For FCK and FCOL bending beam load cells.
- Robust Design: Upper and lower plates in AISI 304 stainless steel.
- Compression Joint: Stainless steel and rubber joint for secure mounting.
- Damage Prevention: Locking screw protects load cell during transport.
- Flexible Setup: Suitable for systems with at least 3 supports.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TFCGP |
| Max Static Load | 300 kg |
| Compatible Load Cells | FCK, FCOL |
| Net Weight | 1.3 kg |
| Material | AISI 304 stainless steel + rubber joint |
| Locking Screw | Prevents damage during transport & installation |
| Mounting Requirement | Designed for systems with ≥3 supports |
Ideal Applications
- Industrial weighing systems up to 300 kg.
- Precision weighing platforms with bending beam load cells.
- Environments needing robust, stainless steel mounting kits.
Frequently Asked Questions
Which load cells are compatible?
The TFCGP kit is compatible with FCK and FCOL bending beam load cells.
What is the maximum supported load?
It supports up to 300 kg static load.
Does this kit include the load cell?
No. The load cell must be ordered separately.
What materials are used?
Plates and block in AISI 304 stainless steel, with a stainless steel/rubber compression joint.
How does it protect the load cell?
The locking screw prevents strain and damage during transport and installation.
Downloads & Resources
Included: Mounting kit only (load cell not included). | Warranty: Standard Laumas warranty applies. | Compliance: CE marked.
