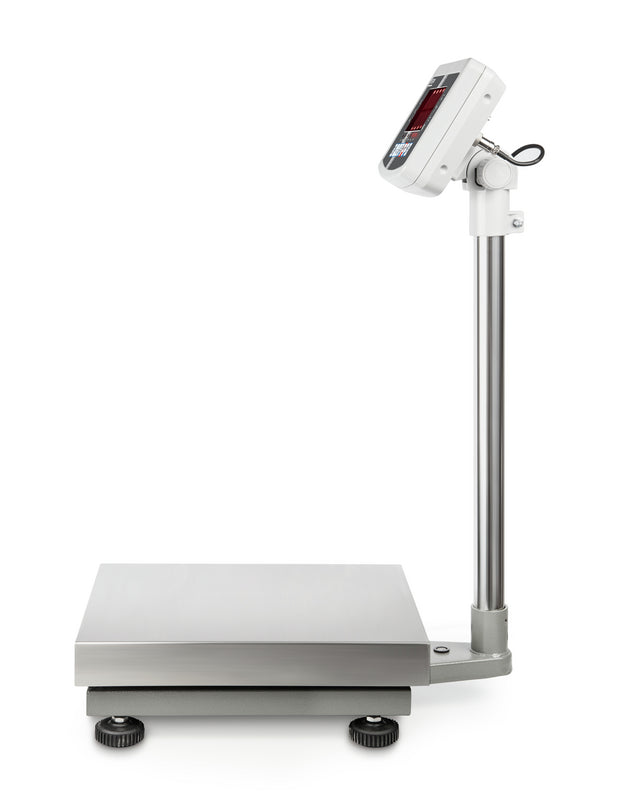

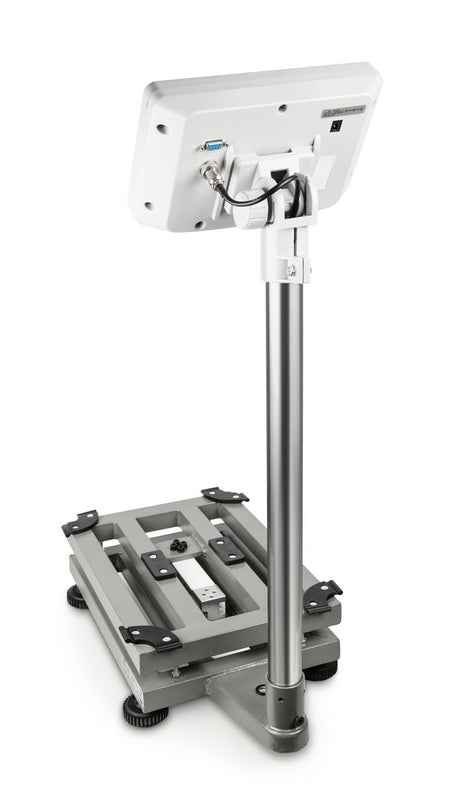

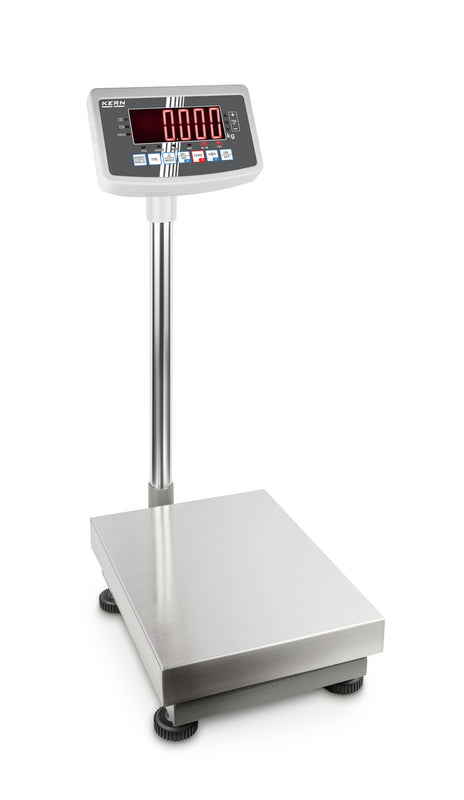

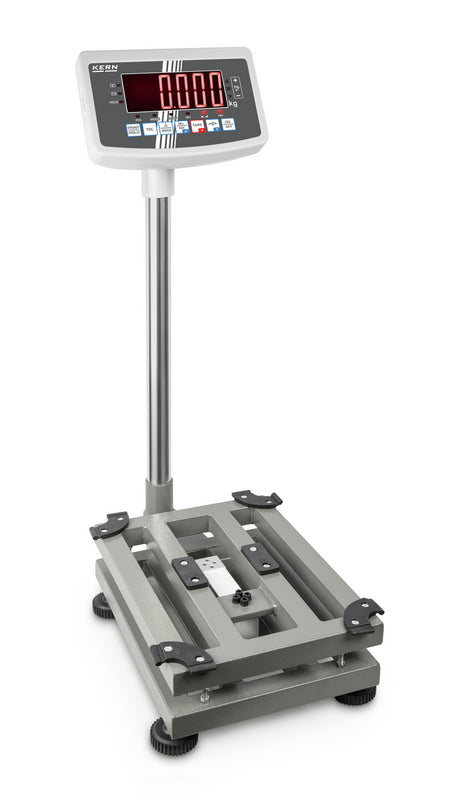

Kern EFC Platform Scales
32000
Kern EFC Platform Scales
32000
Industrial Robustness with Battery & Smart IoT Options
The Kern EFC series offers flexible and durable single‑range platform scales with integrated rechargeable battery, column or display mount, and fast LED readout—all designed for industrial, logistics, or workshop environments.
Available from 30 kg to 300 kg capacities with 0.002 kg to 0.02 kg readability, EFC scales support weighing, checkweighing, parts counting and totalising. RS‑232 connectivity is standard, and the rechargeable battery ensures mobility across locations.
Key Features
- Rechargeable Battery: Up to 50 h runtime for portable use
- Fast LED Display: 52 mm digits, stabilises in ~2 s {index=2}
- Multiple Functions: Weighing, checkweighing with tolerance signals, parts counting, totalising
- Solid Build: Stainless steel platform, painted steel base, compact footprint
- Industry‑Standard Interface: RS‑232 included, optional traceable calibration available
Model Comparison
| Model | Capacity | Readability | Platform |
|---|---|---|---|
| EFC 30K‑3 | 30 kg | 0.002 kg | 400 × 300 × 124 mm |
| EFC 60K‑3 | 60 kg | 0.005 kg | 400 × 300 × 124 mm |
| EFC 60K‑3L | 60 kg | 0.005 kg | 500 × 400 × 120 mm |
| EFC 100K‑3 | 150 kg | 0.01 kg | 500 × 400 × 120 mm |
| EFC 100K‑3L | 150 kg | 0.01 kg | 500 × 400 × 120 mm |
| EFC 300K‑2 | 300 kg | 0.02 kg | 600 × 500 × 140 mm |
Additional Information
- Operating Temp: 0 °C ‑ 40 °C
- Platform: Stainless steel, painted steel base for durability
- Calibration: External weights, optional traceable calibration available
- Functions: Tare, tolerance signals, count, sum, stable weigh term
- Interfaces: RS‑232 standard; traceable calibration request at purchase
