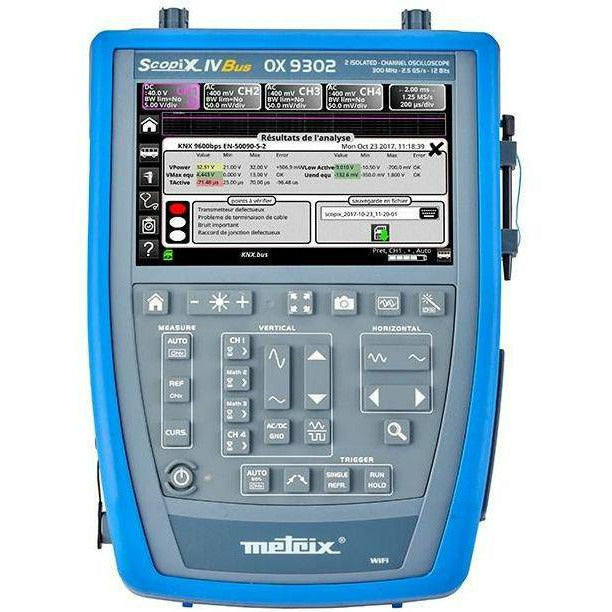

Chauvin Arnoux OX9302-2 300Mhz Channel FIELDBUS Oscilloscope
541800
Chauvin Arnoux OX9302-2 300Mhz Channel FIELDBUS Oscilloscope
541800
Including a free test certificate
4 steps to qualify a data bus
- Verification of the transmission quality of signals using fieldbus protocols: KNX, DALI, CAN, LIN, FlexRay, AS-i, Profibus, RS-485, RS-232, ETHERNET, etc.
- Intuitive, upgradable Human-Machine Interface
- Multi-interface communication
The ergonomics of the OX9302-2 300Mhz Channel FIELDBUS Oscilloscope has been designed to simplify their use.
In a casing tailor-made to be as compact as possible, the external mechanical design of the SCOPIX IV makes it possible to integrate the hardware components in a very small volume, while the keypad benefits from a new technology developed in the automotive industry.
The OX9302-2 300Mhz Channel FIELDBUS Oscilloscope SCOPIX IV BUS function can be used to perform the electrical measurements needed to assess the integrity of the fieldbuses, or in other words the operation of the physical layer (electrical specifications, synchronization, etc.), according to the applicable standards.
4 steps for quick simple diagnosis
- Choice of the bus to be analysed
- Display of the measurement tolerances
- Analysis
- Results of the analysis
