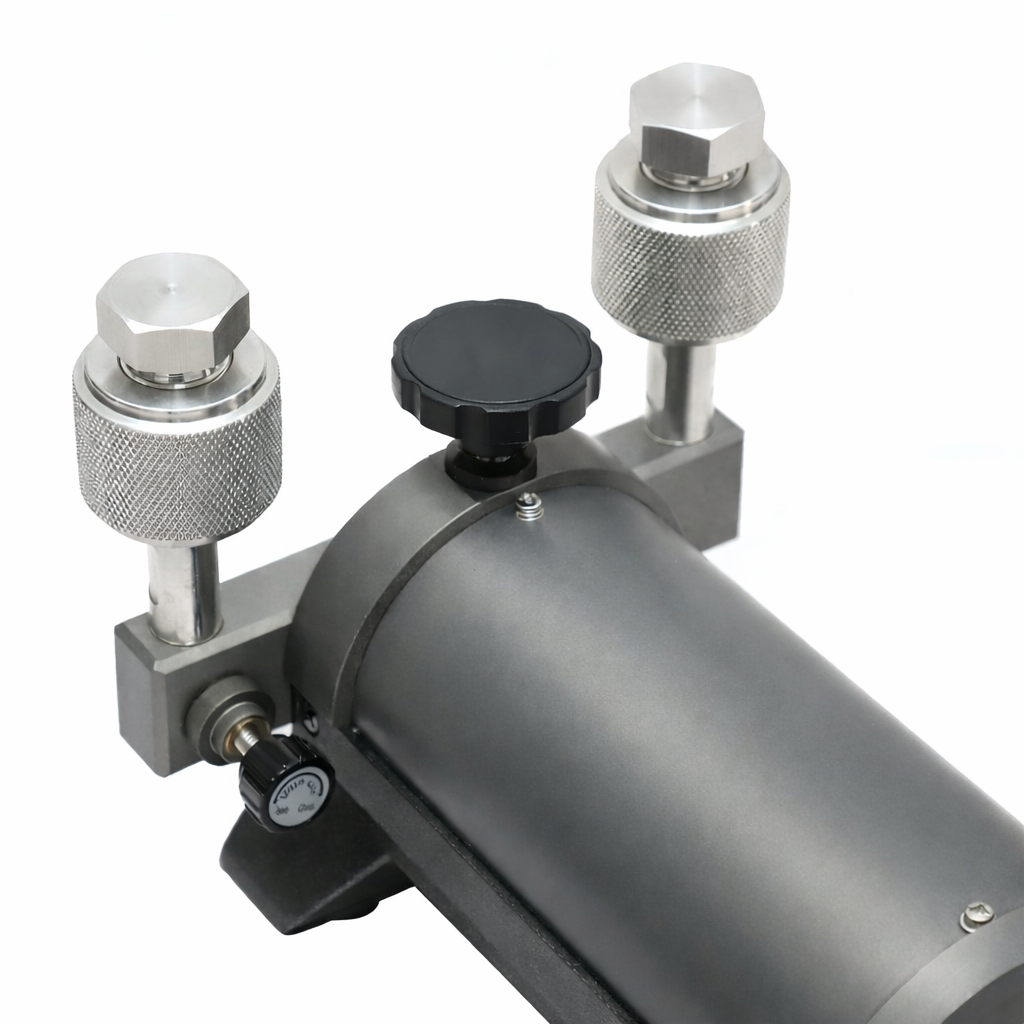

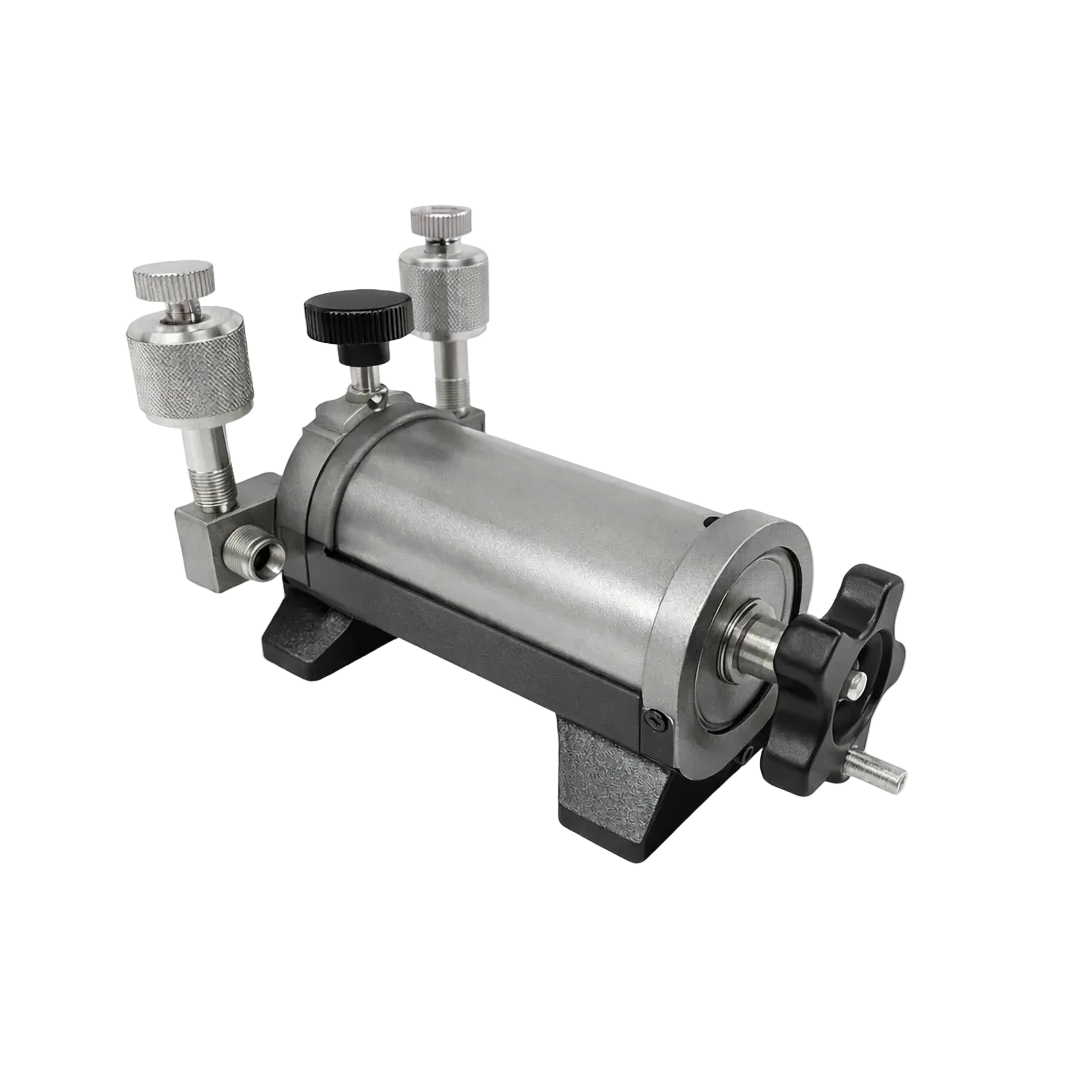

212C Low Pressure Test Pump for Pneumatic Calibration & Differential Pressure Testing
The 212C Low Pressure Test Pump is a high-precision pneumatic handheld pressure generator designed for low pressure calibration applications. It provides stable micro-pressure output from -0.5 to 0.5 bar (-7 to 7 psi), making it ideal for calibrating differential pressure gauges, pressure transmitters, sensors and low-pressure (vacuum) instruments.
Manufactured with a durable, anodised surface treatment, the 212C is wear-resistant and scratch-resistant for long-term industrial use. Its lightweight construction, fine adjustment control and quick connector system make it suitable for laboratory, workshop and on-site calibration tasks.
Key Features
- Low Pressure Generation: Stable output from -0.5 to 0.5 bar (-7 to 7 psi).
- Fine Adjustment Control: Precision adjustment screw with 0.01 Pa resolution.
- Excellent Pressure Stability: Designed for accurate differential and micro-pressure calibration.
- Quick Connector System: Fast and secure connection to the device under test.
- Lightweight & Portable: Suitable for laboratory and field calibration use.
- Durable Construction: Hard anodised treatment for enhanced wear and scratch resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 212C |
| Pressure Range | -0.5 to 0.5 bar (-7 to 7 psi) |
| Fine Adjustment | 0.01 Pa resolution |
| Medium | Air |
| Dimensions | 240 × 130 × 130 mm |
| Weight | 1.5 kg |
| Output Threads | M20 × 1.5, 1/4 NPT, 1/4 BSP, 1/2 NPT, 1/2 BSP Female (confirm thread type when ordering) |
| Accessories | Output O-rings and repair kits available |
| Warranty | 1 Year |
Applications
- Differential Pressure Gauge Calibration – Suitable for low range DP instruments.
- Pressure Transmitter Calibration – Ideal for pneumatic transmitter verification.
- Vacuum Instrument Testing – Micro-pressure and vacuum calibration tasks.
- Laboratory & Field Use – Compact design for portable calibration applications.
