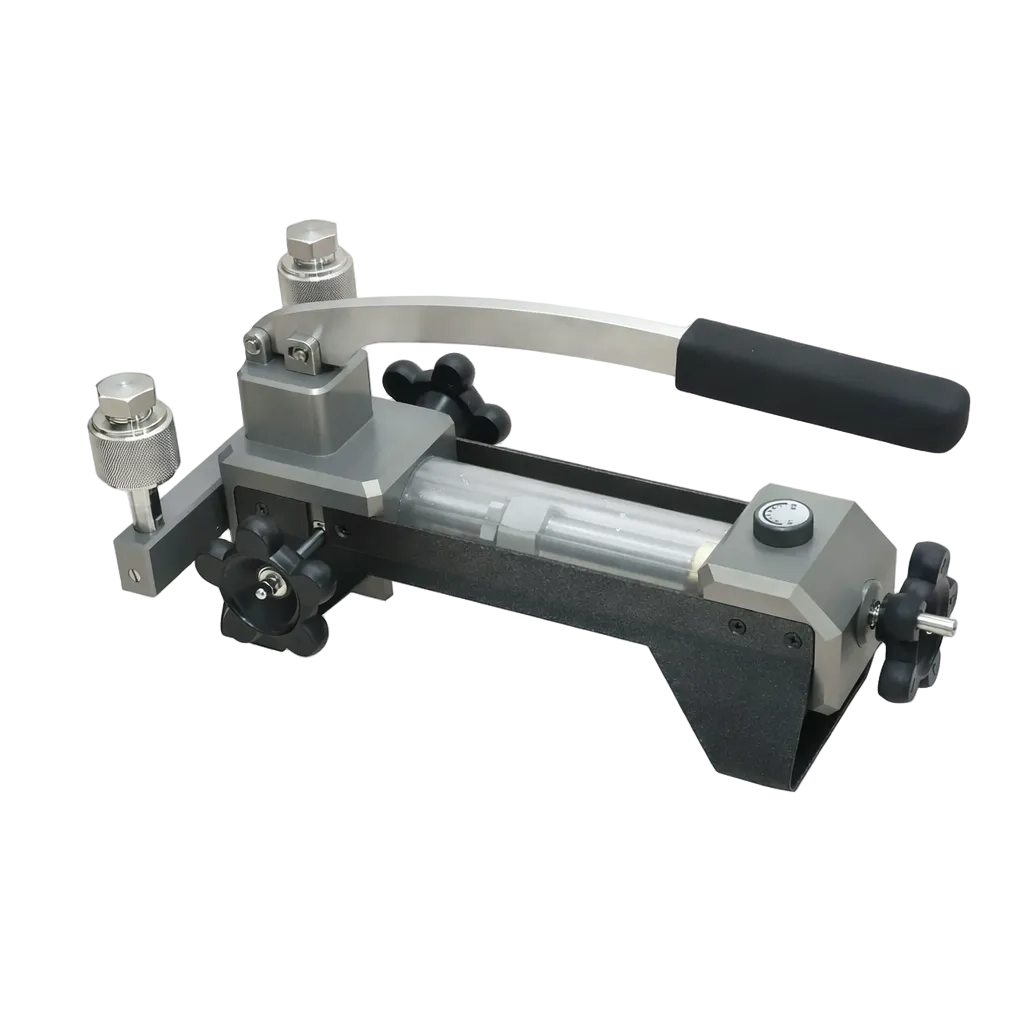

214L Hydraulic Pressure Test Pump for Calibration up to 700 Bar (10,000 psi)
The 214L Hydraulic Pressure Test Pump is a high-pressure manual hydraulic generator designed for precision calibration applications. It generates stable pressure from 0 to 700 bar (0 to 10,000 psi), making it suitable for high-pressure gauge and transmitter calibration.
The 214L is available in two media versions: one for mineral oil and one for distilled water, allowing compatibility with different calibration requirements and cleanliness standards. Its robust construction and reinforced lever mechanism enable efficient pressure generation while maintaining excellent stability and control.
Designed for both field and laboratory use, the 214L is ideal for calibrating pressure gauges, pressure transmitters, pressure sensors and other high-pressure instruments.
Key Features
- High Pressure Output: 0 to 700 bar (0 to 10,000 psi).
- Two Media Versions: Available for mineral oil or distilled water applications.
- Fine Adjustment Control: 0.1 kPa fine adjustment screw for precise pressure setting.
- Quick Connect Ports: Secure and easy connection of devices under test.
- Reinforced Lever Mechanism: Efficient pressure build-up at high ranges.
- Portable Design: Suitable for workshop and on-site calibration work.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 214L |
| Pressure Range | 0 to 700 bar (0 to 10,000 psi) |
| Fine Adjustment | 0.1 kPa |
| Medium Options | Mineral Oil Version or Distilled Water Version (select when ordering) |
| Dimensions | 384 × 198 × 180 mm |
| Weight | 4.7 kg |
| Output Threads | M20 × 1.5, 1/4 NPT, 1/4 BSP, 1/2 NPT, 1/2 BSP Female (confirm thread type when ordering) |
| Accessories | Output O-rings and repair kits |
| Warranty | 1 Year |
Applications
- High Pressure Gauge Calibration – Workshop and laboratory verification.
- Pressure Transmitter Testing – Process and industrial instrumentation.
- Sensor & Switch Calibration – High-pressure validation work.
- Field Service & Maintenance – Portable hydraulic calibration support.
