Advanced Models for Shore A & D

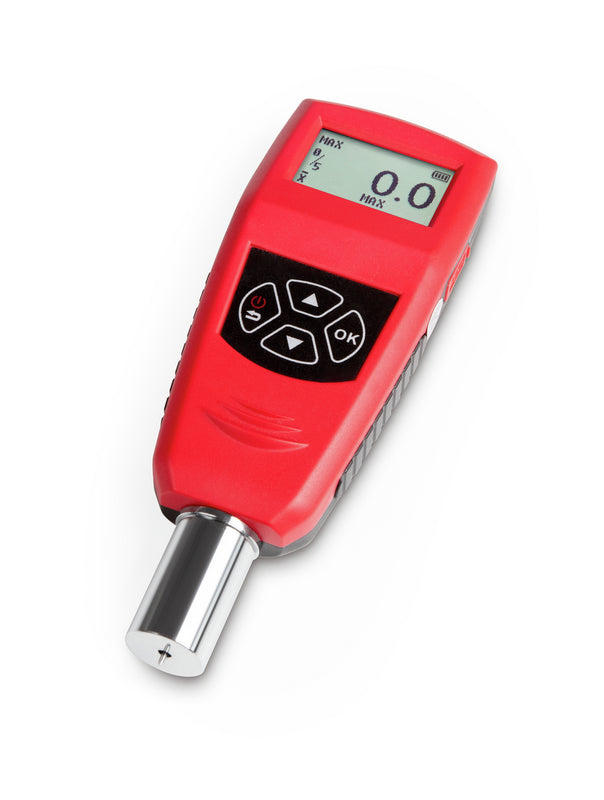

The Sauter HE is a versatile, digital Shore hardness tester designed for professional testing of plastics and elastomers. Available in two models (Shore A and Shore D), it offers multiple measurement modes, internal data storage, and USB connectivity for streamlined workflow in production, quality assurance, and research settings.

Compact, robust, and supplied in a hard case, the Sauter HE provides accurate and repeatable results with an intuitive interface and large backlit display. Recommended for internal comparison testing where traceability and control are key.

Key Features

• Two models available: HEA 100 (Shore A) and HED 100 (Shore D)
• Measurement modes: Max value, average, and chronological sequence
• Internal memory: Stores up to 500 readings
• Limit alarm function: Visual and audible alert when limits are exceeded

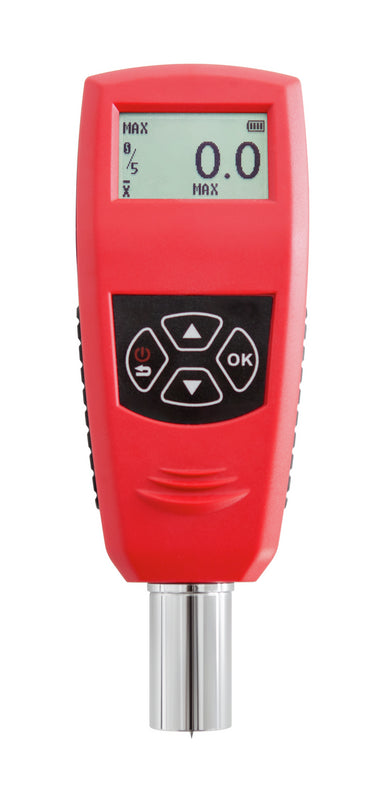

• Large backlit display with USB data output
• Rechargeable battery: Up to 20 hours of operation (3 h charging time)

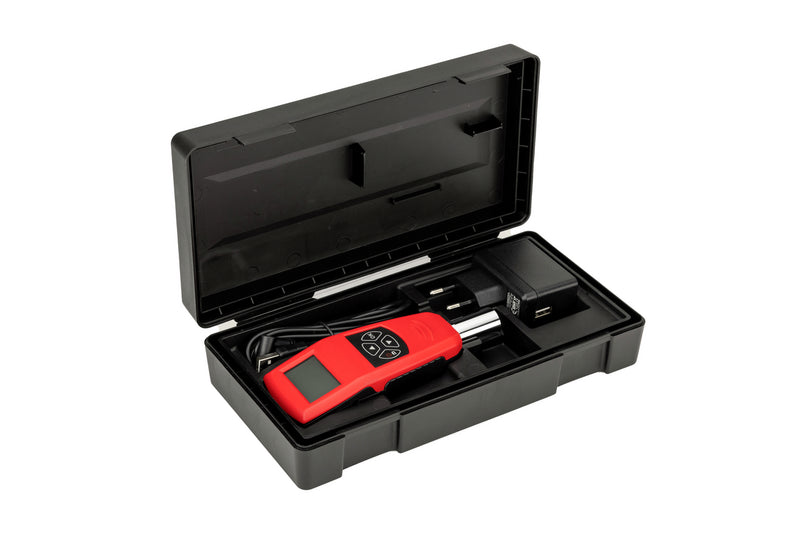

• Robust construction: Supplied in durable protective case
• Min. sample thickness: 6 mm
• Measurement force: 10 N (HEA), 50 N (HED)

Applications by Shore Scale

• Shore A: Rubber, elastomers, neoprene, silicone, vinyl, soft plastics, leather, felt
• Shore D: Hard plastics, Formica, epoxides, plexiglass

Model Specifications

Accessories (Optional)

• Shore A Comparison Plates: Sauter AHBA-01 (±2 HA)
• Shore D Comparison Plates: Sauter AHBD-01 (±2 HD)
• Test Stand for Shore A: Sauter TI-HEA
• Test Stand for Shore D: Sauter TI-HED

Downloads & Resources
