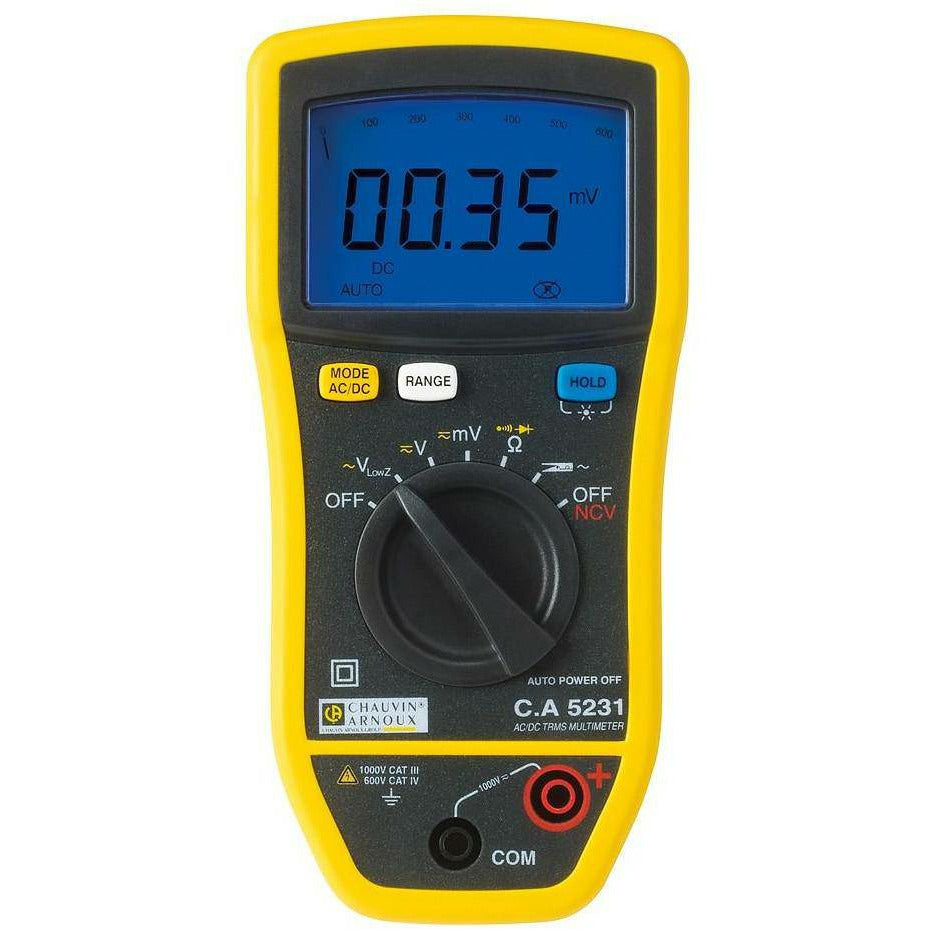

The CA 5231 Digital Multimeter is simple to use and exceptionally easy to read thanks to its 6,000-count backlit display with bargraph.

There are two "Off" positions for greater effectiveness, including one which allows no-contact voltage detection. The screen lights up when near to a live cable.

If it is hooked up to a current clamp, it can measure currents up to 600 A in total safety.

 Functions

• CAT IV 600V / CAT III 1,000V
• TRMS measurements
• Large 6,000-count backlit display (digit height: 8 mm)
• 61-segment bargraph
• Compact casing with built-in shockproof protection
• Double OFF position
• NCV (no-contact voltage detection)
• V_Low low-impedance voltage measurement to avoid stray voltages.
• Measurement up to 1,000 V
• 60mV range
• AC or DC current measurement up to 600 A with current clamp (1mv/A AC or DC) with direct reading of the measurement in Amperes
• IP54
• Compatible with the multi-function mounting accessory
