This item is currently on backorder but you can still purchase it now and we'll ship as soon as more become available.

Including a free test certificate

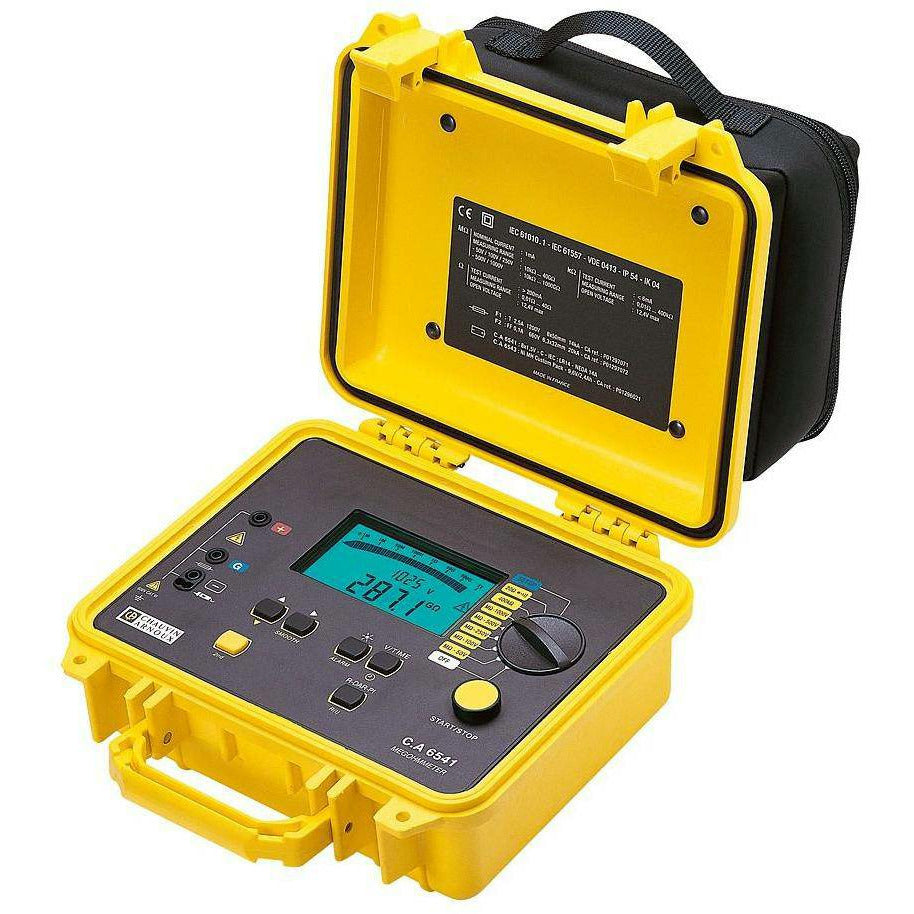

The CA6541 4 TOhm Insulation Tester is a high-performance 50V to 1kV insulation tester; it supports the most demanding site conditions and is ideal for qualitative insulation analysis.

  • insulation: up to 4 TOhm (5 cal.) at 50/100/250/500 and 1,000 V DC
  • automatic calculation of insulation quality ratios: DAR and PI
  • programmable test duration and plotting of the R(t) curve (automatic storage of 20 samples)
  • automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC
  • resistance: 0.01 Ohm to 400 kOhm
  • continuity: 0.01Ohm to +40 Ohm (audible beep and lead compensation)
  • automatic measurement capacity after each insulation measurement: 0.005 to 4.999 µF
  • microprocessor-controlled
  • large LCD screen with digital display + bargraph
  • backlighting
  • SMOOTH function
  • insulation test voltages can be locked
  • programmable alarms
  • long battery life: 8 x LR14 batteries (21,000 insulation tests of 5s each)
  • remote control probe available as an option
  • electrical safety: IEC 61010 600V CAT III and IEC 61557
  • dimensions: 240 x 185 x 110mm; weight: 3.4 kg

  • 600vcat3



      CA6541 4 TOhm Insulation Tester
