Including a free test certificate

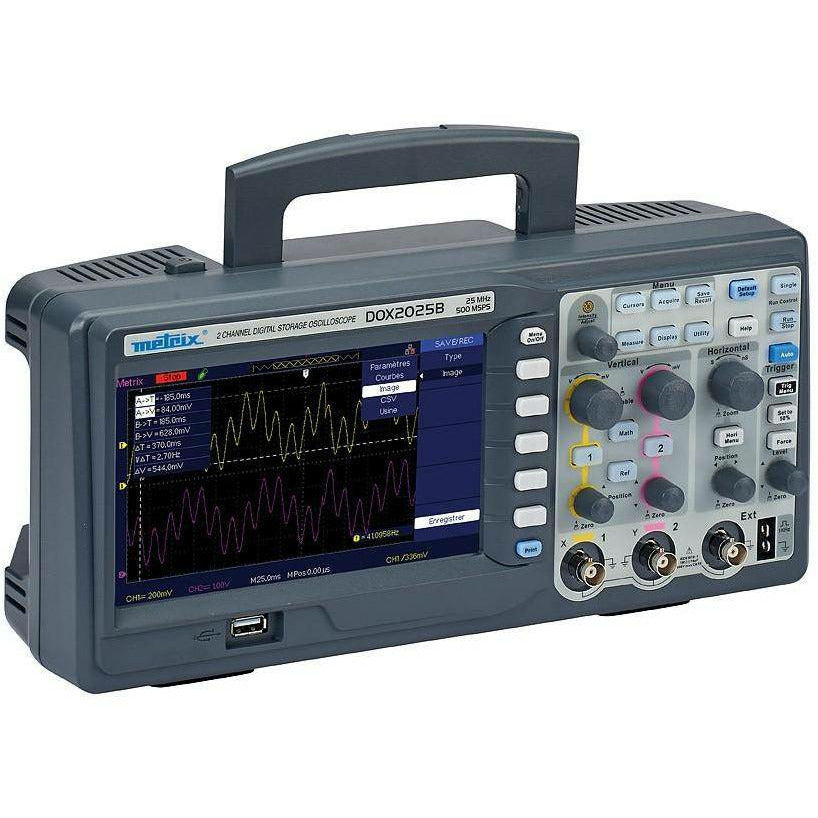

The DOX2025B 2 Channel 25Mhz Digital Oscilloscope is particularly compact and simple to use, with a casing specially designed for laboratory use.

They are equipped with a wide display offering 16 div. in full-screen mode. This allows customization of the display: choice between normal or persistent display, YT or XY format, adjustment of the colours, graticule, brightness, contrast, etc. Rotary buttons and back-lit keys give access to the commands on the front panel.

With its handle, the DOX2025B 2 Channel 25Mhz Digital Oscilloscope is easy to transport and its non-slip feet make it particularly stable.

High performanceand multiple functions for acquisition and analysis

There are 3 acquisition levels for acquisition and analysis, in real time or equivalent time. The memory depth for acquisition is 32k points, withunlimited storage on USB key to optimize your analyses.The vertical sensitivity is from 2 mV/div. to 10 V/div. with 12 ranges and the horizontal sensitivity is from 5 ns to 50s/div.Advanced functions are also available: simple MATH functions (+/-/x/div) and "real-time" FFT with simultaneous display of the traces.
Practical: the Pass/Fail test using a limit envelope.

The EASYSCOPE software delivered with the product can be used to control and test the oscilloscope and to recover the trace and screenshot files.

DOX2025B 2 Channel 25Mhz Digital Oscilloscope Technical Specifications:

  • 7-inch WGA colour display, resolution 800 X 480
  • Full menus in 5 languages + on-screen contextual help in French/English
  • 2-channel measurement capture + Ext Trig and complex triggers
  • Vertical resolution: 8 bits
  • 32 automatic measurements
  • Cursors : Manual, tracking and automatic modes
  • USB host and device communication
  • IEC 61010-1 / 300 V CAT II

2 x25 MHz channels -Sweep speed from 25 ns/div. to 50 s/div.
Sampling rate: one-shot= 250 MS/s (2 channels), 500 MS/s (one channel) / Repetitive = 10 GS/s
Max. memory depth: 32 kpoints + USB Key

USB


    Chauvin Arnoux DOX2025B 2 Channel 25Mhz Digital Oscilloscope
