Kaiweets HT118A Digital AC/DC Multimeter - TRMS 6000 Counts
3800
Kaiweets HT118A Digital AC/DC Multimeter - TRMS 6000 Counts
3800
FREE SHIPPING ON ALL KAIWEETS PRODUCTS
WIDE APPLICATIONS
The Kaiweets HT118A digital multi meter features 6000 count TRMS auto-ranging for accurate measurement of AC/DC voltage, AC/DC current, resistance, continuity, frequency, capacitance and diode, liquid temperature, wire on-off and battery checking. This advanced tester can diagnose automotive, industrial and household electrical issues.

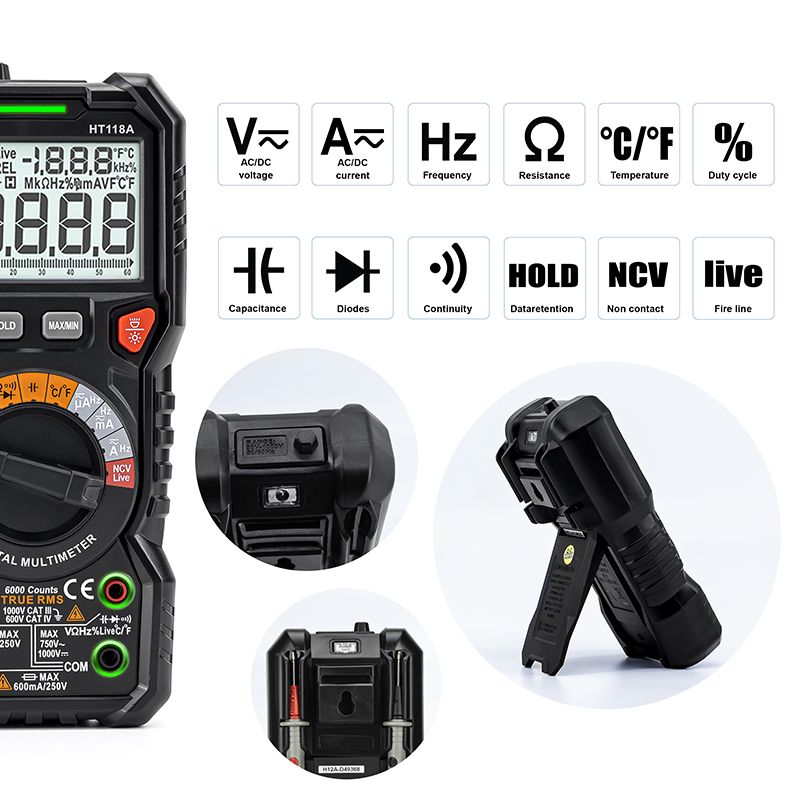

MULTI-FUNCTION
Non-contact voltage testing and live wire functions both use sound (audible) and light (visual) alarms. The screen changes to red when detecting a live wire. The meter also has a low battery prompt, data retention function, max / min data hold, auto power-off and auto-ranging.
SAFETY FIRST
IEC Rated CAT III 1000V, CAT IV 600V, CE, RoHS certified. Anti-Burn with double ceramic fuse and thermistor protection circuit. High Voltage Protection is active on all ranges. Double insulated unit. Silicone protective case prevents it from falling damage.

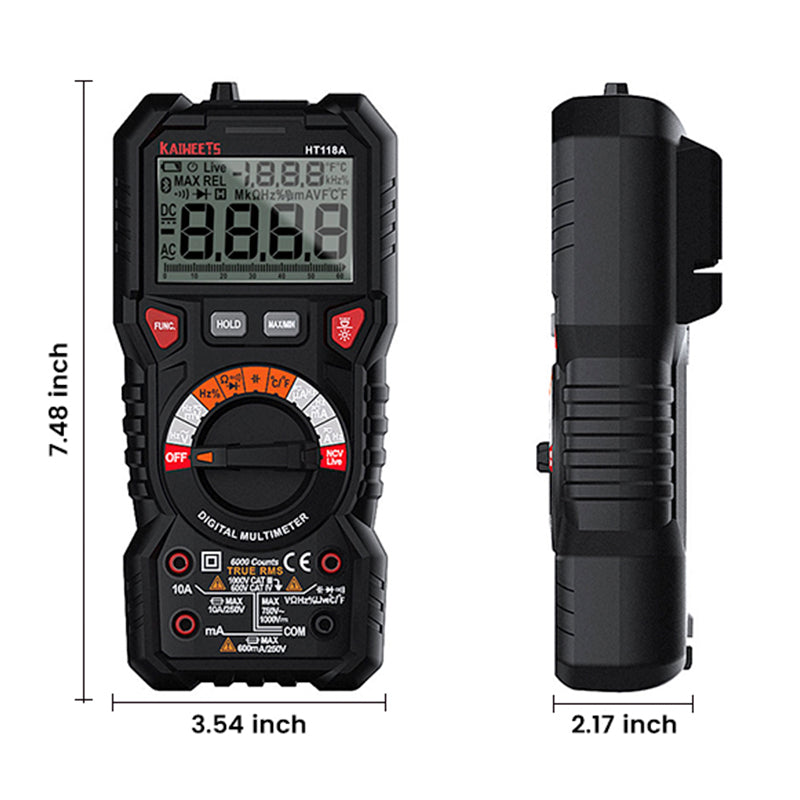

| Weight | Dimensions |
| 620g | 7.48 x 3.54 x 2.17 inches |
| Batteries | Material |
| 2 x AA included | ABS |
| Features | Safety Level |
| LCD display, True RMS |
IEC-61010-1 CAT III, CAT IV 600V double insulation |

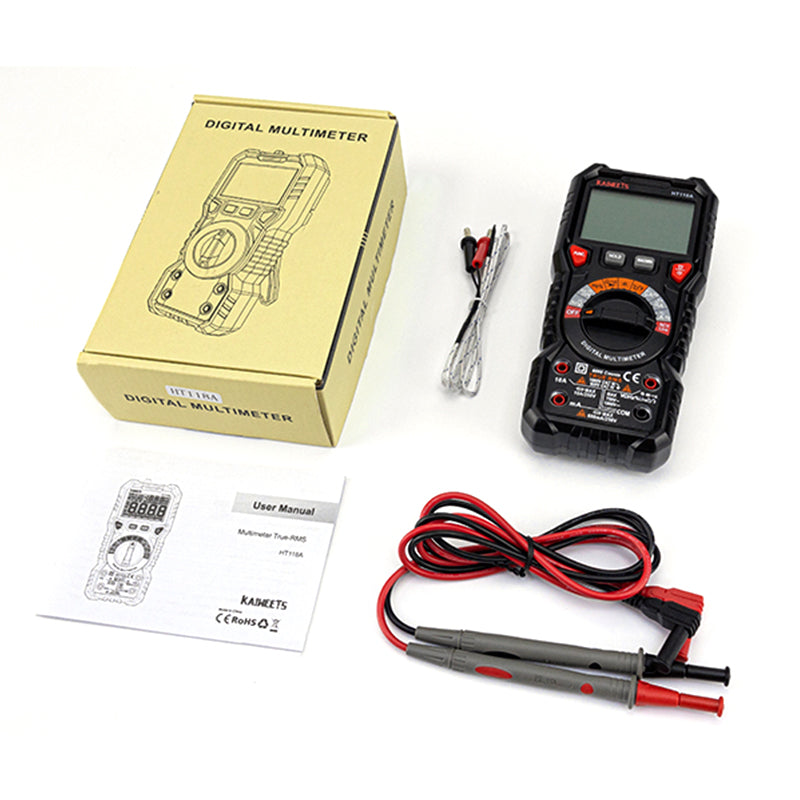

| Usage | Included |
|
Voltage |
Test Leads Temperature Probe User Manual Batteries |
| Technical Specification |
| DC Voltage: 600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3) AC Voltage: 600mV/6V/60V/600V/750V±(0.8%+5) DC Current: 600μA/6000μA/60mA/600mA/10A ±(1.2%+3) AC Current: 600μA/6000μA/60mA/600mA/10A ±(1.5%+3) Resistance: 600Ω/6KΩ/60KΩ/600KΩ/±(1.0%+3),6MΩ/60MΩ ±(1.5%+3) Capacitance: 10nf/100nf/1000nf/10uf/100uf/1000uf ±(4.0%+5), 10MF/100MF±(5.0%+5) Frequency/Duty:10Hz/100Hz/1000Hz/ 10kHz/100kHz/1000kHz ±(1.0%+3),10MHz/±(3.0%+3) |
