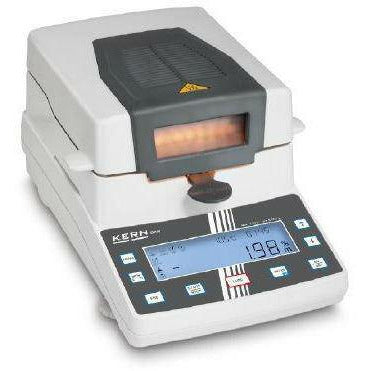

Kern DAB moisture analyser with capacities from 110 g to 200 g. The Kern DAB moisture analyser is very user friendly and is now available with a 10 mg division. It is available with an optional calibration certificate and other accessories such as printers, software and communications.

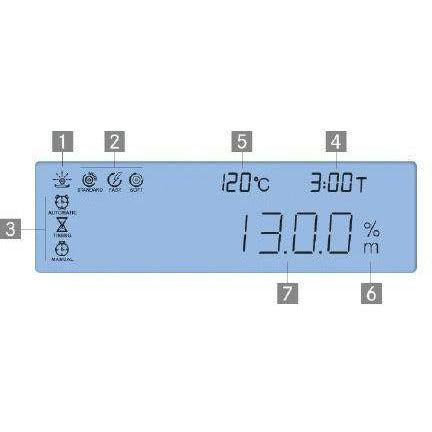

  • Backlit LCD display, digit height 14 mm
    Active heating profile
    Active switch-off criteria
    Previous drying time
    Current temperature
  • Current moisture content in %
  • Halogen quartz glass heater 400 W

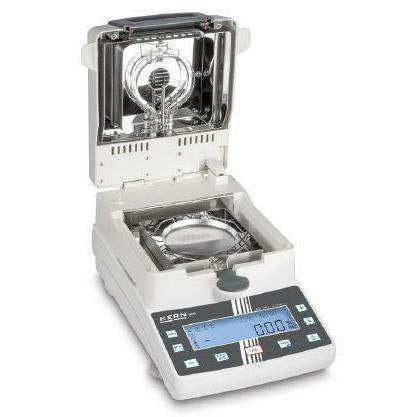

  • Observation window above the sample, useful during initial setting
  • Internal memory for automatic sequence of 15 complete drying processes and 5 drying processes carried out
  • The last value measured remains on the display until it is replaced by a new measurement
  • 50 sample plates included
  • Application handbook: On the internet, you will find a practical application handbook containing many examples, field reports, settings and tips for each KERN moisture analyser

Click here for accessories

Model Weighing capacity [Max] Readability [d] Weighing plate mm (WxD | Dia)
DAB 100-3 110 g 1 mg 92
DAB 200-2 200 g 10 mg 92


Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Memory: Balance contains memories, e.g. for  tare weights, weighing data, item data,  PLU etc.Data interface RS-232: To connect the balance to a printer, PC or networkGLP/ISO log: with weight, date and time. Only with KERN printers, see AccessoriesWeighing units: Can be switched to e.g. nonmetric units at the touch of a key. See balance model.Mains part: mains part integrated in the balance. 230V/50Hz Standard type D, if requested also available in standard GB, AUS or USA.Strain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowing
