Kern DS Platform Scales
91200
Ultra-High Resolution for Industrial Applications
The Kern DS series delivers laboratory-grade precision in a rugged industrial format, ideal for applications requiring the highest accuracy. With resolutions up to 300,000 points and an IoT-ready design, these scales offer real-time data integration for Industry 4.0 environments. Compact and high-capacity models are available with weighing plates ranging from 230 × 230 mm to 500 × 400 mm.
All models feature large backlit LCD displays, RS-232 or optional wireless interfaces, and programmable units for custom applications. A protective working cover is included as standard, with traceable calibration available.
Key Features
- Extreme Precision: Readabilities as fine as 0.01 g with up to 300,000 resolution points
- IoT-Ready: Supports RS-232, USB, Ethernet, WiFi, Bluetooth (via KUP adapters)
- High-Capacity Design: Weigh up to 150 kg with consistent accuracy
- Programmable Units: Display units like g/m, g/m², piece counting and more
- Display & Housing: Backlit LCD with 21 mm digit height and optional column mount
- Traceable Calibration: Optional certificate for regulated environments
Model Comparison
| Model | Capacity (kg) | Readability (g) | Resolution | Weighing Plate (mm) |
|---|---|---|---|---|
| DS 3K0.01S | 3 | 0.01 | 300,000 | 230 × 230 |
| DS 5K0.05S | 5 | 0.05 | 100,000 | 230 × 230 |

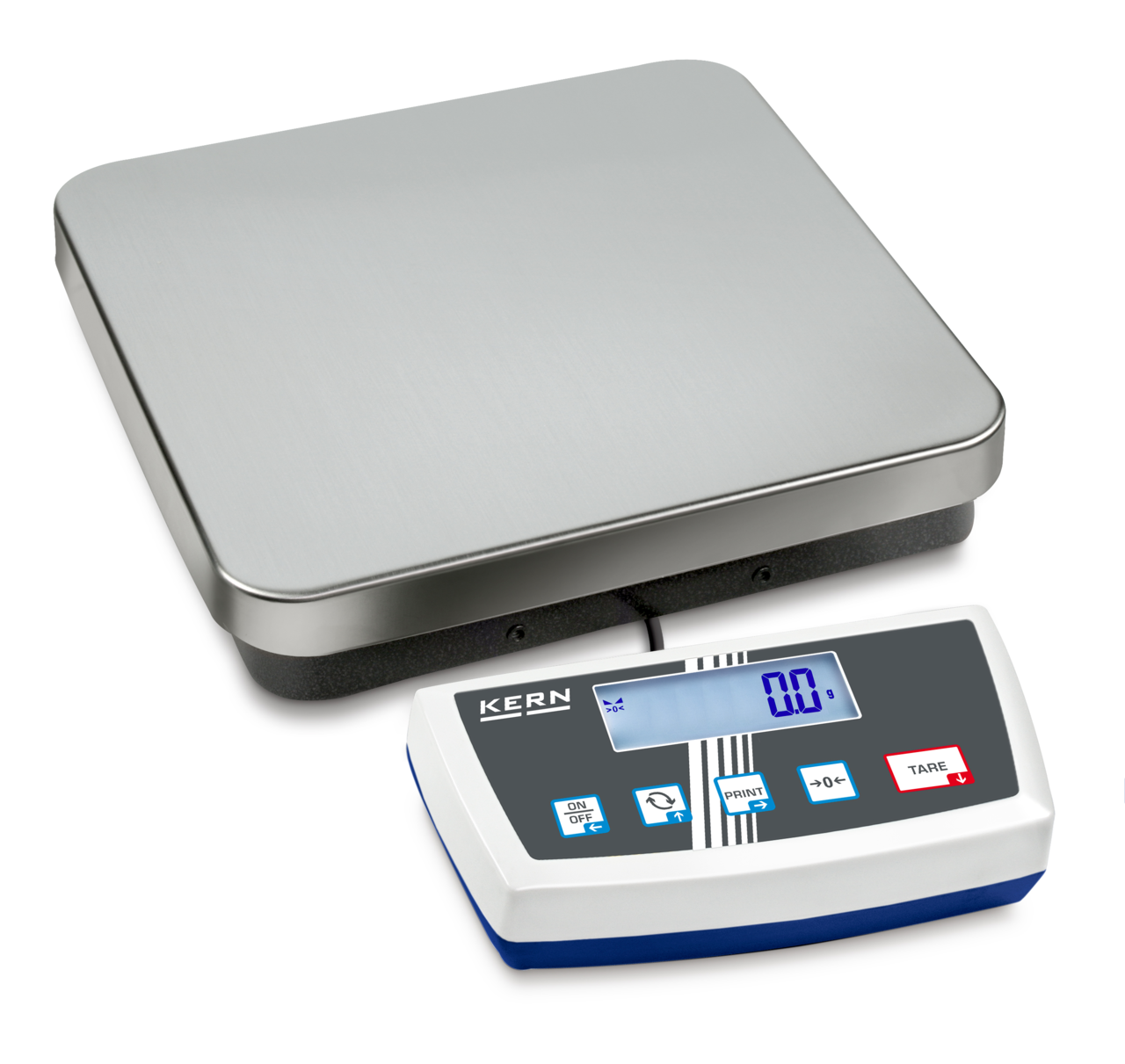

| DS 8K0.05 | 8 | 0.05 | 160,000 | 308 × 318 |
| DS 10K0.1S | 10 | 0.1 | 100,000 | 230 × 230 |
| DS 16K0.1 | 16 | 0.1 | 160,000 | 308 × 318 |
| DS 20K0.1 | 20 | 0.1 | 200,000 | 308 × 318 |
| DS 30K0.1 | 30 | 0.1 | 300,000 | 308 × 318 |
| DS 30K0.1L | 30 | 0.1 | 300,000 | 500 × 400 |
| DS 36K0.2 | 36 | 0.2 | 180,000 | 308 × 318 |
| DS 36K0.2L | 36 | 0.2 | 180,000 | 500 × 400 |
| DS 60K0.2 | 60 | 0.2 | 300,000 | 500 × 400 |
| DS 65K0.5 | 65 | 0.5 | 130,000 | 500 × 400 |
| DS 100K0.5 | 100 | 0.5 | 200,000 | 500 × 400 |
| DS 150K1 | 150 | 1 | 150,000 | 500 × 400 |
Additional Information
- Interfaces: RS-232 standard; USB, WiFi, Bluetooth, and Ethernet via KUP module
- Display: Separate unit with 21 mm backlit digits (225 × 115 × 60 mm)
- Power: Mains and optional rechargeable battery (up to 24 hours use)
- Temperature Range: -10°C to +40°C
- Included: Protective display cover and optional mounting accessories
