146850

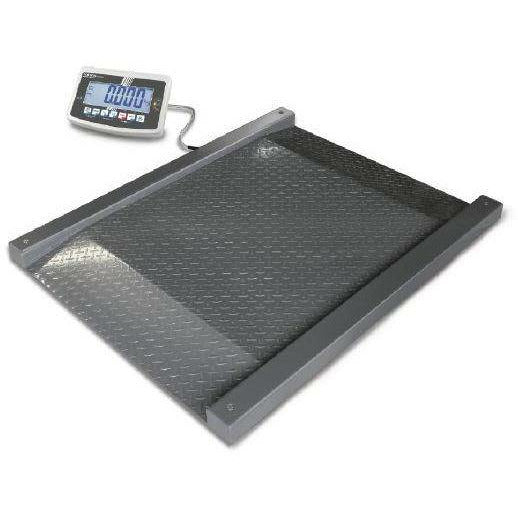

Kern NFB floor scales with capacities from 600 kg to 1500 kg. Kern NFB floor scales are a drive-through type with an IP67 rating. The display has a large, easy to read screen and is M Class approved for trade use. They are available with an optional calibration certificate and a range of accessories

  • Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, pallets, mobile containers, containers refuse etc.
  • Low platform height and integrated access ramps on both sides facilitate access.
  • Weighing bridge: anti-slip corrugated steel plate, lacquered, protection against dust and water splashes IP67, 4 silicone-coated steel load cells.
  • Protective working cover included with delivery
  • Note: For verified scales the weighing bridge must be fixed to the floor. Optionally, with an access ramp, a footplate pair or a pit frame
  • Limited tare range with verifiable models (1/6 from [Max])
  • Shipment via freight forwarder. Please ask for dimensions, gross weight, shipping costs
  • Our large, heavy KERN floor scales are sent in a sturdy wooden crate, to ensure safe transportation and protection of the measuring equipment
Model Weighing capacity Readability Weighing plate
[Max] [d] mm
(WxD | Dia)
NFB 1.5T0.5LM 1500 kg 500 g 1200  mm x 1200  mm
NFB 1.5T0.5M 1500 kg 500 g 1000  mm x 1000  mm
NFB 600K200LM 600 kg 200 g 1200  mm x 1200  mm
NFB 600K200M 600 kg 200 g 1000  mm x 1000  mm



Standard

Adjusting program (CAL): For quick setting of the balance's accuracy. External adjusting weight required.Data interface RS-232: To connect the balance to a printer, PC or networkPiece counting: Reference quantities selectable. Display can be switched from piece to weight.Totalising level A: The weights of similar items can be added together and the total can be printed out.Weighing with tolerance range: Upper and lower limiting can be programmed individually, e. g. sorting and portioning.Vibration-free weighing: (Animal weighing program) Vibrations are filtered out so that a stable weight is obtained.IP 67 protection in accordance with DIN EN 60529:
Designed for temporary use in wet areas. Can be cleaned with water jet. Temporary submersion is possible. Dustproof.Universal mains adapter: with universal input and optional input socket adapters for EU, GBStrain gauge: An electrical resistor strip that is glued to an elastic deforming body made of aluminium. As the strain gauge is mechanically deformed its resistance value changes, allowingVerification possible. The time required for verification is specified in the pictogram.

Optional

Bluetooth data interface: To transfer data from the balance to a printer, PC or other peripherals.Rechargeable battery pack: rechargeable set

Kern NFB Floor Scales
146850
