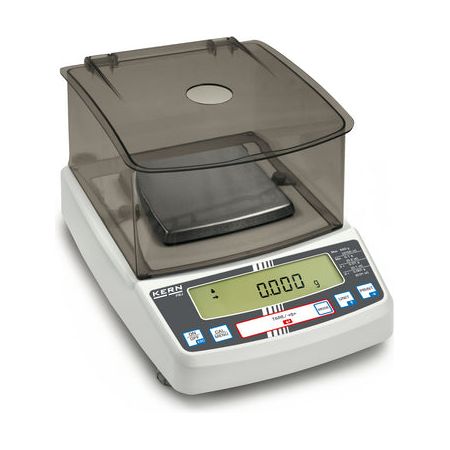

Kern PBS / PBJ Precision Scales
133665
Kern PBS / PBJ Precision Scales
133665
Multifunctional Precision Balances with Advanced Weighing Cell Technology
The KERN PBS and PBJ series are robust, high-precision laboratory balances designed for versatility, accuracy, and reliability. With advanced single-cell weighing technology and either internal (PBJ) or external (PBS) calibration, these balances are ideal for professional laboratory use, quality control, and process assurance applications.
The PBJ models include internal automatic adjustment triggered by time or temperature, while PBS models offer external calibration through the CAL program. All balances feature rugged metal housing, fast stabilization times (~3 seconds), high corner load performance, and optional verification and accessories.
Key Features
- Capacity Range: 620 g to 8200 g
- Readability: From 0.001 g to 0.1 g depending on model
- Display: Large backlit LCD, 14 mm digit height
- Construction: Robust metal housing, stainless steel weighing plate
- Draught Shield: Included for models with small plates (112×112 mm)
- Functionality: Includes tolerance checks, summation, automatic data output, and more
Model Comparison
| Model | Capacity (g) | Readability (g) | Verification Value (g) | Linearity (g) | Pan Size (mm) | Calibration | Verification Capable |
|---|---|---|---|---|---|---|---|
| PBS 620-3M | 620 | 0.001 | – | ±0.002 | Ø 112 (A) | External | No |
| PBS 4200-2M | 4200 | 0.01 | – | ±0.02 | 180×190 (B) | External | No |
| PBS 6200-2M | 6200 | 0.01 | – | ±0.02 | 180×190 (B) | External | No |
| PBJ 620-3M | 620 | 0.001 | 0.01 | ±0.002 | Ø 112 (A) | Internal | Yes |
| PBJ 4200-2M | 4200 | 0.01 | 0.1 | ±0.02 | 180×190 (B) | Internal | Yes |
| PBJ 6200-2M | 6200 | 0.01 | 0.1 | ±0.02 | 180×190 (B) | Internal | Yes |
| PBJ 8200-1M | 8200 | 0.1 | 1 | ±0.2 | 180×190 (B) | Internal | Yes |
Key Notes
-
Calibration:
- PBS models: Require manual external calibration using test weights
- PBJ models: Feature automatic internal adjustment based on time or temperature
- Verification: "M" models are ready for legal-for-trade verification under NAWI 2014/31/EU (PBJ only)
- Plate Sizes: A = Ø 112 mm, B = 180×190 mm
- Draught Shield: Supplied for plate A models
- Stabilization Time: ~3 seconds under lab conditions
