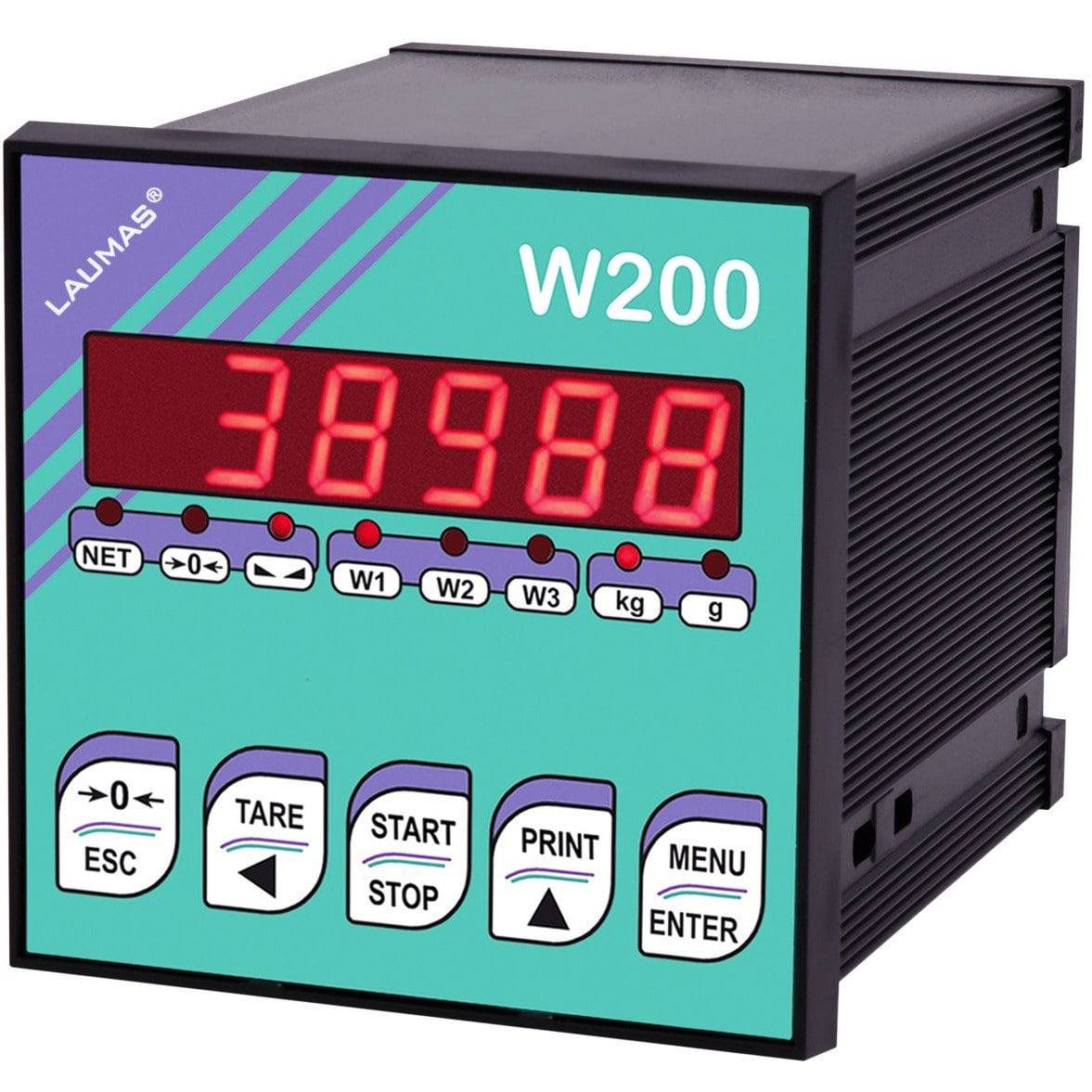

Laumas W200 Weight Indicator
Alternative view of the Laumas W200 Weight Indicator

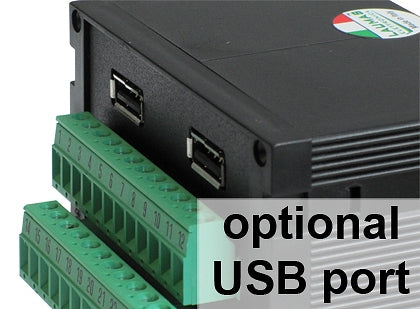

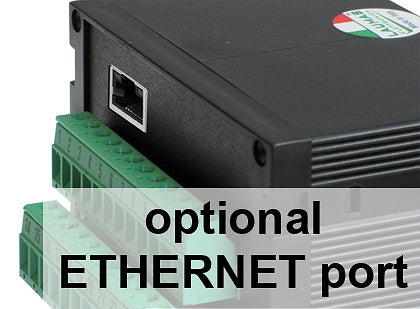

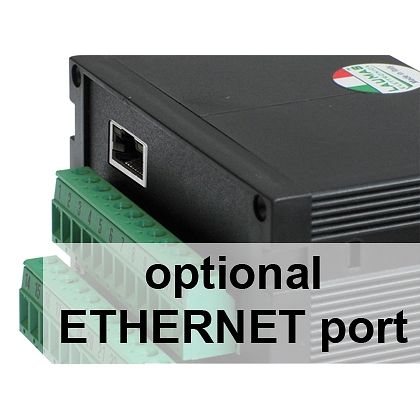

Laumas W200 Weight Indicator enclosure and connection detail
Laumas

Laumas W200 Weight Indicator

Laumas W200 Weight Indicator Overview

The Laumas W200 is an industrial batching weight indicator designed for single loading, unloading and multi-product batching applications. It supports up to 99 formulas and provides reliable control for production weighing processes.

With RS232 and RS485 communications, relay outputs, setpoint control and optional industrial protocols, the W200 is suitable for batching systems, process weighing, ingredient control and industrial automation.

Model: W200

Model
Sale price£286.00
View Technical Data Sheet (PDF)

Learn more

Product specification

Compare model specifications.

Power Supply 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W 12 - 24 VDC ±10%; 5 W
No. Load Cells Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires Up to 8 (350 R) - 4/6 wires
A/D Converter 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz 24 bit (16000000 points) - 4.8 kHz
Measurement Range ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV ±39 mV
Load Cell Sensitivity ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV ±7 mV
Serial Coms RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485 RS232, RS485
Relay Outputs 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA 5/4 - max 115 VAC/150 mA
Digital Inputs 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP 3/2 - 5÷24 VDC PNP
Program Base Load Unload 3 Products 6 Products 14 Products Multiprogram

Learn more

Applications

Industrial Batching Control

Supports industrial batching operations requiring repeatable process control.

Ingredient Dosing Systems

Supports ingredient dosing systems requiring repeatable and controlled operation.

Automated Production

Used in automated production environments requiring batching and process control.

Automated Ingredient Control

Supports automated ingredient control processes requiring repeatable operation.

Features

Industrial Batching Control

Supports industrial batching operations requiring formula management and process control.

Production Automation

Supports automated production processes through setpoint and batching functions.

Setpoint Configuration

Allows operators to configure and manage process setpoints efficiently.

Formula Driven Production

Supports repeatable production processes through stored formula management.
