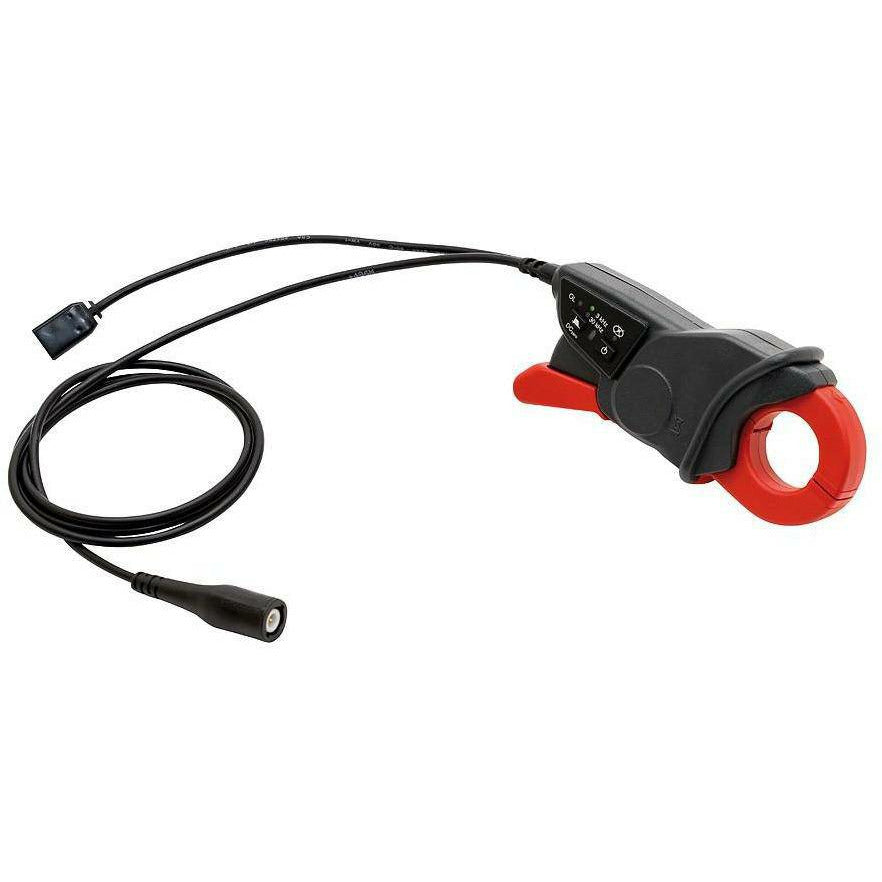

Chauvin Arnoux MH60 - Oscilloscope Clamp
Includes a free test certificate
The MH60 sensor is designed for use with an oscilloscope in total simplicity. Simply clamp the cable and measure. It can be used for wide-band current measurements up to 100 A.
The compact MH60 offers a clamping diameter of 26 mm and can be used in numerous sectors of activity: power electronics, automotive sector, electrical equipment manufacturers, etc.
The built-in cable with ‚µUSB connection technology means the MH60 can be self-powered directly from the oscilloscope or mains-powered via a mains adapter. It is also equipped with an internal NiMh rechargeable battery with a battery life of approximately 8 hours.
Main specifications:
¢‚¬¢‚ ‚ Current from 10 mA to 100 A AC+DC (140 Apeak)
¢‚¬¢‚ ‚ Output signal: 10 mV/A
¢‚¬¢‚ ‚ Bandwidth: 1 MHz
¢‚¬¢‚ ‚ Switchable filters: 30 kHz, 3 kHz
