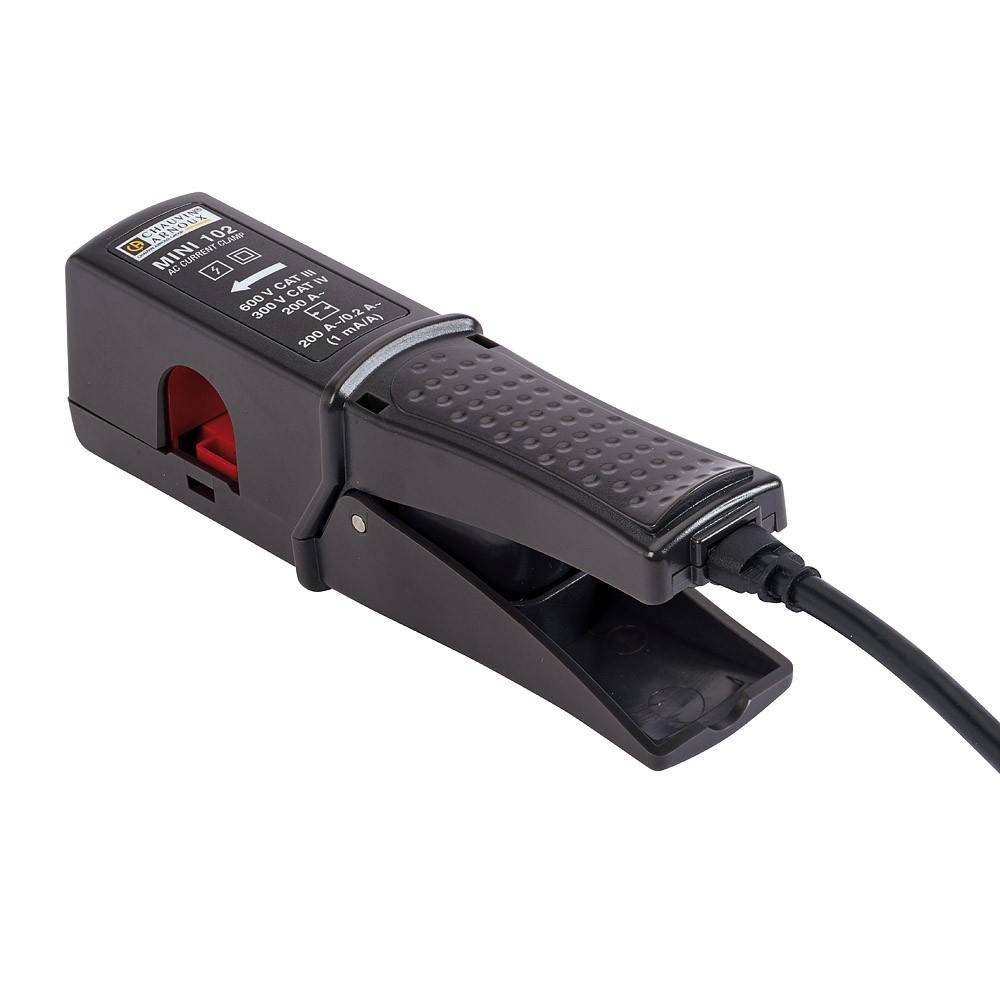

Small and compact, the MINI102 current clamp is an ideal complement for any multimeter to measure alternating currents in low-power tertiary or industrial applications.
If there is a current flowing in the conductor clamped, the MINI 102 clamp is protected against voltage when i is disconnected from the measuring instrument.
Main features of the MINI102 current clamp:
16 mm max.
Rated current: 200 A AC
Output signal: 1 mA AC / A AC (1000 / 1) - (200 mA for 200 A)
Transformation ratio: 1,000/1
Output via lead and isolated 4 mm male plugs
Output protected against voltage surges
