Including a free test certificate

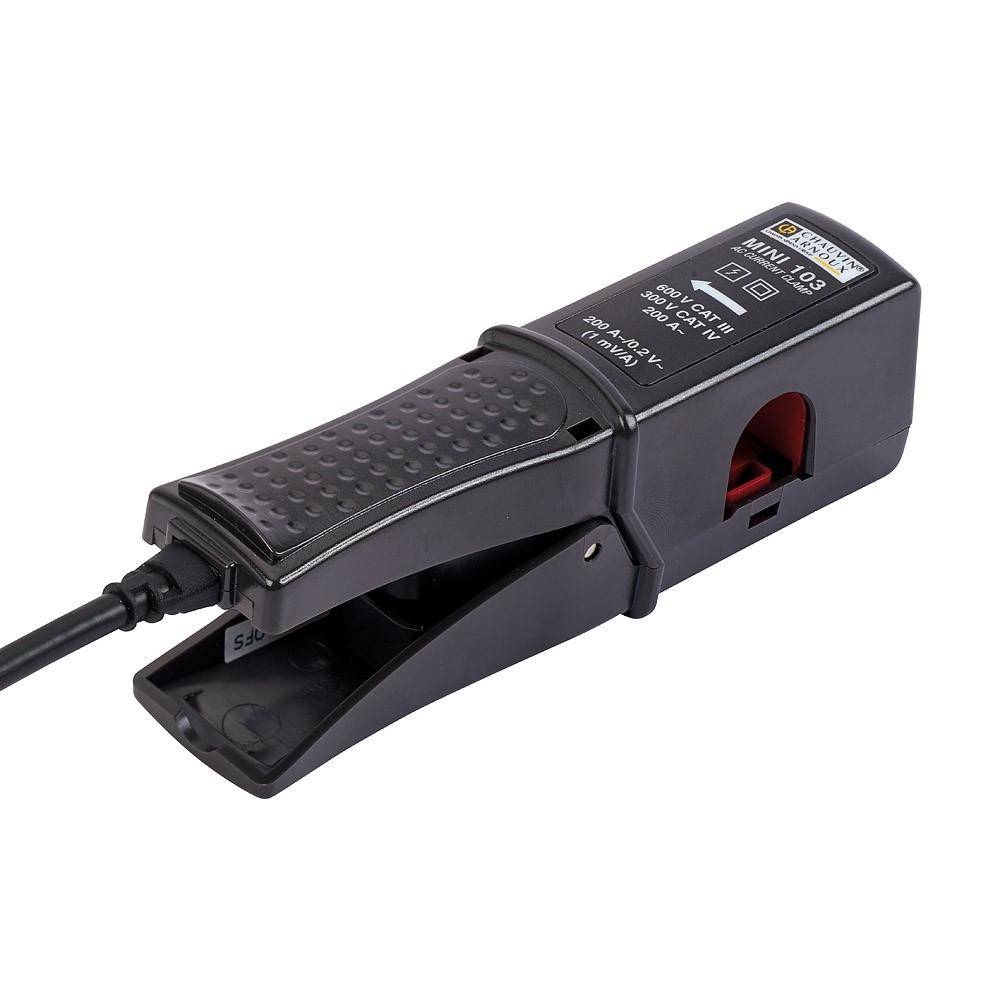

Small and compact, the MINI103 current clamp is an ideal complement for any multimeter to measure alternating currents in low-power tertiary or industrial applications.
If there is a current flowing in the conductor clamped, the MINI 103 clamp is protected against voltage when i is disconnected from the measuring instrument.
Main features of the MINI103 current clamp:
16 mm max.
Rated current: 0.1 to 200 A AC
Output signal: 1 mVAC / AAC (200 mV for 200 A)
Transformation ratio: 1,000/1
Output via lead and isolated 4 mm male plugs
Output protected against voltage surges
