MN38 Current Clamp

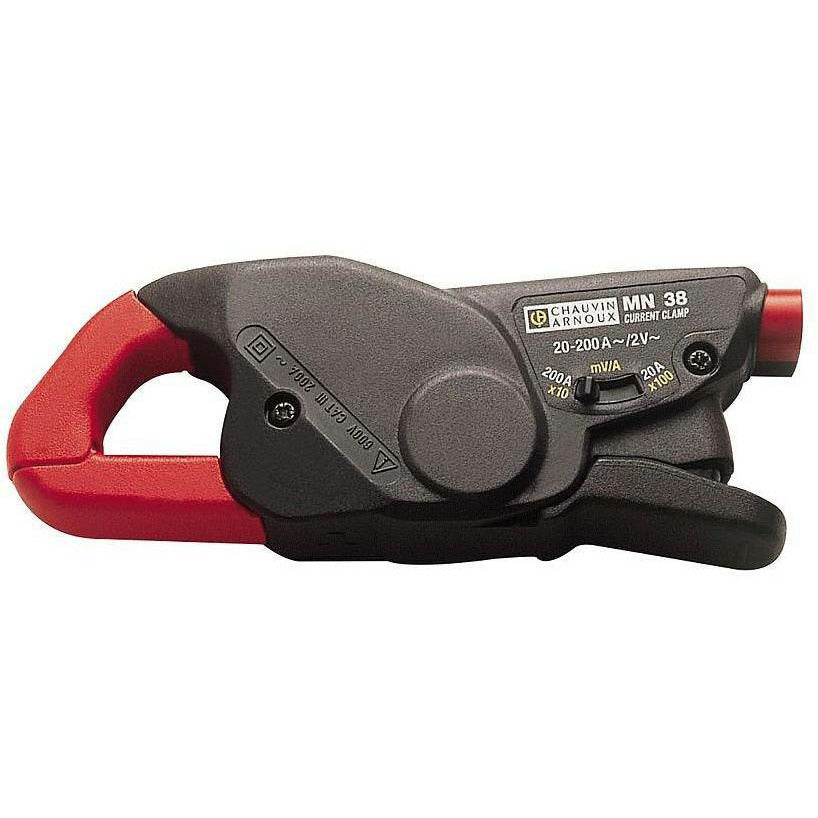

Chauvin Arnoux MN38 Current Clamp

Chauvin Arnoux
22900

Including a free test certificate

Description

TheMN38 current clamp is a versatile transformer clamp for measuring alternating currents up to 240 A with a multimeter or a power analyser.

Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter installations up to CAT III 600 V or CAT IV 300 V.
This clamp has 2 sensitivities for better measurement resolution and accuracy.

Main features of the MN38 current clamp:

  • Rated current: 200 A AC
  • Output signal: AC voltage
  • Output / input ratio: 100 mV / A AC, 10 mV /A AC
  • Output via isolated 4 mm female sockets
    Chauvin Arnoux MN38 Current Clamp
    22900
