Including a free test certificate
Compact and ergonomic, the jaw is suitable for measurements in places where access is difficult and can also be used to clamp any cable up to 20 mm in diameter installations up to CAT III 600 V or CAT IV 300 V.
When used with a multimeter equipped with an mV AC range and good measurement resolution, this 2-calibre clamp allows measurement of leakage or differential currents from 10 mA.

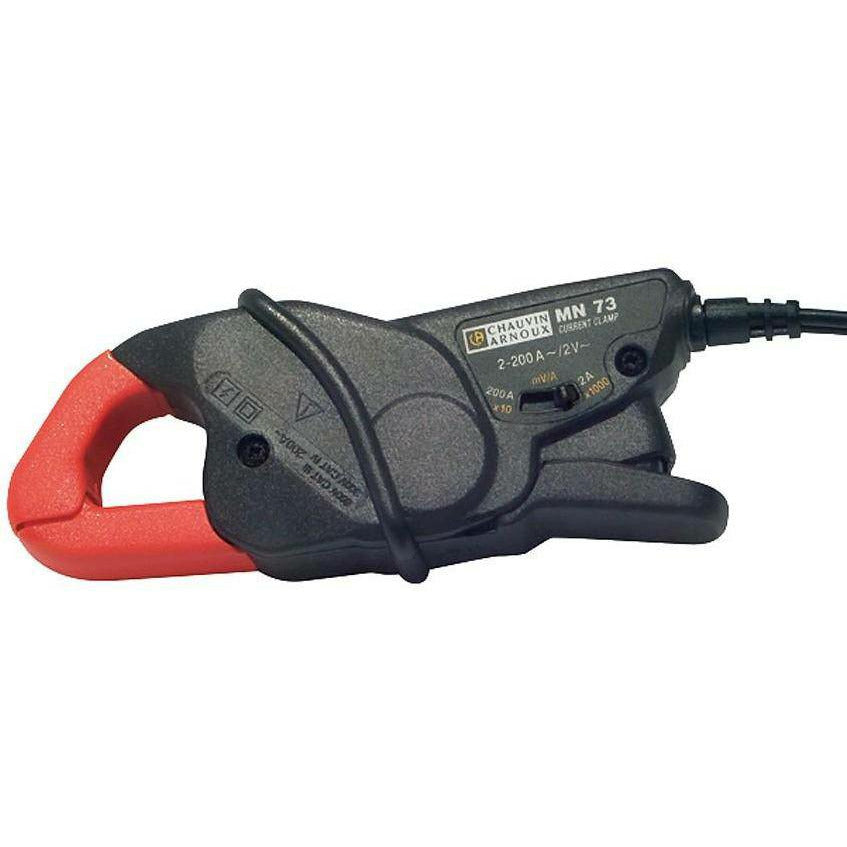

Main features of the MN73 current clamp::
- Output signal: AC voltage
- Output / input ratio: 1,000 mV/ A AC, 10 mV / A AC
- Output via lead and isolated 4 mm male plugs
