Ohaus Defender 6000 Washdown - i-D61XW Platform Scale
193600
Ohaus Defender 6000 Washdown - i-D61XW Platform Scale
193600
Advanced Connectivity Washdown Scales – Multi-Interface Industrial Weighing Solutions
The OHAUS Defender 6000 i-D61XWE Series represents the pinnacle of industrial weighing technology, combining extreme washdown protection with advanced connectivity options for modern manufacturing environments. These NSF-certified bench scales feature 316 stainless steel construction, IP68/IP69K protection, and comprehensive communication interfaces including RS232, USB, Wi-Fi, Bluetooth, and Ethernet connectivity for seamless integration into automated systems.
Engineered for food processing, pharmaceutical manufacturing, and chemical production facilities, these advanced weighing systems offer touchless operation, multiple weighing modes, and Industry 4.0 connectivity. Perfect for automated filling systems, checkweighing operations, and high-throughput production environments requiring real-time data integration.
Advanced Features & Connectivity
- Multi-Interface Connectivity: Built-in RS232, USB Host, optional Wi-Fi/Bluetooth, Ethernet, and Discrete I/O with relay outputs

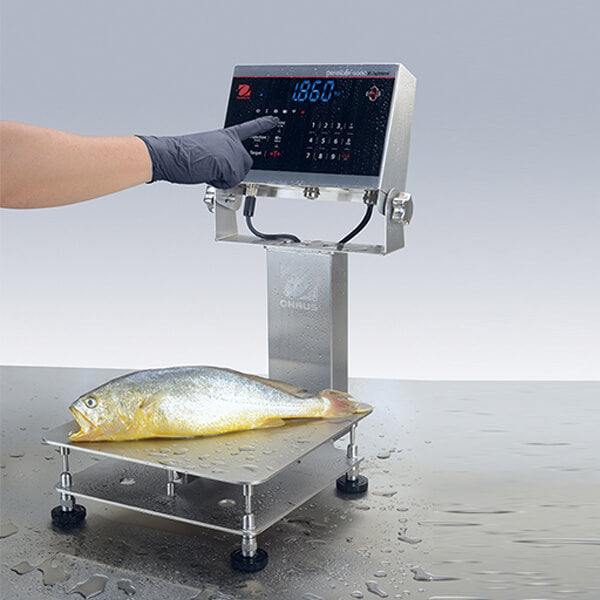

- Touchless Operation: Hands-free sensor technology reduces contamination risk in sterile environments

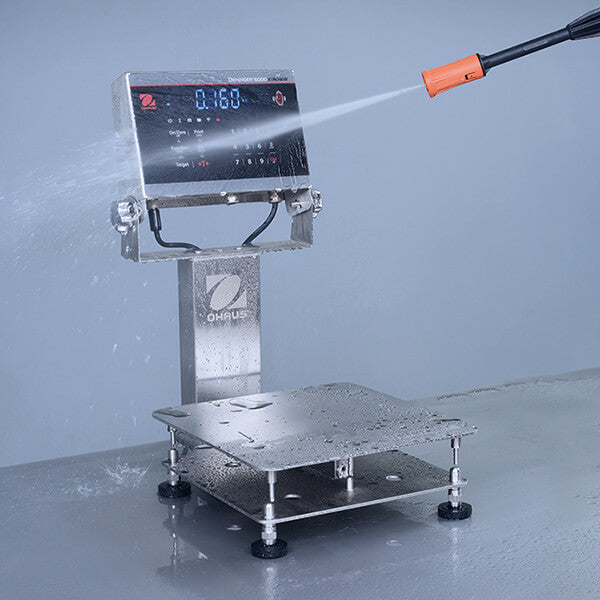

- Extreme Washdown Protection: IP68 immersion and IP69K high-pressure washdown ratings with hermetically sealed load cell
- 316 Stainless Steel Construction: Corrosion-resistant platform, frame, and column withstand aggressive cleaning chemicals
- NSF Food Safety Certified: Meets NSF/ANSI 169 standards and supports HACCP compliance for food processing facilities
- Advanced Filling Mode: Target-weight filling with 3-color bar matrix display for automated systems integration
- Library Management: Store up to 300 library items and 100 user IDs for comprehensive traceability and access control
- Rapid Stabilization: Sub-1-second results maximize productivity in high-volume operations
Complete Model Range & Specifications
| Model Number | Maximum Capacity | Readability | Certified Model | Certified Readability | Platform Size (mm) | Resolution |
|---|---|---|---|---|---|---|
| i-D61XWE3K1S6 | 3 kg | 0.2 g | i-D61XWE3K1S6-M | 1 g | 250 × 250 | 2 × 15,000 |
| i-D61XWE3K1S6-GB | 3 kg | 0.2 g | i-D61XWE3K1S6-M | 1 g | 250 × 250 | 2 × 15,000 |
| i-D61XWE6K1S6 | 6 kg | 0.5 g | i-D61XWE6K1S6-M | 2 g | 250 × 250 | 2 × 15,000 |
| i-D61XWE6K1S6-EU | 6 kg | 0.5 g | i-D61XWE6K1S6-M | 2 g | 250 × 250 | 2 × 15,000 |
| i-D61XWE6K1S6-GB | 6 kg | 0.5 g | i-D61XWE6K1S6-M | 2 g | 250 × 250 | 2 × 15,000 |
| i-D61XWE15K1R6 | 15 kg | 1 g | i-D61XWE15K1R6-M | 5 g | 300 × 300 | 2 × 15,000 |
| i-D61XWE15K1R6-EU | 15 kg | 1 g | i-D61XWE15K1R6-M | 5 g | 300 × 300 | 2 × 15,000 |
| i-D61XWE15K1R6-GB | 15 kg | 1 g | i-D61XWE15K1R6-M | 5 g | 300 × 300 | 2 × 15,000 |
| i-D61XWE30K1R6 | 30 kg | 2 g | i-D61XWE30K1R6-M | 10 g | 500 × 400 | 2 × 15,000 |
| i-D61XWE30K1R6-EU | 30 kg | 2 g | i-D61XWE30K1R6-M | 10 g | 500 × 400 | 2 × 15,000 |
| i-D61XWE30K1R6-GB | 30 kg | 2 g | i-D61XWE30K1R6-M | 10 g | 500 × 400 | 2 × 15,000 |
| i-D61XWE60K1L7 | 60 kg | 5 g | i-D61XWE60K1L7-M | 20 g | 500 × 400 | 1 × 15,000 |
| i-D61XWE60K1L7-EU | 60 kg | 5 g | i-D61XWE60K1L7-M | 20 g | 500 × 400 | 1 × 15,000 |
| i-D61XWE60K1L7-GB | 60 kg | 5 g | i-D61XWE60K1L7-M | 20 g | 500 × 400 | 1 × 15,000 |
| i-D61XWE150K1L7 | 150 kg | 10 g | i-D61XWE150K1L7-M | 50 g | 500 × 400 | 1 × 15,000 |
| i-D61XWE150K1L7-GB | 150 kg | 10 g | i-D61XWE150K1L7-M | 50 g | 500 × 400 | 1 × 15,000 |
Industry 4.0 Connectivity & Automation
- Built-in Interfaces: RS232 and USB Host standard on all models for immediate connectivity
- Wireless Communication: Optional Wi-Fi/Bluetooth dongle for remote monitoring and data collection
- Ethernet Integration: Network connectivity for real-time data sharing and remote scale management
- Discrete I/O with Relays: 2 input/4 output configuration for automated filling and sorting systems
- Analog Output: 4-20mA or 0-10V signals for PLC integration and process control
- Light Tower Compatible: 3-color visual indication system for operator guidance and quality control
- Alibi Memory: Secure data storage with tamper-evident logging for audit compliance
Advanced Weighing Applications

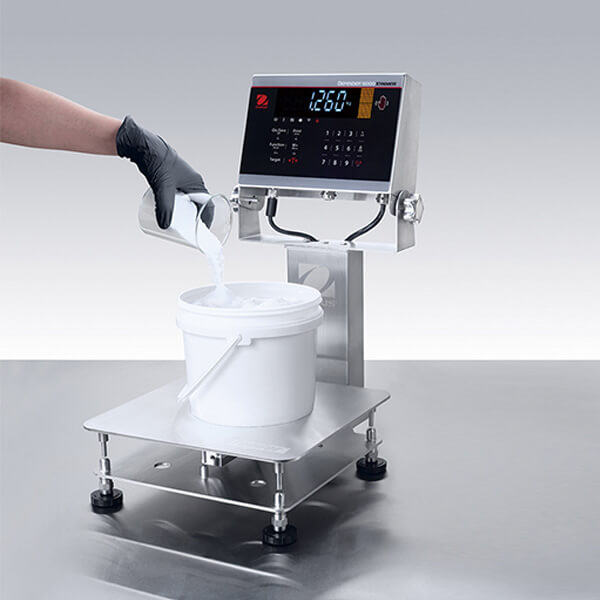

- Automated Filling Systems: Target-weight filling with visual guidance and relay control outputs
- Checkweighing Operations: High-speed over/under limit detection with immediate feedback
- Parts Counting: Advanced auto-optimization software for accurate piece counting applications
- Percent Weighing: Formulation and recipe control with reference weight comparisons
- Dynamic Weighing: Vibration compensation for unstable environments and moving objects
- Data Logging: Comprehensive traceability with time/date stamps and user identification
Technical Specifications & Compliance
- Operating Temperature: -10°C to 40°C (-14°F to 104°F) for reliable performance in varied conditions
- Stabilization Time: Less than 1 second for maximum productivity and efficiency
- Linearity/Repeatability: ±2d ensuring consistent, accurate measurements across the weighing range
- Overload Protection: 150% of maximum capacity prevents damage from accidental overloading
- Certifications: NSF/ANSI 169 certified, NSF/ANSI/3-A 14159-1 compliant, CE marked, RoHS compliant
- Ingress Protection: IP68 (immersion protection) and IP69K (high-pressure washdown protection)
- Column Options: 260mm and 670mm stainless steel columns available for optimal viewing angles
- Display: Backlit LCD with multi-colour status indicators and comprehensive weighing information
Comprehensive Accessories & Integration Options
- Wi-Fi/Bluetooth Dongle: Wireless connectivity for remote monitoring (Model: 30412537)
- Ethernet Kit: Network integration for centralized data management (Model: 30429666)
- Discrete I/O with Relays: Automation interface for filling and sorting systems (Model: 30097591)
- Analog Output Kit: 4-20mA/0-10V signals for PLC integration (Model: 30424403)
- Light Tower System: 3-color visual indication for operator guidance (Model: 30424021)
- Alibi Memory: Secure data logging with tamper-evident storage (Model: 80500503)
- Column Kits: 260mm and 670mm stainless steel options for elevated displays
- Extension Cables: 3.5m and 9m options for flexible indicator positioning
