OHAUS Incubating Rocking & Waving Shakers

The OHAUS Incubating Rocking and Waving Shakers are precision-engineered benchtop instruments designed for temperature-controlled incubation and gentle motion mixing. These models offer highly reproducible results with programmable tilt, speed and temperature settings even while operating, making them ideal for sensitive biological applications. Featuring digital microprocessor control, spill-resistant housing, and intuitive touchpad interfaces, these shakers deliver smooth and uniform motion – rocking in a controlled see-saw pattern or waving with a low-foaming three-dimensional wave.

Key Features

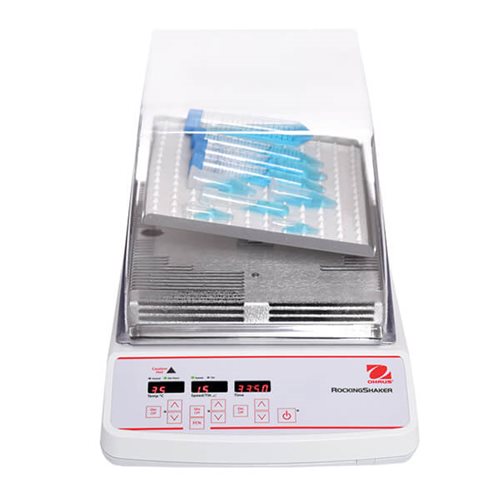

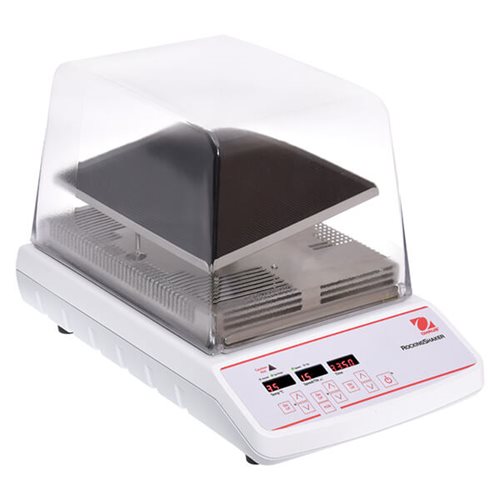

• Rocking Motion: 0–15° tilt range, speed 1–50 rpm (Model: ISRK04HDG)

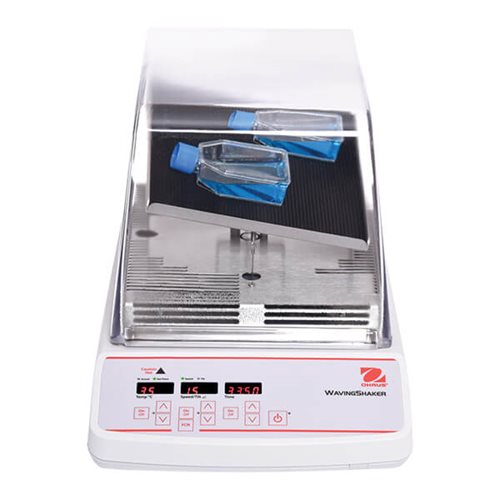

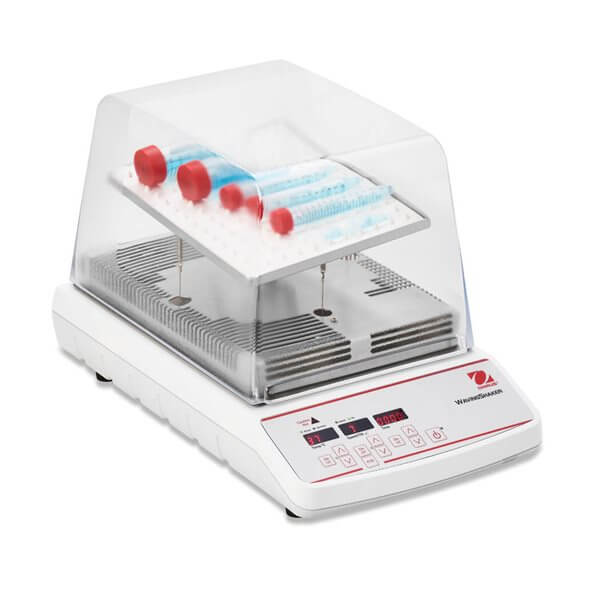

• Waving Motion: 0–20° tilt range, speed 1–30 rpm (Model: ISWV02HDG)
• Digital Display: Independent LED displays for time, temperature, and speed with intuitive touch controls
• Electronic Tilt Control: Adjust tilt angle by 1° increments, speed by 1 rpm, and temperature by 1°C while running
• Speed Ramping Feature: Smooth acceleration to avoid sample disturbance or splashing
• Integrated Timer: 1 second to 160 hours
• Quiet, Reliable Motor: Stepper motor drive for precision and durability

Technical Specifications

• Control: Digital
• Tray Size (L × W): Rocking: 254 × 191 mm, Waving: 235 × 184 mm
• Temperature Range: Ambient +5°C to 65°C
• Temperature Uniformity: ±0.5°C at 37°C
• Drive System: Stepper Motor
• Construction: Aluminium base, spill-resistant housing
• Net Weight: Rocking: 5.7 kg, Waving: 6.2 kg
• Power: 230 V, 1.87 A, 50/60 Hz
• Power Consumption: 420 W
• Working Environment: 5°C–40°C, 80% RH, non-condensing

Applications

• Hybridisations
• Cell cultures and staining
• Western blotting techniques
• Membrane incubations

Certifications

• CE, RCM, TÜV SÜD
• Electromagnetic Compatibility: EN 61326-1 Class A
• Product Safety: EN 61010-1, EN 61010-2-010, EN 61010-2-051

Included Equipment

• Detachable 3-wire cord and plug
• Caution hot indicator
• Spill-resistant design
