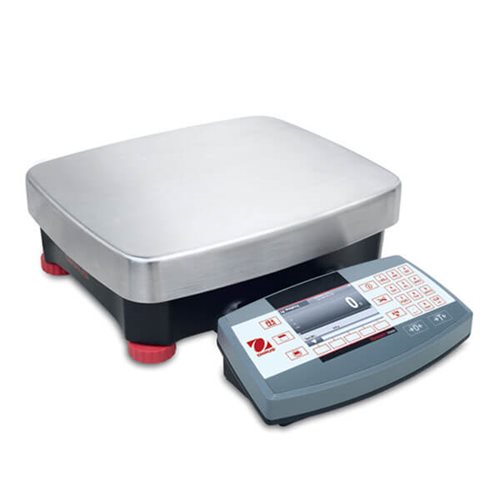

Ohaus Ranger 7000 Bench Scales
98000
Ohaus Ranger 7000 Bench Scales
98000
High-Resolution Weighing for Advanced Industrial Applications
The OHAUS Ranger 7000 Series is the ultimate solution for complex industrial weighing. With resolutions up to 350,000d, advanced application modes including sieve analysis, and robust metal construction, it excels in demanding environments. Featuring SmarText™ 2.0, AutoCal™, and up to 12 hours of battery operation, the Ranger 7000 delivers outstanding performance and ease of use.

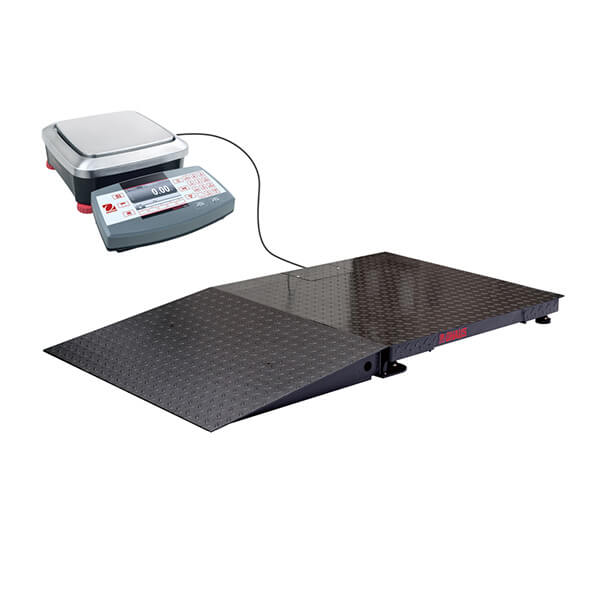

Choose from a wide range of capacities (3 kg to 60 kg) and certified models with legal-for-trade accuracy. With the ability to connect a second platform and full peripheral control, this scale redefines flexibility and precision.
Key Features
- Ultimate Precision: Up to 350,000d resolution with 1-second stabilisation and AutoCal™ on high-resolution models
- Rugged Build: IP54-rated metal housing with die-cast construction for industrial reliability
- Flexible Applications: Includes Formulation, Sieve Analysis, Differential, Checkweighing, Dynamic Weighing & more

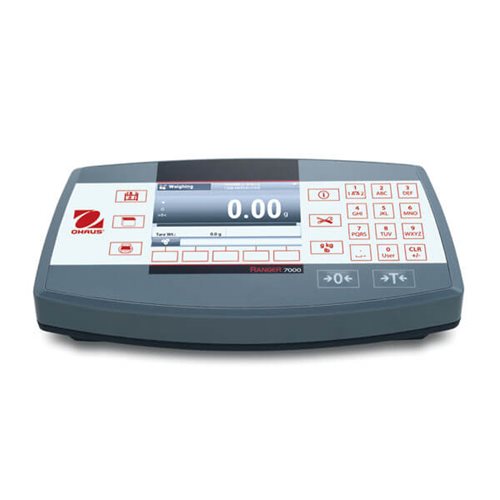

- Advanced Interface: SmarText™ 2.0 with 109 mm TFT graphic display and intuitive menu guidance
- Full Connectivity: Standard USB/RS232 with optional Ethernet, 2nd RS232, discrete I/O, and barcode scanner support
- Data Storage: Up to 2,000 items and multi-level user management with password protection
Model Comparison
| Model | Capacity (kg) | Readability (g) | Certified Model | Certified Readability | Pan Size (mm) |
|---|---|---|---|---|---|
| R71MD3 | 3 | 0.05 | R71MD3-M | 0.5 | 280 × 280 |
| R71MD6 | 6 | 0.1 | R71MD6-M | 1 | 280 × 280 |
| R71MD15 | 15 | 0.2 | R71MD15-M | 2 | 377 × 311 |
| R71MD35 | 35 | 0.5 | R71MD35-M | 5 | 377 × 311 |
| R71MD60 | 60 | 1 | R71MD60-M | 10 | 377 × 311 |
| R71MHD3 | 3 | 0.01 | R71MHD3-M | 0.1 | 210 × 210 |
| R71MHD6 | 6 | 0.02 | R71MHD6-M | 0.2 | 210 × 210 |
| R71MHD15 | 15 | 0.1 | R71MHD15-M | 1 | 377 × 311 |
| R71MHD35 | 35 | 0.1 | R71MHD35-M | 1 | 377 × 311 |
Additional Information
- Display: 109 mm TFT colour graphic LCD
- Stabilisation: Results in just 1 second
- Battery: Optional rechargeable Li-ion; 9–12 hours operation
- Operating Temperature: -10°C to 40°C
- Compliance: OIML R76, EN 45501, CE, FCC, ISO 9001
