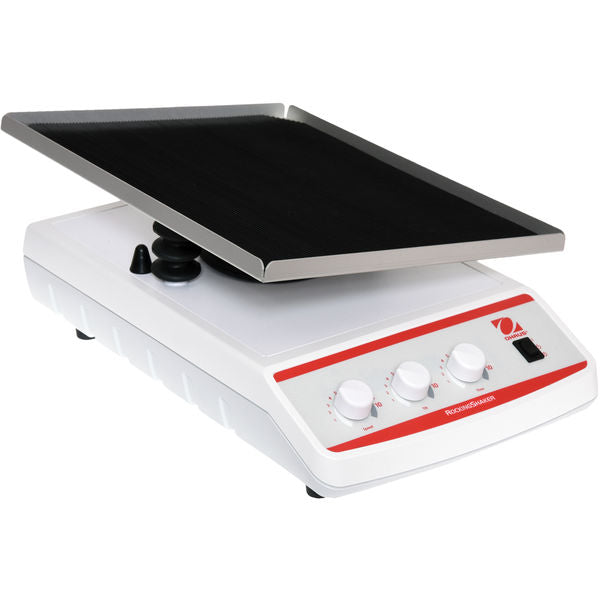

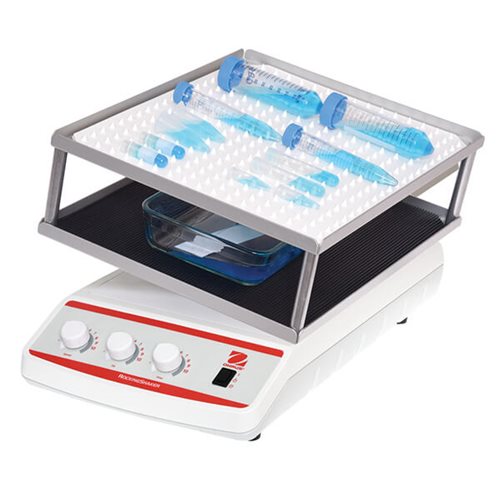

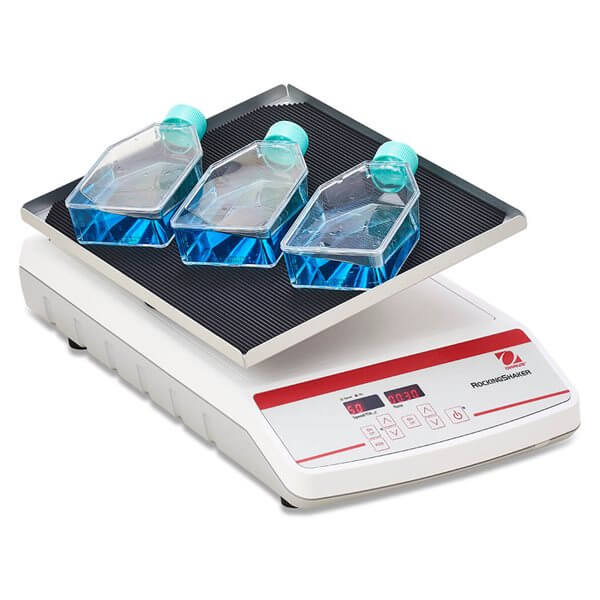

Analogue & Digital Lab Mixers

OHAUS Rocking and Waving Shakers are premium lab mixers designed for reliable, low-foaming motion in sensitive applications like DNA extraction, gel staining, blotting, and blood sample mixing. Available in both analogue and digital models, these shakers deliver smooth seesaw or 3D wave motion with precise speed and tilt angle control. Digital models offer programmable timers and intuitive touchpad controls, while all models include non-slip mats and overload protection. Optional stacking trays available for increased capacity.


Key Features

  • Motion Types: Rocking (0–15°), Waving (0–20°)
  • Speed Range: 1–75 rpm (digital) / 1–50 rpm (analogue)
  • Speed Accuracy: ±1 rpm (digital)
  • Timer: Digital: 1 sec–160 hrs | Analog: 1–120 mins
  • Capacity: 2.3 kg to 7.3 kg depending on model
  • Drive: Advanced stepper motor with optimal speed ramping
  • Tray Construction: Durable aluminium with non-slip mat
  • Environment: -10 °C to +60 °C, 80% RH (non-condensing)
  • Power: 230V, 50/60 Hz (15–25 W)

Models & Specifications

Model Control Motion Capacity Dimensions (mm)
SHRK07AL1 Analog Rocking 7.3 kg 425×279×165
SHRK07AL2 Analog Rocking (2-tier) 7.3 kg 425×279×241
SHRK04DG Digital Rocking 4.5 kg 425×254×140
SHWV02AL Analog Waving 2.3 kg 425×279×165
SHWV02DG Digital Waving 2.3 kg 432×279×152

Certifications & Safety

  • Product Safety: EN 61010-1, EN 61010-2-051
  • EMC Compliance: EN 61326-1 Class A
  • Approvals: CE, RCM, TÜV SÜD
  • ISO 9001:2015 certified manufacturing

Application Areas

  • DNA/RNA extraction
  • Blood sample mixing
  • Gel staining and destaining
  • Blotting and hybridizations
