Force-distance evaluation software with graphic display of the measuring process (only in combination with Sauter LB)

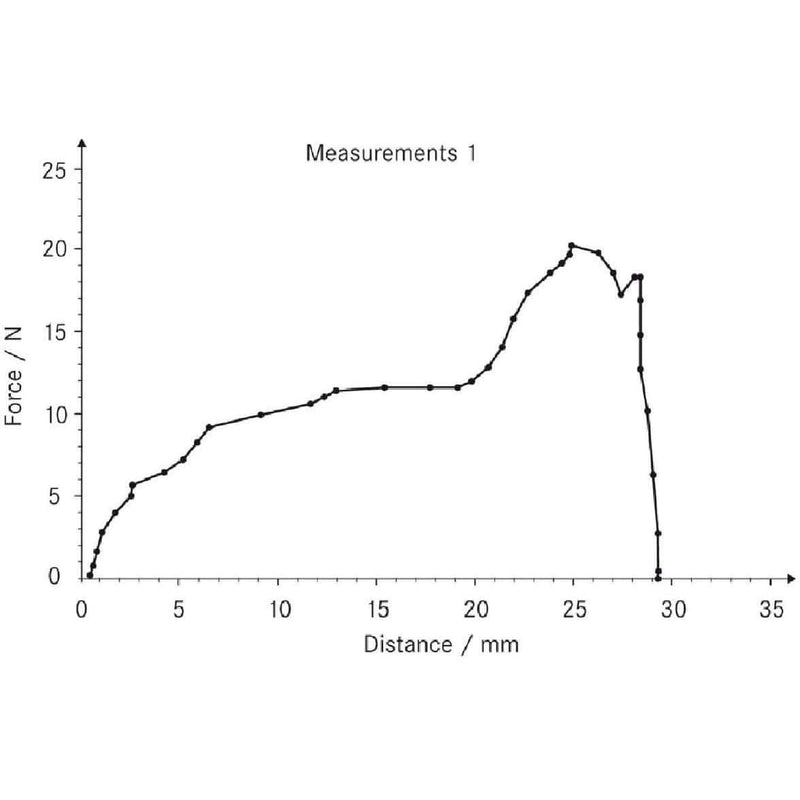

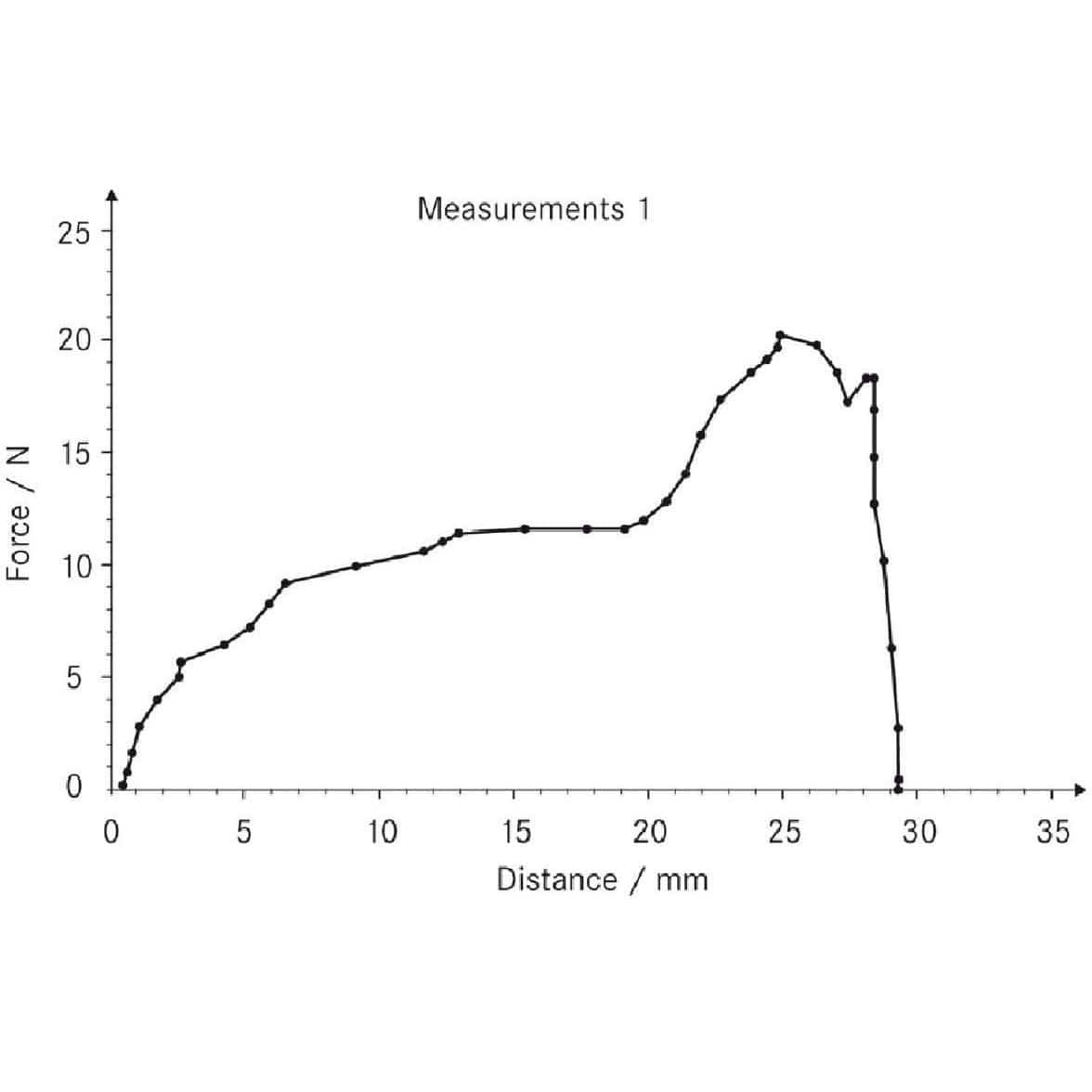

AFH FD software is designed for all applications that require the measurement of forces, depending on the displacement. Typically these are force progression graphs in penetration tests or pullout tests
The program simultaneously requests the measurements from a force-measuring device, e. g. SAUTER FH, as well as a length-measuring device, e.g. SAUTER LB
The measurements from both instruments are transferred continuously to the PC, synchronised by the AFH LD software and exported in the form of a graphic, as well as free data format for simple processing in Microsoft Excel
The software AFH FD is compatible with all devices in the ranges SAUTER FC, FH, FL
Other devices are not supported at this time, but may be included on request
These measuring instruments are usually used with SAUTER test stands, in particular those from the SAUTER TVM-N range. However, it is also possible to use them with other mechanical testing machines
Further analysis functions:
- Dimensions of the test object
- Tensile and compressive force
- Load test
- Archiving the recorded data
Scope of delivery SAUTER AFH FD:
- AFH FD software on DVD
- User manual
- Software licence
- PC connection cable LB-A01 (RS-232 to LB)
- PC connection cable FH-A01 (RS-232 to FH)
Order example for a complete test system:
- FH 5K. (Digital force gauge)
- LB 300-2. (Digital length measuring device)
- AFH FD (Force-deflection software)
- TVM 5000N230N.* (Test stand)
- LB-A02* (Mounting LB on test stand)
- 2 × AFH 12* (Y-USB converter)
- AC 04* (Test object holder)
- 961-163* (Force calibration)
- 961-150* (Length calibration)
* not necessarily required for operating the AFH FD software
Data recording rate max. 3 Hz (specially in combination with SAUTER FH and SAUTER LB)
