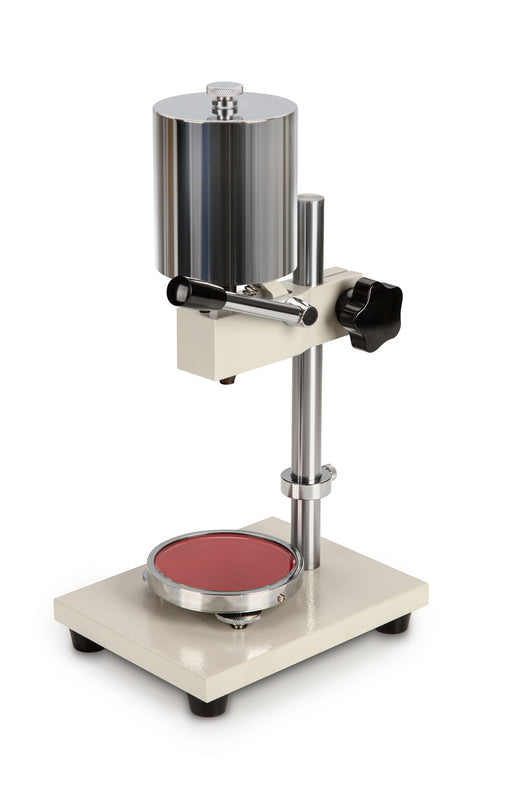

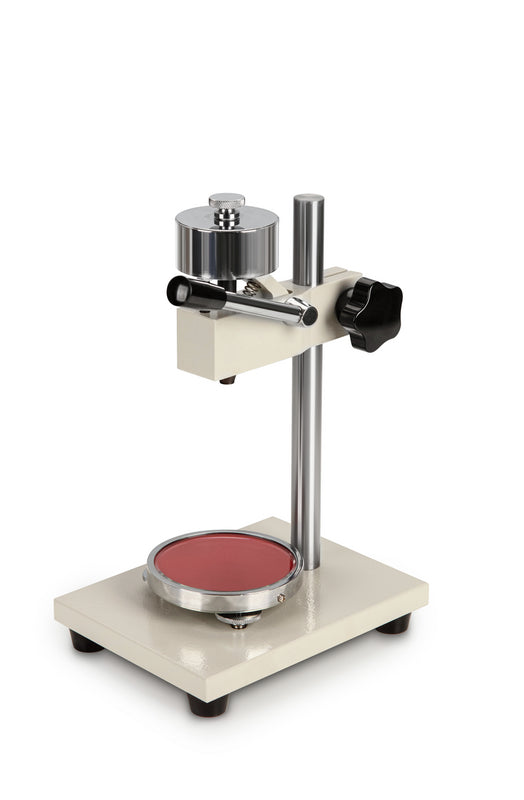

The Sauter TI manual test stand is suitable for use with the HB and HD hardness testers. It allows for a more repeatable test of materials due to the compression force of the test being the same every time.

  • For Shore hardness testing of plastics, leather etc.

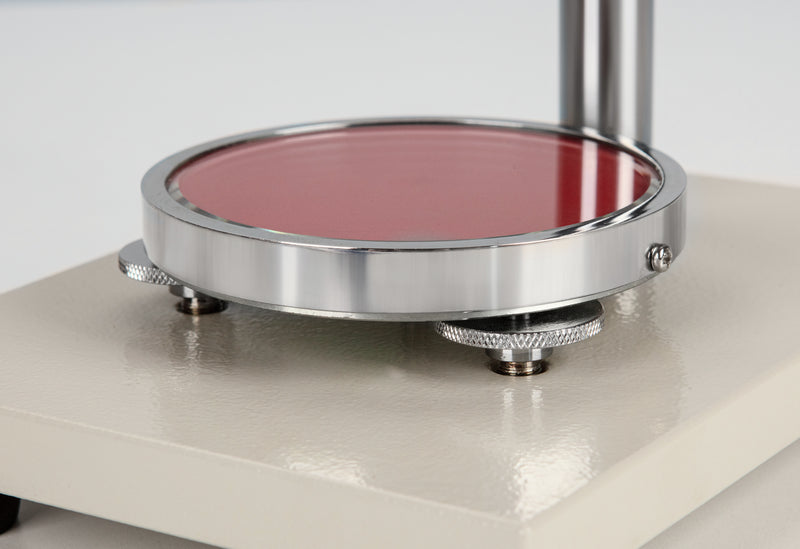

  • Glass plate: Providing a higher base hardness and superior accuracy
  • Mechanical construction: Robust design for precise measuring
  • Level adjustment: For the precise levelling of the base plate
  • SAUTER test bench TI-DL, with interchangeable, longer guide column for digital hardness testers HD
  • Hardness tester not included

Operation:

  • The Sauter hardness testing device is fitted in a suspended position
  • The test object is placed on the round testing table right under the durometer pin
  • By lowering the handle lever, the measurement instrument is pressed in a controlled manner into the test object
  • The accuracy of the displayed result is approx. 25 % higher than in a manual operated test

Click here for full specification

Model Suitable For
Column Height
Adjusting Weight

[mm]
[kg]
TI-AC HBA, HB0
245
1
TI-D HBD
245
5
TI-ACL HDA, HD0
300
1
TI-DL HDD 300 5
