TLB Ethernet TCP / IP Weight Transmitter - GNW Instrumentation

TLB Ethernet TCP / IP Weight Transmitter

Q: What applications benefit from TCP/IP weighing connectivity?

TCP/IP connectivity allows weighing systems to be monitored across industrial networks.

Q: Can TCP/IP systems support remote commissioning?

Yes, TCP/IP connectivity supports remote access and commissioning functions.

Q: What industries use TCP/IP weighing systems?

TCP/IP systems are used wherever remote supervision is beneficial.

Q: What are the benefits of TCP/IP connectivity?

TCP/IP enables network connectivity and remote management capabilities.

TLB Ethernet TCP/IP Weight Transmitter Overview

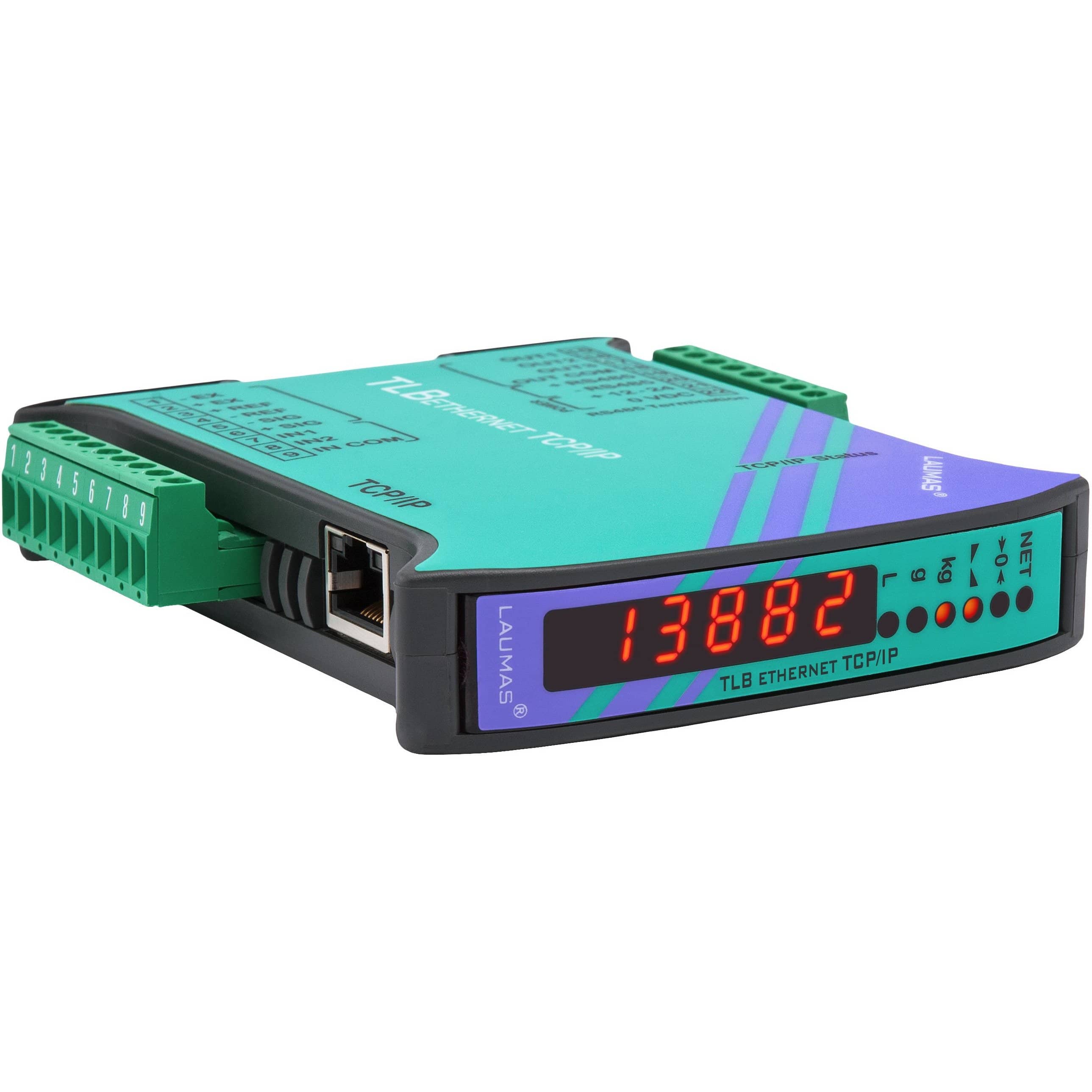

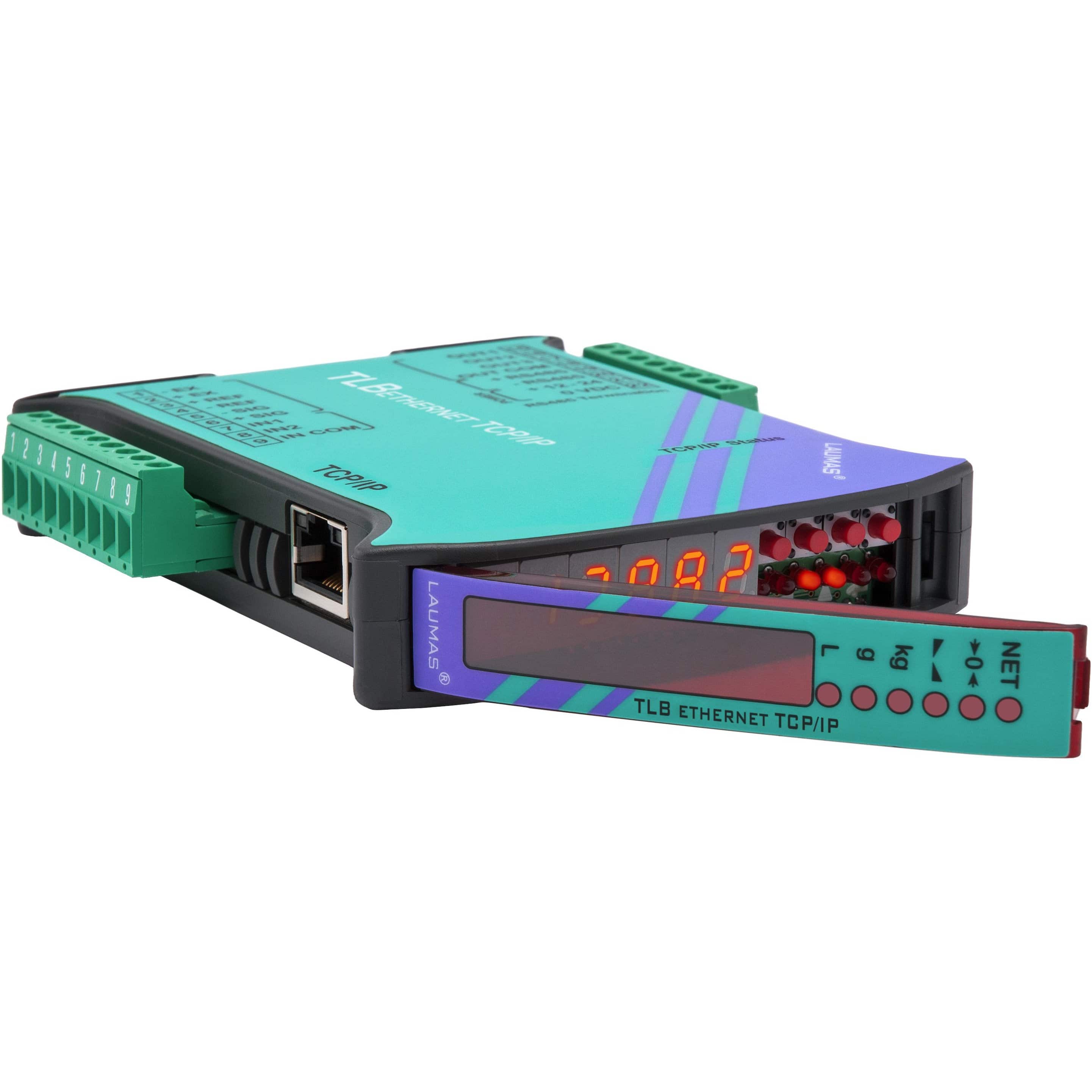

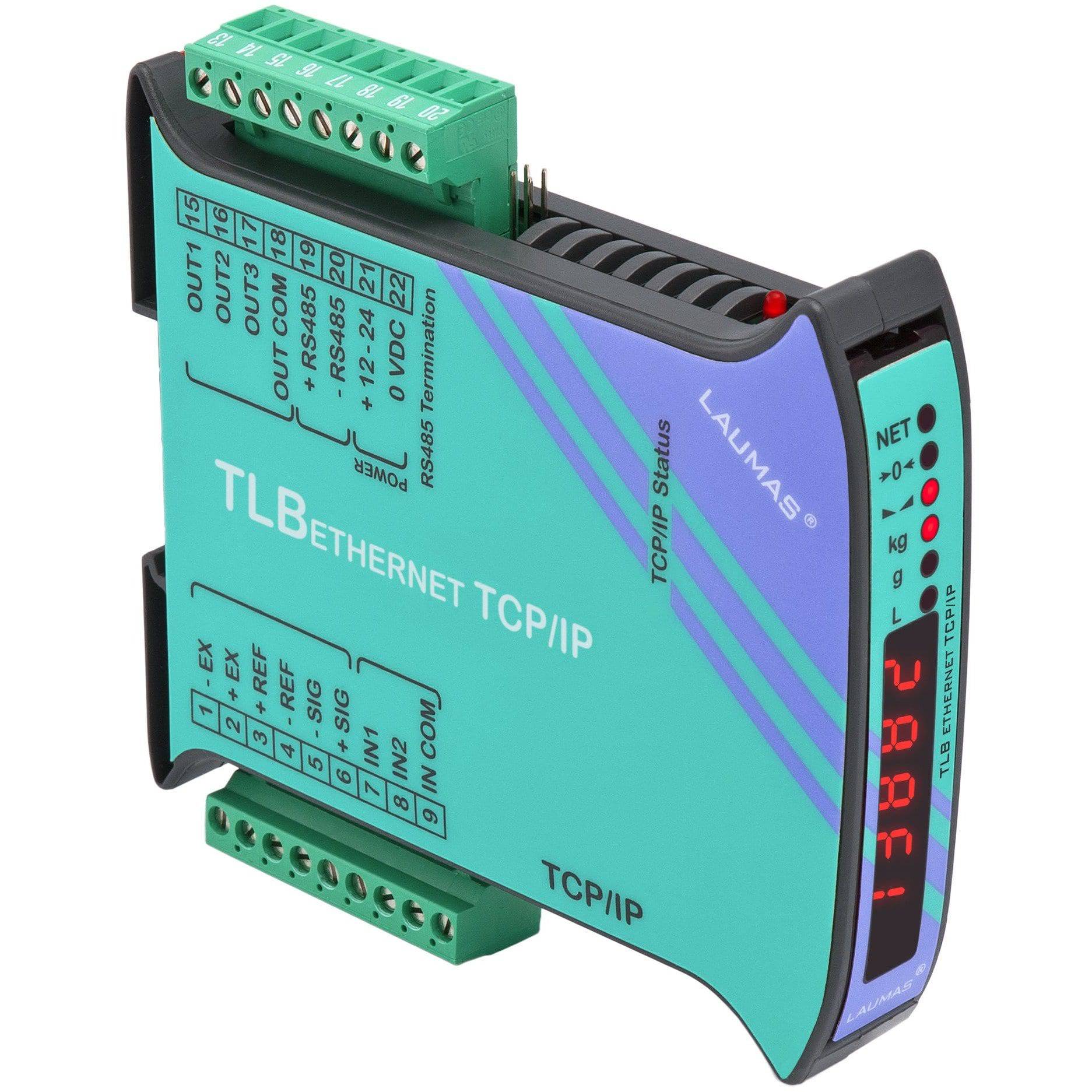

The Laumas TLB Ethernet TCP/IP Weight Transmitter provides network connectivity for load cell weighing systems requiring TCP/IP communication. It supports remote access and integration into industrial monitoring environments.

Used in tanks, hoppers, platforms and process systems, the TLB Ethernet TCP/IP helps connect weighing data to networked control and supervision systems.

Model: TLBETHETCP

Quantity:

£398.00

View Technical Data Sheet (PDF)

Laumas TLB Ethernet TCP / IP Weight Transmitter

£398.00

Learn more

Product specification

Compare model specifications.

Learn More

Technical Specification

Output

1 x Ethernet TCP/IP port

Input Range

±39 mV

Number Of Load Cells

1

Excitation Voltage

5 VDC / 120 mA

Accuracy

<0.01% full scale

Digital Inputs

2 x 5 to 24 VDC PNP

Relay Outputs

3 x 115 VAC / 150 mA (max)

Mounting

DIN Rail

Serial Connection

RS485

Analogue / Digital Converter

24 bit (16000000 points) - 4.8 kHz

OIML Certification

OIML R76:2006, class III, 3x10000 divisions, 0.2uV/VSI / OIML R61 - WELMEC Guide 8.8:2011 (MID)

Learn more

Applications

Industrial Weighing Systems

Suitable for industrial tank weighing systems requiring TCP/IP connectivity.

Hopper & Silo Monitoring

Used for hopper and silo monitoring where TCP/IP connectivity is required.

PLC Based Process Control

Provides weighing data to PLC-controlled production and process systems.

Machine Builder Integration

Ideal for machine builders integrating weighing functions into industrial equipment.

Features

Networked Weighing Connectivity

Provides TCP/IP network connectivity for remote weighing and monitoring systems.

Industrial Automation Integration

Allows weighing data to be integrated directly into automated industrial processes.

Industrial Network Communications

Supports communication between weighing equipment and automation infrastructure.

Process Control Connectivity

Supports seamless transfer of weighing data into production and automation systems.

FAQs

What applications benefit from TCP/IP weighing connectivity?

TCP/IP connectivity allows weighing systems to be monitored across industrial networks.

Can TCP/IP systems support remote commissioning?

Yes, TCP/IP connectivity supports remote access and commissioning functions.

What industries use TCP/IP weighing systems?

TCP/IP systems are used wherever remote supervision is beneficial.

What are the benefits of TCP/IP connectivity?
