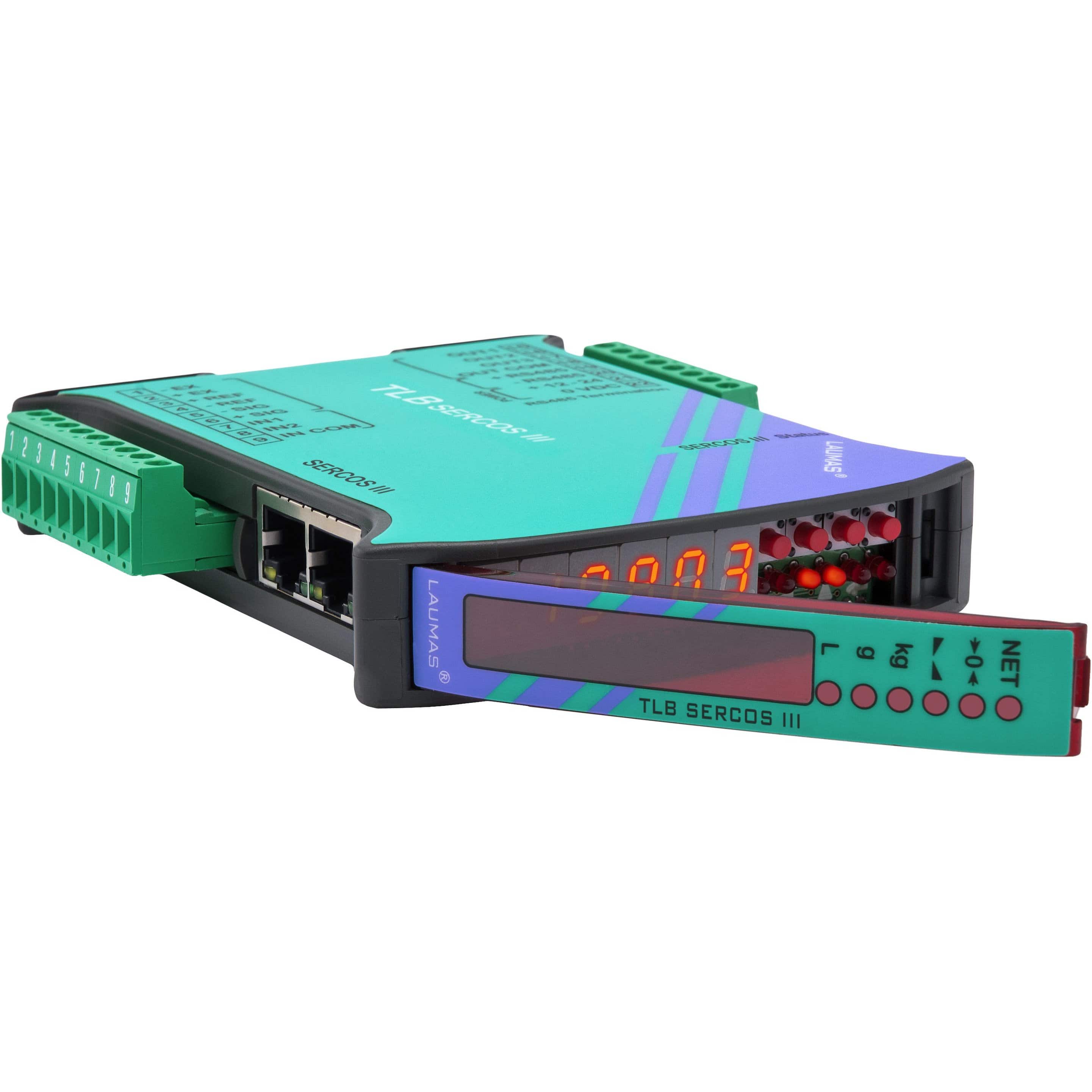

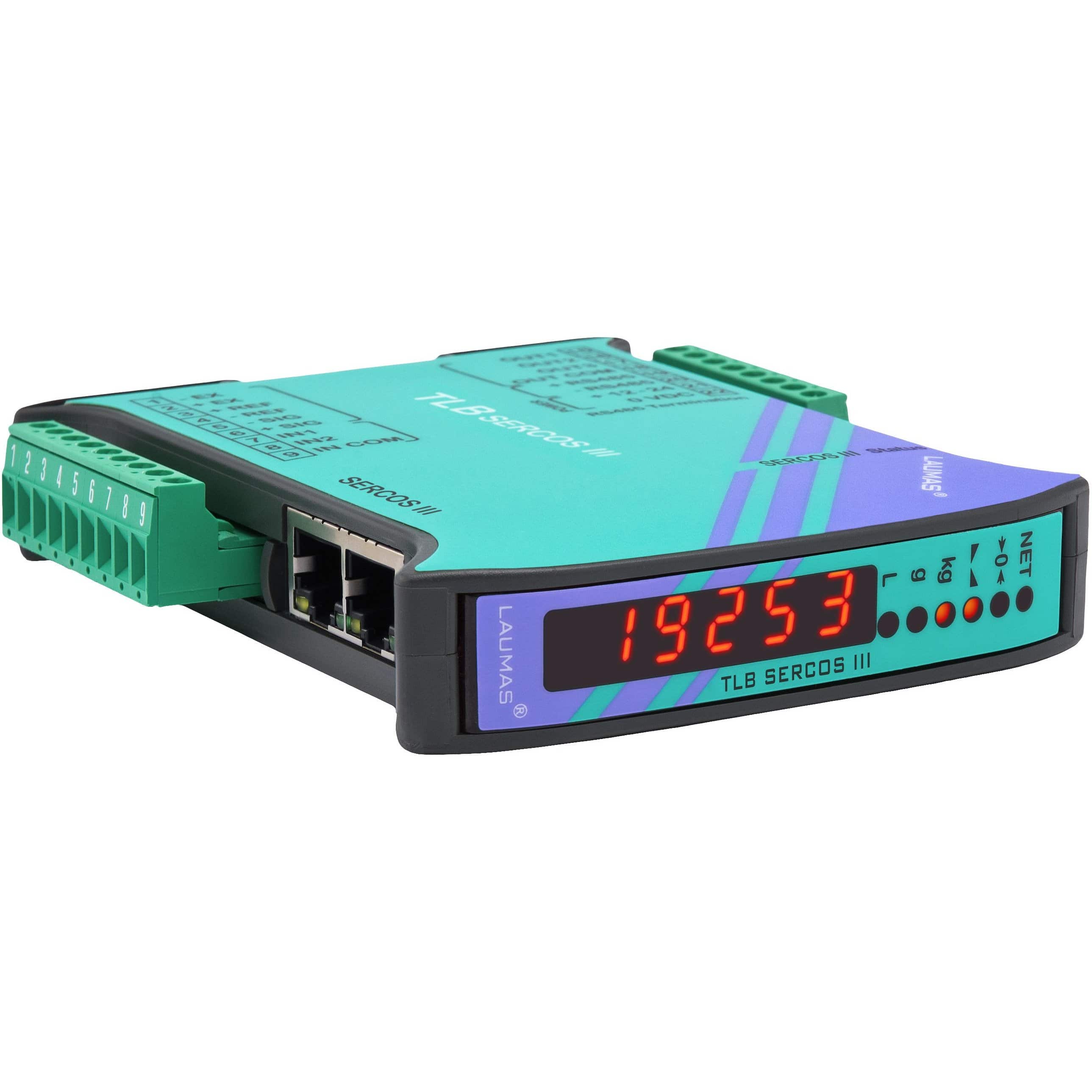

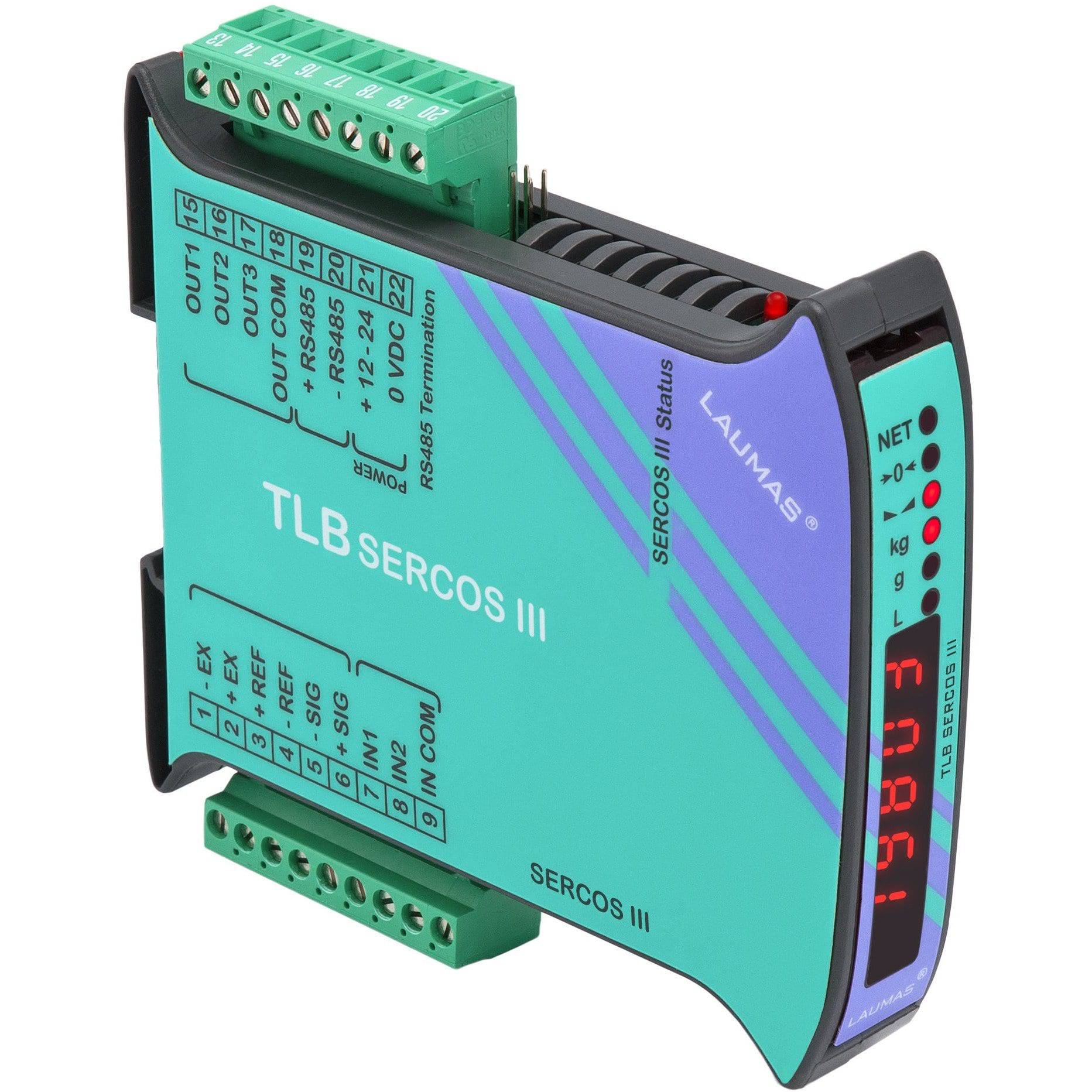

High-Performance Weight Transmitter for SERCOS III Networks

The Laumas TLB SERCOS III Weight Transmitter is engineered for precise, high-speed weight data transmission in SERCOS III industrial networks. With DIN rail mounting and compatibility with 4- or 6-wire load cells, it integrates seamlessly into advanced motion control and automation systems.

This transmitter offers high sampling rates, rapid data processing, and stable readings — ideal for machine builders and OEMs using SERCOS III protocols.

Key Features

• SERCOS III Interface: For deterministic, high-speed industrial Ethernet communication
• Load Cell Input: 1 × 350 Ω load cell (4- or 6-wire)
• Fast Sampling: Up to 2400 measurements per second
• Precise Filtering: Configurable digital filtering for signal stability
• Compact Design: Space-saving DIN rail ABS housing
• Flexible Calibration: Supports theoretical or standard weight calibration

Technical Specifications

• Power Supply: 12–24 VDC ±10%
• Input Range: ±39 mV max
• Excitation Voltage: 5 VDC (max 120 mA)
• Output: SERCOS III (industrial Ethernet)
• Resolution: Up to ±50,000 display divisions
• Operating Temperature: -10 °C to +40 °C
• Mounting: DIN rail
